895-057 Series
Manufacturer: EDAC Inc.
Beta
⌘K

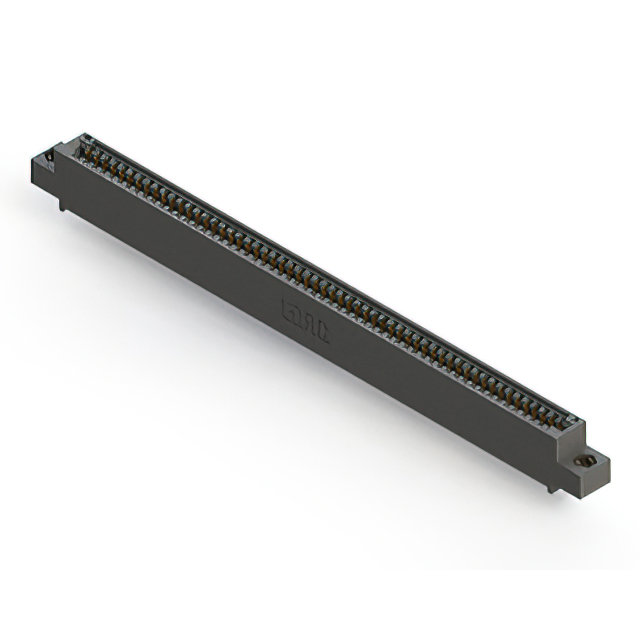

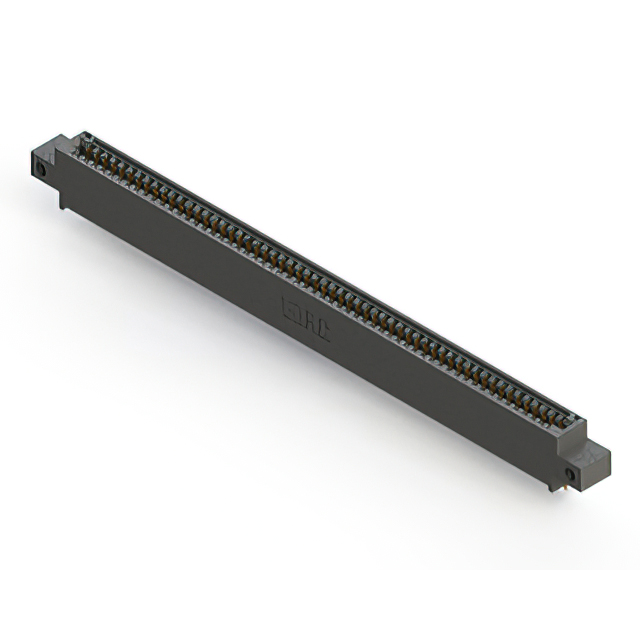

CONN EDGE SINGLE FML 57POS 0.100
| Part | Termination Rows | Material - Insulation | Mounting Type | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows | Contact Material | Read Out | Contact Finish Thickness | Contact Finish Thickness | Card Type | Number of Positions | Color | Pitch | Pitch | Number of Positions/Bay/Row [custom] | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Through Hole | Female | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 1 | Copper Alloy | Single | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 57 | Black | 0.1 " | 2.54 mm | 57 | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Solder |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Through Hole | Female | 0.128 " | 3.25 mm | 1 | Copper Alloy | Single | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 57 | Black | 0.1 " | 2.54 mm | 57 | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Solder | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Through Hole | Female | 1 | Copper Alloy | Single | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 57 | Black | 0.1 " | 2.54 mm | 57 | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Solder Eyelet(s) | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Through Hole | Female | M3 Threaded Insert Top Mount Opening | 1 | Copper Alloy | Single | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 57 | Black | 0.1 " | 2.54 mm | 57 | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Solder Eyelet(s) | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Through Hole | Female | 4-40 Threaded Insert Top Mount Opening | 1 | Copper Alloy | Single | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 57 | Black | 0.1 " | 2.54 mm | 57 | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Wire Wrap | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Through Hole | Female | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 1 | Copper Alloy | Single | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 57 | Black | 0.1 " | 2.54 mm | 57 | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Wire Wrap |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Through Hole | Female | 0.128 " | 3.25 mm | 1 | Copper Alloy | Single | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 57 | Black | 0.1 " | 2.54 mm | 57 | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Solder Eyelet(s) | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Through Hole | Female | M3 Threaded Insert Top Mount Opening | 1 | Copper Alloy | Single | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 57 | Black | 0.1 " | 2.54 mm | 57 | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Solder | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Through Hole | Female | 0.128 " | 3.25 mm | 1 | Copper Alloy | Single | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 57 | Black | 0.1 " | 2.54 mm | 57 | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Wire Wrap | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Through Hole | Female | 0.128 " | 3.25 mm | 1 | Copper Alloy | Single | 0.25 Ám | 10 Áin | Non Specified - Single Edge | 57 | Black | 0.1 " | 2.54 mm | 57 | Cantilever | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Solder |
