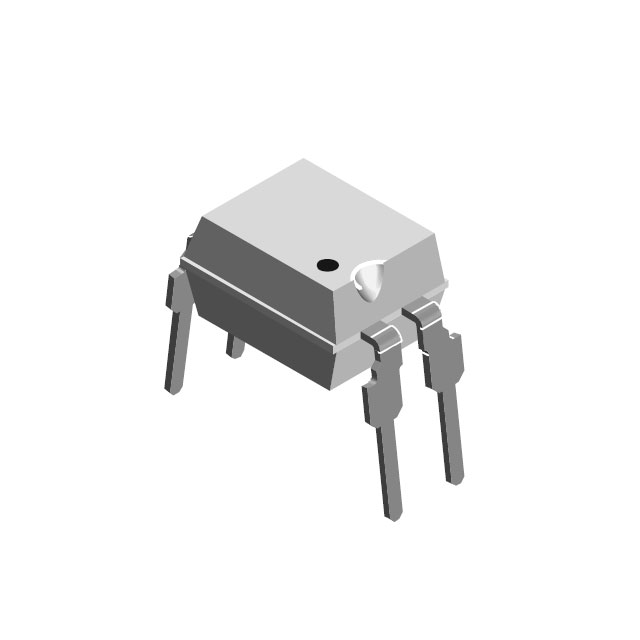

TCED1100 Series

Catalog

OPTOISOLATOR 5KV TRANS 4DIP

Part	Input Type	Vce Saturation (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Channels	Voltage - Output (Max) [Max]	Supplier Device Package	Mounting Type	Current Transfer Ratio (Min) [Min]	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Output Type	Package / Case
Vishay General Semiconductor - Diodes Division TCED1100	DC	1 V	60 mA	250 µs	300 µs	1	35 V	4-DIP	Through Hole	600 %	80 mA	100 °C	-40 °C	1.15 V	1.81 mOhm	4-DIP (0.300" 7.62mm)
