044620 Series
Manufacturer: Molex
Beta
⌘K

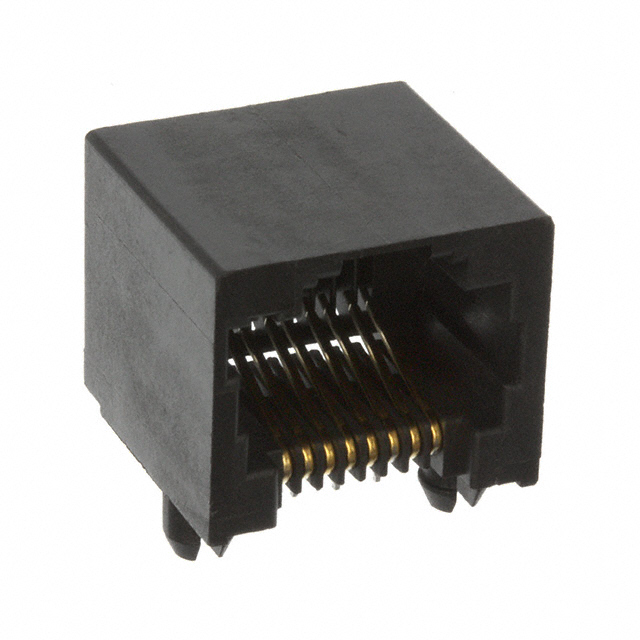

CONN MOD JACK 8P8C R/A SHIELDED
| Part | LED Color | Number of Positions/Contacts | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Connector Type | Ratings | Housing Material | Shielding | Contact Material | Orientation | Contact Finish Thickness | Contact Finish Thickness | Features | Tab Direction | Number of Rows | Number of Ports | Contact Finish | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Does Not Contain LED | 8p8c (RJ45 Ethernet) | 85 °C | -40 °C | Solder | Jack | Cat3 | Polyamide (PA) Nylon Glass Filled | Shielded EMI Finger | Phosphor Bronze | 90 ° | 50 µin | 1.27 µm | Board Lock Keyed | Up | 1 | 1 | Gold | Through Hole |
Molex | Does Not Contain LED | 8p8c (RJ45 Ethernet) | 85 °C | -40 °C | Solder | Jack | Cat3 | Polyamide (PA) Nylon Glass Filled | Shielded EMI Finger | Phosphor Bronze | 90 ° | 50 µin | 1.27 µm | Up | 1 | 1 | Gold | Through Hole | |
 Molex | Does Not Contain LED | 8p8c (RJ45 Ethernet) | 85 °C | -40 °C | Solder | Jack | Cat3 | Polyamide (PA) Nylon Glass Filled | Unshielded | Phosphor Bronze | 90 ° | 50 µin | 1.27 µm | Board Lock Keyed | Up | 1 | 1 | Gold | Through Hole |
