RS2BE Series

Manufacturer: Adam Tech

Catalog

CONN SOCKET STRIP SKT 10 POS 2.54MM SOLDER ST SMD

Part	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Number of Rows [custom]	Insulation Color	Insulation Height [z]	Insulation Height [z]	Contact Type	Number of Positions	Fastening Type	Material Flammability Rating	Connector Type	Current Rating (Amps)	Mounting Type	Contact Finish - Mating	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Pitch - Mating	Pitch - Mating

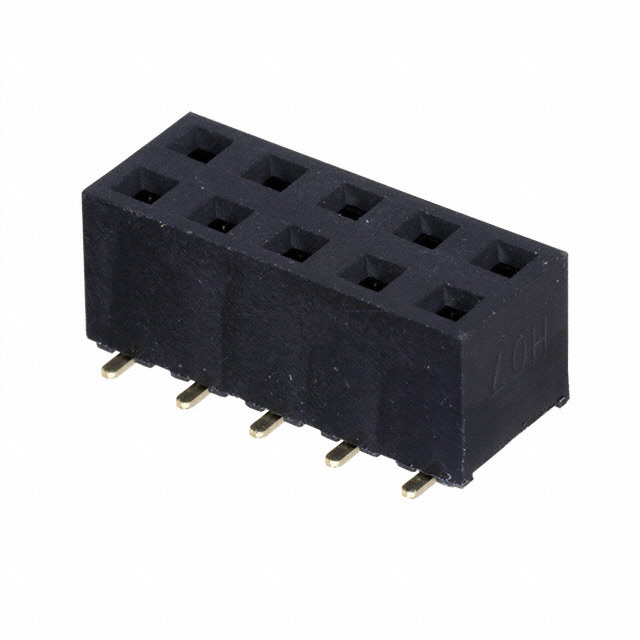

Adam Tech RS2BE-10-G-SMT	Flash	Phosphor Bronze	Thermoplastic	Square	-40 C	105 ░C	All	2	Black	0.198 in	5.03 mm	Female Socket	10	Push-Pull	UL94 V-0	Receptacle Bottom Entry Pass Through	3 A	Surface Mount	Gold	250 VAC	Flash	Gold	0.1 in	2.54 mm	Solder	0.1 "	2.54 mm
Adam Tech RS2BE-12-G-SMT	Flash	Phosphor Bronze	Thermoplastic	Square	-40 C	105 ░C	All	2	Black	0.198 in	5.03 mm	Female Socket	12	Push-Pull	UL94 V-0	Receptacle Bottom Entry Pass Through	3 A	Surface Mount	Gold	250 VAC	Flash	Gold	0.1 in	2.54 mm	Solder	0.1 "	2.54 mm

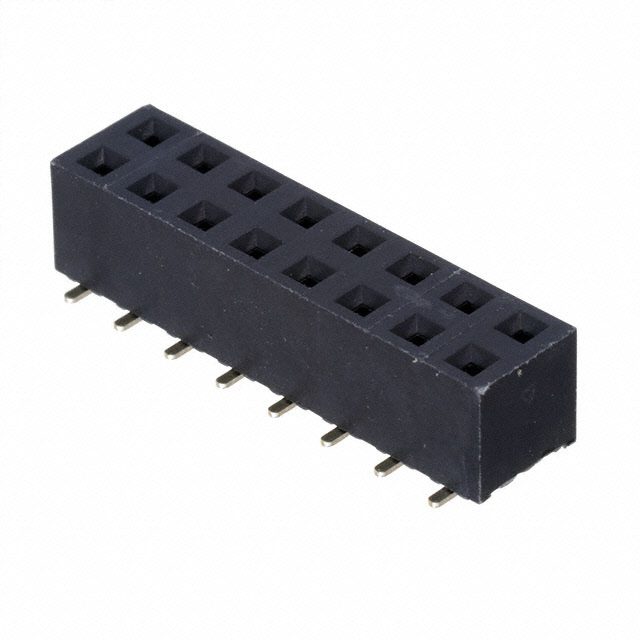

Adam Tech RS2BE-16-G-SMT	Flash	Phosphor Bronze	Thermoplastic	Square	-40 C	105 ░C	All	2	Black	0.198 in	5.03 mm	Female Socket	16	Push-Pull	UL94 V-0	Receptacle Bottom Entry Pass Through	3 A	Surface Mount	Gold	250 VAC	Flash	Gold	0.1 in	2.54 mm	Solder	0.1 "	2.54 mm

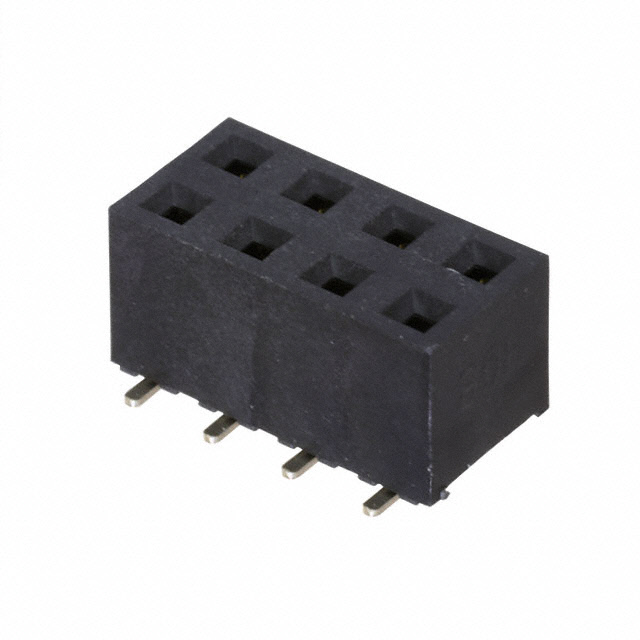

Adam Tech RS2BE-08-G-SMT	Flash	Phosphor Bronze	Thermoplastic	Square	-40 C	105 ░C	All	2	Black	0.198 in	5.03 mm	Female Socket	8	Push-Pull	UL94 V-0	Receptacle Bottom Entry Pass Through	3 A	Surface Mount	Gold	250 VAC	Flash	Gold	0.1 in	2.54 mm	Solder	0.1 "	2.54 mm

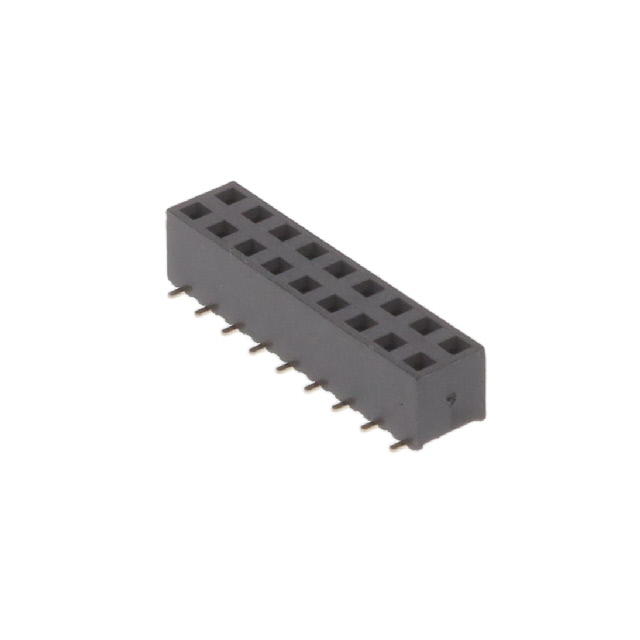

Adam Tech RS2BE-18-G-SMT	Flash	Phosphor Bronze	Thermoplastic	Square	-40 C	105 ░C	All	2	Black	0.198 in	5.03 mm	Female Socket	18	Push-Pull	UL94 V-0	Receptacle Bottom Entry Pass Through	3 A	Surface Mount	Gold	250 VAC	Flash	Gold	0.1 in	2.54 mm	Solder	0.1 "	2.54 mm
Adam Tech RS2BE-06-G-SMT	Flash	Phosphor Bronze	Thermoplastic	Square	-40 C	105 ░C	All	2	Black	0.198 in	5.03 mm	Female Socket	6	Push-Pull	UL94 V-0	Receptacle Bottom Entry Pass Through	3 A	Surface Mount	Gold	250 VAC	Flash	Gold	0.1 in	2.54 mm	Solder	0.1 "	2.54 mm
