1069A Series
Manufacturer: Belden Inc.
Beta
⌘K

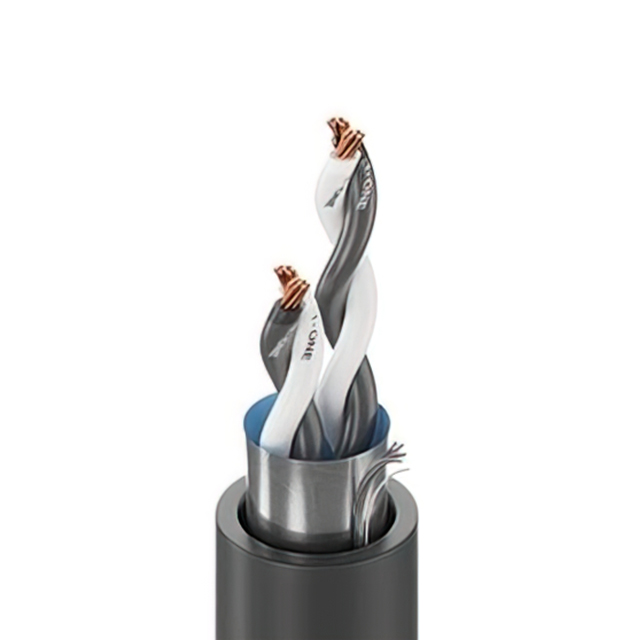

MULTI-PAIR 4COND 16AWG BLK
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket (Insulation) Material | Features | Jacket Color | Length | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Insulation | Conductor Insulation | Conductor Material | Wire Gauge | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 10.67 mm | 0.42 in | Multi-Pair | 7 | 24 AWG | Foil | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Black | 2286 m | 7500 ft | 1.219 mm | 0.048 in | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | Copper Bare | 16 AWG | 4 |
