1969593 Series

Catalog

CONN RCPT HSG 28POS 2.50MM

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing	Row Spacing	Contact Termination	Number of Rows	Mounting Type	Color	Fastening Type	Insulation Material	Number of Positions	Contact Type	Pitch [x]	Pitch [x]	Note

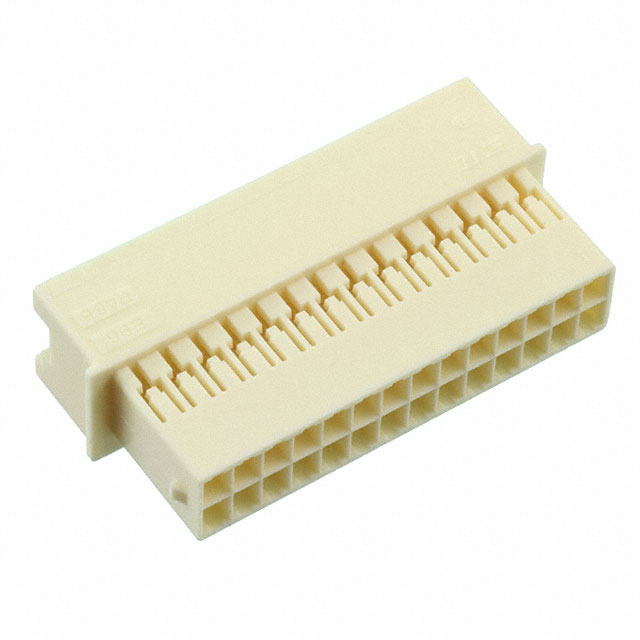

TE Connectivity Raychem Cable Protection 2-1969593-8	Receptacle	105 ░C	-55 °C	0.098 in	2.5 mm	Crimp	2	Free Hanging (In-Line)	Natural	Latch Holder	Nylon Polyamide (PA)	28	Male Pin	0.098 in	2.5 mm	Contacts Not Included
TE Connectivity Raychem Cable Protection 3-1969593-6	Receptacle	105 ░C	-55 °C	0.098 in	2.5 mm	Crimp	2	Free Hanging (In-Line)	Natural	Latch Holder	Nylon Polyamide (PA)	36	Male Pin	0.098 in	2.5 mm	Contacts Not Included

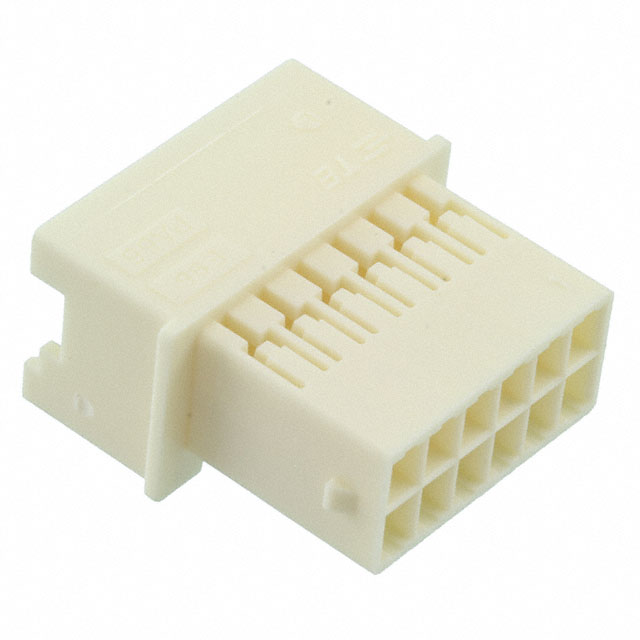

TE Connectivity Raychem Cable Protection 1-1969593-2	Receptacle			0.098 in	2.5 mm	Crimp	2	Free Hanging (In-Line)	Natural	Latch Holder	Nylon Polyamide (PA)	12	Male Pin	0.098 in	2.5 mm	Contacts Not Included

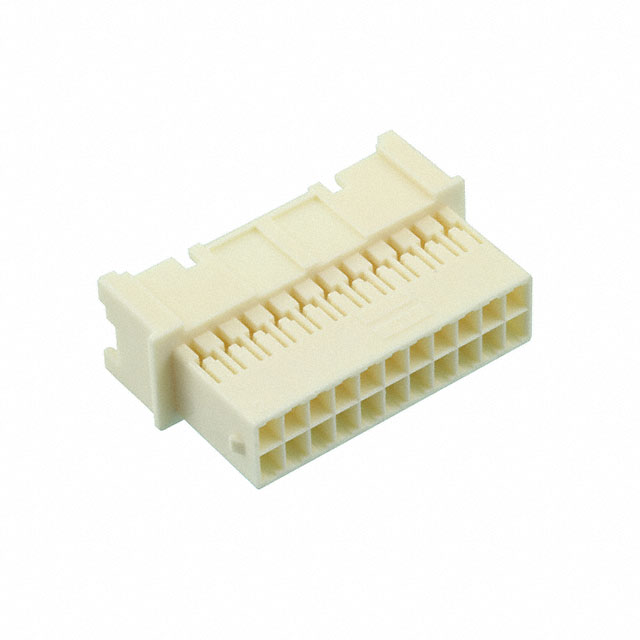

TE Connectivity Raychem Cable Protection 2-1969593-2	Receptacle	105 ░C	-55 °C	0.098 in	2.5 mm	Crimp	2	Free Hanging (In-Line)	Natural	Latch Holder	Nylon Polyamide (PA)	22 positions	Male Pin	0.098 in	2.5 mm	Contacts Not Included
TE Connectivity Raychem Cable Protection 3-1969593-4	Receptacle	105 ░C	-55 °C	0.098 in	2.5 mm	Crimp	2	Free Hanging (In-Line)	Natural	Latch Holder	Nylon Polyamide (PA)	34	Male Pin	0.098 in	2.5 mm	Contacts Not Included

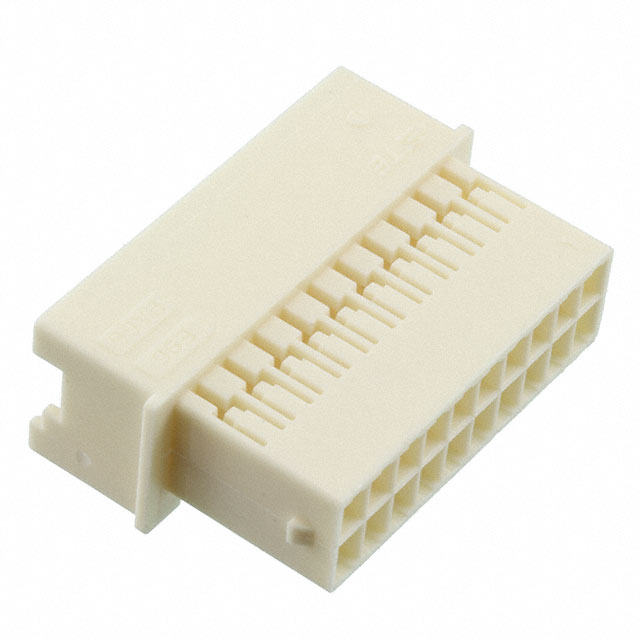

TE Connectivity Raychem Cable Protection 2-1969593-0	Receptacle	105 ░C	-55 °C	0.098 in	2.5 mm	Crimp	2	Free Hanging (In-Line)	Natural	Latch Holder	Nylon Polyamide (PA)	20	Male Pin	0.098 in	2.5 mm	Contacts Not Included
