700ASP7 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON SPDT 3A 120V

Part	Electrical Life	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Color - Actuator/Cap	Actuator Marking	Termination Style	Voltage Rating - AC	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Ingress Protection	Circuit	Features	Panel Cutout Dimensions [diameter]

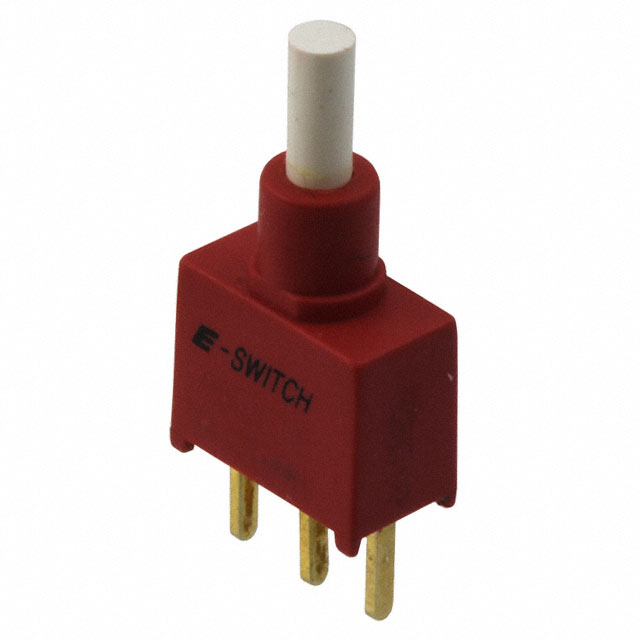

E-Switch 700ASP7B21M2QE	50000 Cycles	Standard	85 °C	-30 ░C	Through Hole	Plunger Round	White	No Marking	PC Pin	120 V	28 V	On-Mom	3 A	IP67 - Dust Tight Waterproof	SPDT	Epoxy Sealed Terminals
E-Switch 700ASP7B21M6QE	50000 Cycles	Standard	85 °C	-30 ░C	Right Angle Through Hole	Plunger Round	White	No Marking	PC Pin	120 V	28 V	On-Mom	3 A	IP67 - Dust Tight Waterproof	SPDT	Epoxy Sealed Terminals
E-Switch 700ASP7B10M2RE	50000 Cycles	Standard	85 °C	-30 ░C	Panel Mount Rear	Plunger Round	White	No Marking	PC Pin	20 V	20 V	On-Mom	0.4 VA	IP67 - Dust Tight Waterproof	SPDT	Epoxy Sealed Terminals	0.25 in
E-Switch 700ASP7B10M6QE	50000 Cycles	Standard	85 °C	-30 ░C	Panel Mount Rear Right Angle	Plunger Round	White	No Marking	PC Pin	120 V	28 V	On-Mom	3 A	IP67 - Dust Tight Waterproof	SPDT	Epoxy Sealed Terminals	0.25 in

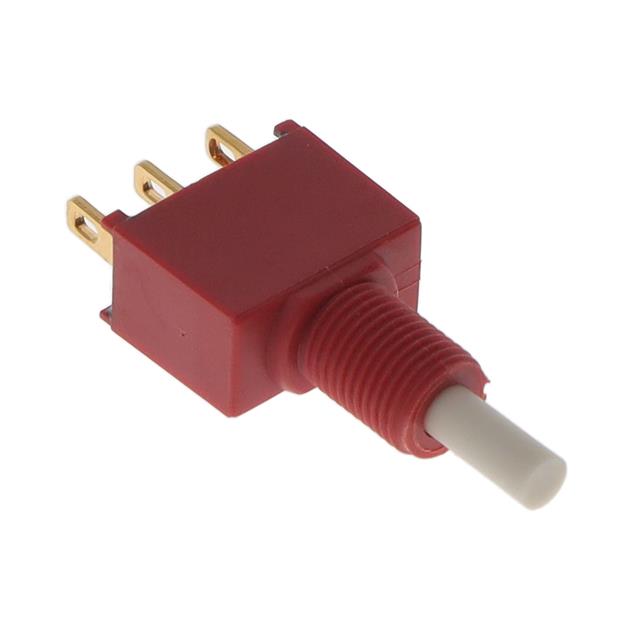

E-Switch 700ASP7B10M1RE	50000 Cycles	Standard	85 °C	-30 ░C	Panel Mount Rear	Plunger Round	White	No Marking	Solder Lug	20 V	20 V	On-Mom	0.4 VA	IP67 - Dust Tight Waterproof	SPDT	Epoxy Sealed Terminals	0.25 in
E-Switch 700ASP7B21M2RE	50000 Cycles	Standard	85 °C	-30 ░C	Through Hole	Plunger Round	White	No Marking	PC Pin	20 V	20 V	On-Mom	0.4 VA	IP67 - Dust Tight Waterproof	SPDT	Epoxy Sealed Terminals

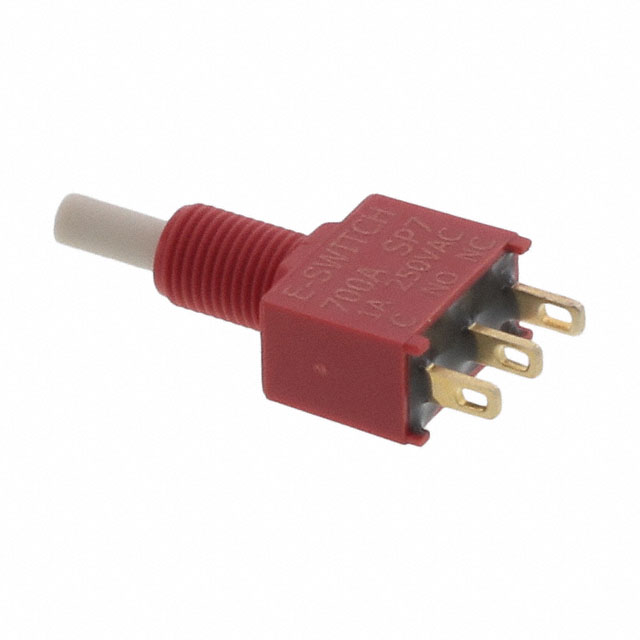

E-Switch 700ASP7B10M1QE	50000 Cycles	Standard	85 °C	-30 ░C	Panel Mount Rear	Plunger Round	White	No Marking	Solder Lug	120 V	28 V	On-Mom	3 A	IP67 - Dust Tight Waterproof	SPDT	Epoxy Sealed Terminals	0.25 in
