VOF-280 Series
Manufacturer: CUI Inc.
Beta
⌘K

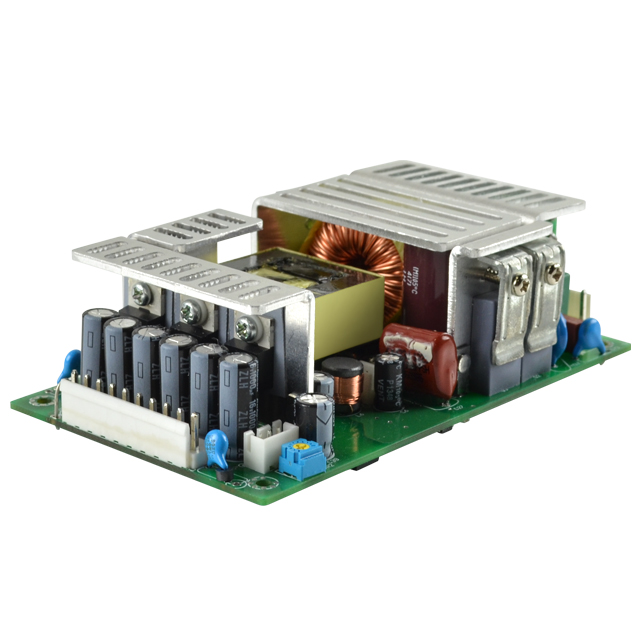

AC/DC CONVERTER 15V 168W
| Part | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Mounting Type | Power (Watts) | Power (Watts) | Efficiency | Features | Type | Current - Output 1 | Voltage - Isolation | Approval Agency | Applications | Standard Number | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 [custom] | Current - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 1 | 277 VAC | 90 VAC | Chassis Mount | 168 W | 280 W | 90 % | Adjustable Output PFC Standby Output Universal Input | Open Frame | 11.2 A | 3000 V | CB Scheme CSA EN FCC IEC SIQ TUV UL | ITE (Commercial) | 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1 | 35 mm | 127 mm | 5 " | 3 " | 1.38 in | 76.2 mm | 15 V | 70 °C | -20 °C | ||
 CUI Inc. | 1 | 277 VAC | 90 VAC | Chassis Mount | 168 W | 280 W | 90 % | Adjustable Output PFC Standby Output Universal Input | Open Frame | 4.67 A | 3000 V | CB Scheme CSA EN FCC IEC SIQ TUV UL | ITE (Commercial) | 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1 | 35 mm | 127 mm | 5 " | 3 " | 1.38 in | 76.2 mm | 70 °C | -20 °C | 36 V | ||
CUI Inc. | 1 | 277 VAC | 90 VAC | Chassis Mount | 168 W | 280 W | 88 % | Adjustable Output PFC Standby Output Universal Input | Open Frame | 3000 V | CB Scheme CSA EN FCC IEC SIQ TUV UL | ITE (Commercial) | 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1 | 35 mm | 127 mm | 5 " | 3 " | 1.38 in | 76.2 mm | 12 V | 70 °C | -20 °C | 14 A |
