B13JJ Series

Catalog

SUBMINIATURE FULLY ILLUMINATED TOGGLE

Part	Actuator Material	Electrical Life	Actuator Type	Actuator Length [x]	Mounting Type	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Bushing Thread	Illumination Type, Color	Switch Function	Features	Voltage Rating - DC	Voltage Rating - AC	Termination Style	Illumination Voltage (Nominal)
NKK Switches B13JJHCF	Polyamide (PA) Nylon	50000 Cycles	Standard Round	6.3 mm	Right Angle Through Hole	Illuminated	55 °C	-25 °C	SPDT	0.4 VA	Unthreaded	Green/Red LED	On-Off-On	Epoxy Sealed Terminals	28 V	28 V	PC Pin	1.95 VDC 3.3 VDC

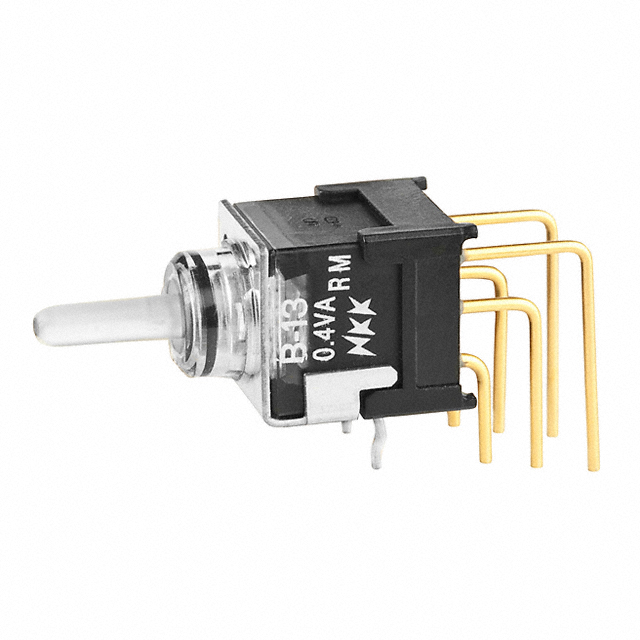

NKK Switches B13JJVCF	Polyamide (PA) Nylon	50000 Cycles	Standard Round	6.3 mm	Right Angle Through Hole Vertical	Illuminated	55 °C	-25 °C	SPDT	0.4 VA	Unthreaded	Green/Red LED	On-Off-On	Epoxy Sealed Terminals	28 V	28 V	PC Pin	1.95 VDC 3.3 VDC
