325121 Series

Catalog

CONN BARRIER STRP 17CIRC 0.325"

Part	Mounting Type	Number of Circuits	Wire Gauge [Min]	Wire Gauge [Max]	Barrier Type	Number of Wire Entries	Voltage Rating	Pitch [x]	Pitch [x]	Operating Temperature	Material Flammability Rating	Number of Rows	Top Termination	Material - Insulation	Bottom Termination	Terminal Block Type	Current Rating (Amps)	Number of Wire Entries [custom]
Curtis Industries 325121-17-0	Through Hole	17	14 AWG	22 AWG	2 Wall (Dual)	17	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-11-0	Through Hole	11	14 AWG	22 AWG	2 Wall (Dual)	11	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-14-0	Through Hole	14	14 AWG	22 AWG	2 Wall (Dual)	14	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-04-0	Through Hole	4	14 AWG	22 AWG	2 Wall (Dual)	4	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-25-0	Through Hole	25	14 AWG	22 AWG	2 Wall (Dual)	25	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-22-0	Through Hole	22	14 AWG	22 AWG	2 Wall (Dual)		300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A	22
Curtis Industries 325121-19-0	Through Hole	19	14 AWG	22 AWG	2 Wall (Dual)	19	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A

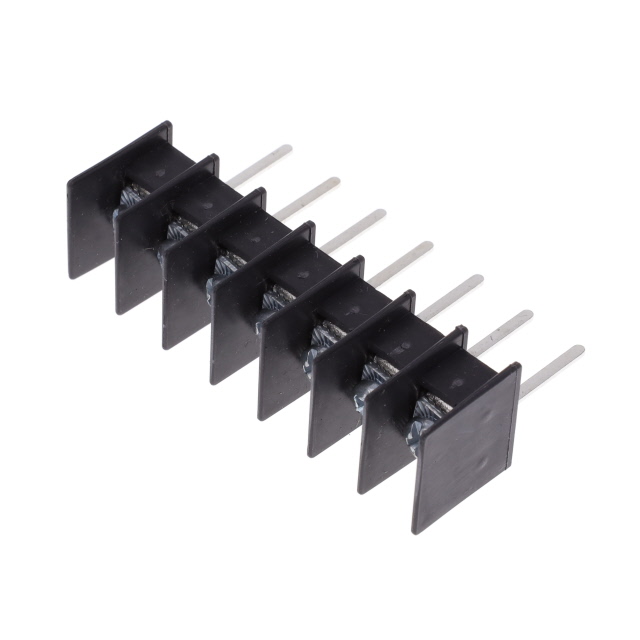

Curtis Industries 325121-07-0	Through Hole	7	14 AWG	22 AWG	2 Wall (Dual)	7	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-03-0	Through Hole	3	14 AWG	22 AWG	2 Wall (Dual)	3	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
Curtis Industries 325121-09-0	Through Hole		14 AWG	22 AWG	2 Wall (Dual)	9	300 VDC	8.26 mm	0.325 in	105 C	UL94 V-0	1	Screws	Polypropylene (PP)	Wire Wrap	Barrier Block	15 A
