T41124 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SENSOR CONNECTOR, M12, FEMALE, 4 POSITIONS, SCREW SOCKET, RIGHT ANGLE CABLE MOUNT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features	Insert Material [custom]	Insert Material [custom]	Applications	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Shell Material	Voltage Rating	Contact Material	Orientation	Contact Finish - Mating	Shell Size - Insert	Color	Ingress Protection	Backshell Material, Plating	Connector Type	Number of Positions	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Shell Finish	Termination	Primary Material	Shielding	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]

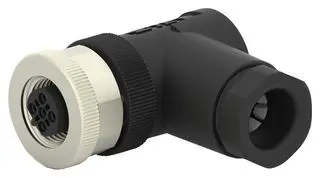

TE Connectivity AMP Connectors T4112402041-000	85 °C	-40 C	Free Hanging (In-Line) Right Angle	Backshell Coupling Nut	Nylon	Polyamide (PA)	Industrial	0.315 in	0.236 in	8 mm	6 mm	Brass	250 V	Zinc Alloy	B	Gold	M12-4	Black Silver	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Plug Female Sockets	4	Threaded	0.076 µm	3 µin	4 A	Nickel	Screw	Metal	Unshielded
TE Connectivity AMP Connectors T4112401052-000	85 °C	-40 C	Free Hanging (In-Line) Right Angle	Backshell Coupling Nut	Nylon	Polyamide (PA)	Industrial	0.236 in	0.157 in	6 mm	4 mm	Brass	60 VDC	Bronze	B	Silver	M12-5	Black Silver	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Plug Female Sockets	5	Threaded			4 A	Nickel	Screw	Metal	Unshielded	2.03 µm	80 µin
TE Connectivity AMP Connectors T4112411022-000	85 °C	-40 C	Free Hanging (In-Line) Right Angle	Backshell Coupling Nut	Nylon	Polyamide (PA)	Industrial	0.236 in	0.157 in	6 mm	4 mm	Brass	250 V	Bronze	B	Silver	M12-2	Silver	IP67 - Dust Tight Waterproof	Brass Nickel	Plug Female Sockets	2	Threaded			4 A	Nickel	Screw	Metal	Shielded	2.03 µm	80 µin
TE Connectivity AMP Connectors T4112402042-000	85 °C	-40 C	Free Hanging (In-Line) Right Angle	Backshell Coupling Nut	Nylon	Polyamide (PA)	Industrial	0.315 in	0.236 in	8 mm	6 mm	Brass	250 V	Bronze	B	Silver	M12-4	Black Silver	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Plug Female Sockets	4	Threaded			4 A	Nickel	Screw	Metal	Unshielded	2.03 µm	80 µin
TE Connectivity AMP Connectors T4112411032-000	85 °C	-40 C	Free Hanging (In-Line) Right Angle	Backshell Coupling Nut	Nylon	Polyamide (PA)	Industrial	0.236 in	0.157 in	6 mm	4 mm	Brass	250 V	Bronze	B	Silver	M12-3	Silver	IP67 - Dust Tight Waterproof	Brass Nickel	Plug Female Sockets		Threaded			4 A	Nickel	Screw	Metal	Shielded	2.03 µm	80 µin
TE Connectivity AMP Connectors T4112402031-000	85 °C	-40 C	Free Hanging (In-Line) Right Angle	Backshell Coupling Nut	Nylon	Polyamide (PA)	Industrial	0.315 in	0.236 in	8 mm	6 mm	Brass	250 V	Bronze	B	Gold	M12-3	Black Silver	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Plug Female Sockets		Threaded	0.076 µm	3 µin	4 A	Nickel	Screw	Metal	Unshielded
TE Connectivity AMP Connectors T4112402052-000	85 °C	-40 C	Free Hanging (In-Line) Right Angle	Backshell Coupling Nut	Nylon	Polyamide (PA)	Industrial	0.315 in	0.236 in	8 mm	6 mm	Brass	60 VDC	Bronze	B	Silver	M12-5	Black Silver	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Plug Female Sockets	5	Threaded			4 A	Nickel	Screw	Metal	Unshielded	2.03 µm	80 µin

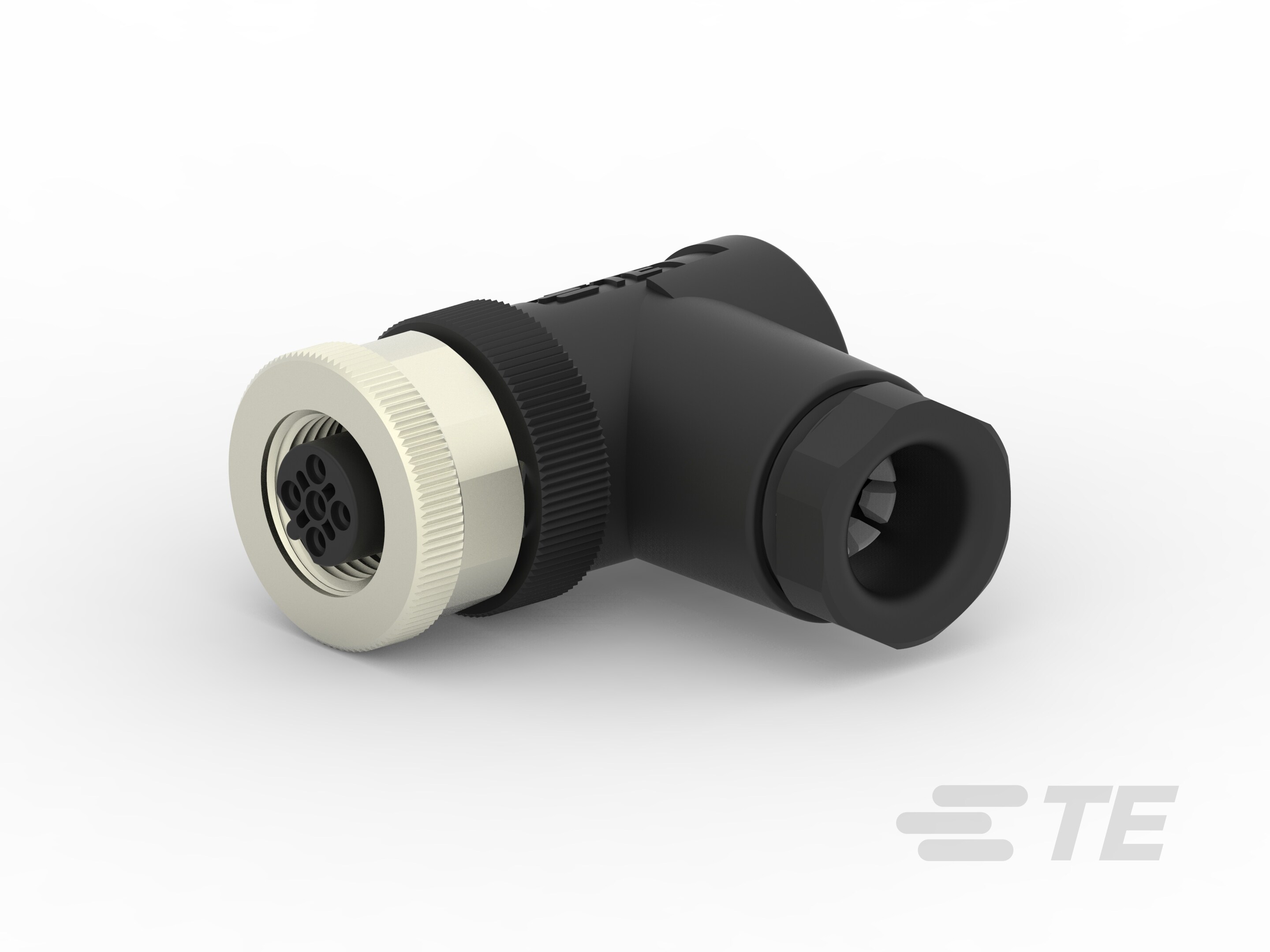

TE Connectivity AMP Connectors T4112402021-000	85 °C	-40 C	Free Hanging (In-Line) Right Angle	Backshell Coupling Nut	Nylon	Polyamide (PA)	Industrial	0.315 in	0.236 in	8 mm	6 mm	Brass	250 V	Bronze	B	Gold	M12-2	Black Silver	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT) Glass Filled	Plug Female Sockets	2	Threaded	0.076 µm	3 µin	4 A	Nickel	Screw	Metal	Unshielded

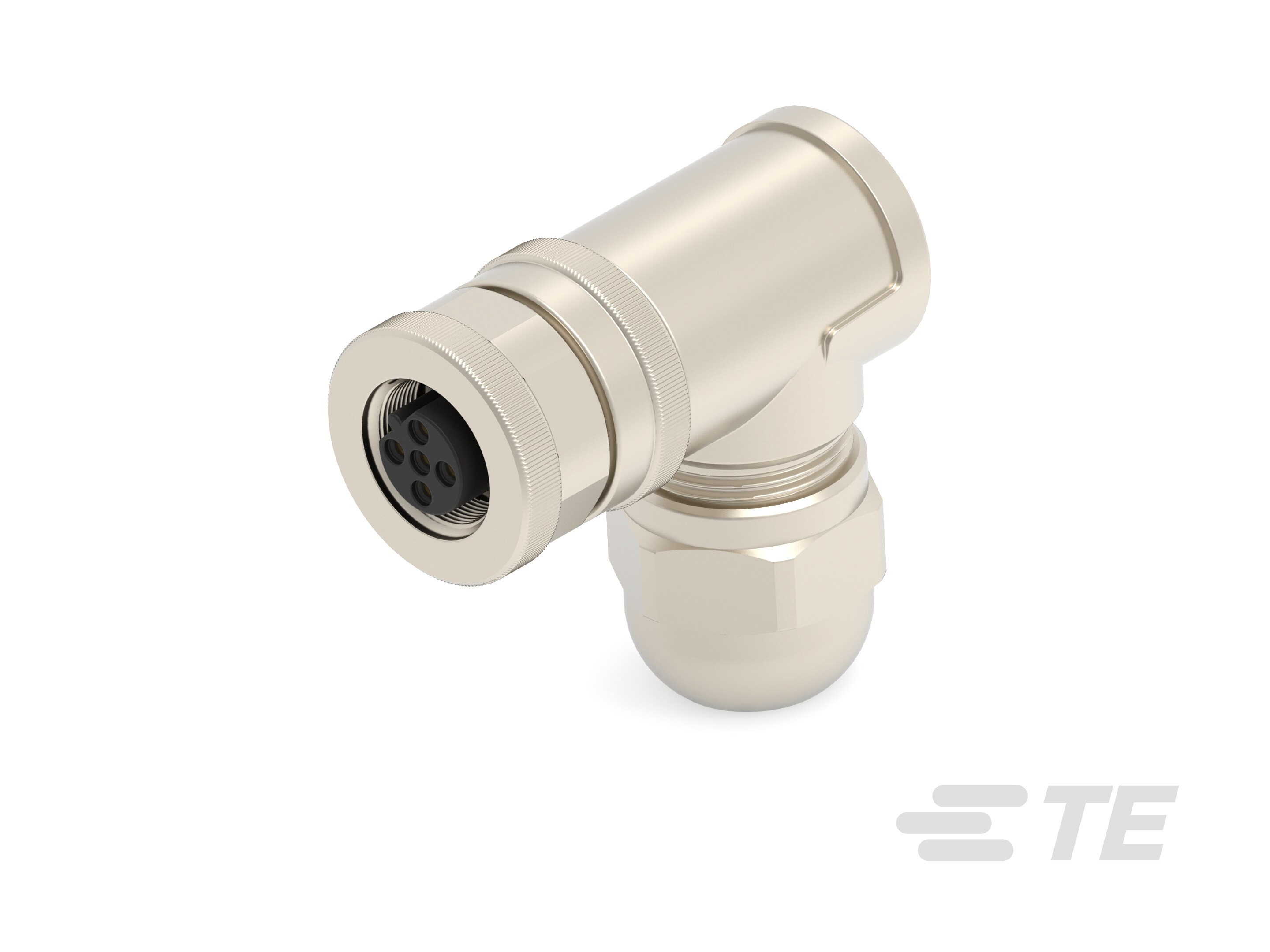

TE Connectivity AMP Connectors T4112411031-000	85 °C	-40 C	Free Hanging (In-Line) Right Angle	Backshell Coupling Nut	Nylon	Polyamide (PA)	Industrial	0.236 in	0.157 in	6 mm	4 mm	Brass	250 V	Bronze	B	Gold	M12-3	Silver	IP67 - Dust Tight Waterproof	Brass Nickel	Plug Female Sockets		Threaded	0.076 µm	3 µin	4 A	Nickel	Screw	Metal	Shielded
TE Connectivity AMP Connectors T4112412022-000	85 °C	-40 C	Free Hanging (In-Line) Right Angle	Backshell Coupling Nut	Nylon	Polyamide (PA)	Industrial	0.315 in	0.236 in	8 mm	6 mm	Brass	250 V	Bronze	B	Silver	M12-2	Silver	IP67 - Dust Tight Waterproof	Brass Nickel	Plug Female Sockets	2	Threaded			4 A	Nickel	Screw	Metal	Shielded	2.03 µm	80 µin
