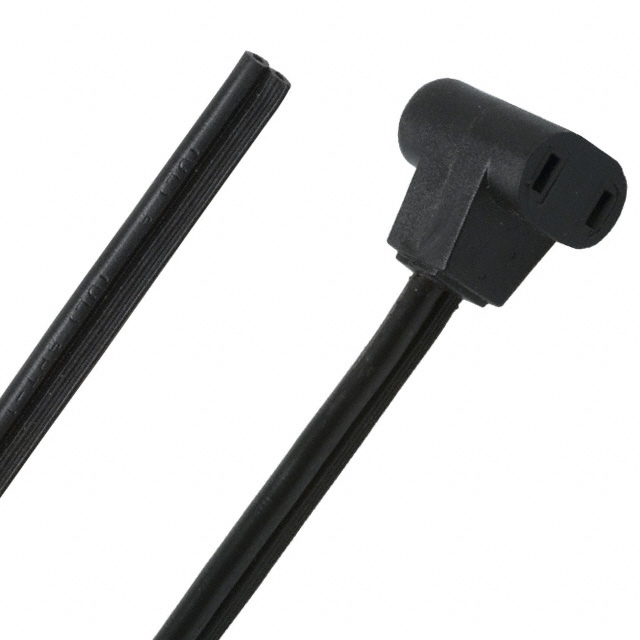

07199 Series

Manufacturer: Qualtek

Catalog

POWER CORD FAN T-TYPE 40"

Part	Fits Terminal Size [x]	Fits Terminal Size [y]	Length	Length	Operating Temperature	Current Rating (Amps)	Voltage Rating	2nd Connector	Approval Agency Marking	Style	Wire Gauge	Cord Type	Number of Conductors	1st Connector	Length [x]	Length [x]
Qualtek 07199-40	4.5	2.5	40 in	1.02 m	105 C	10 A	125 VDC	Open Wires	cUL UL	Female Receptacle to Cable	18 AWG	SPT-1	2	Fan Terminal Receptacle T-Style
Qualtek 07199-24	4.5	2.5	24 in	609.6 mm	105 C	10 A	125 VDC	Open Wires	cUL UL	Female Receptacle to Cable	18 AWG	SPT-1	2	Fan Terminal Receptacle T-Style
Qualtek 07199-12	4.5	2.5			105 C	10 A	125 VDC	Open Wires	cUL UL	Female Receptacle to Cable	18 AWG	SPT-1	2	Fan Terminal Receptacle T-Style	304.8 mm	12 in

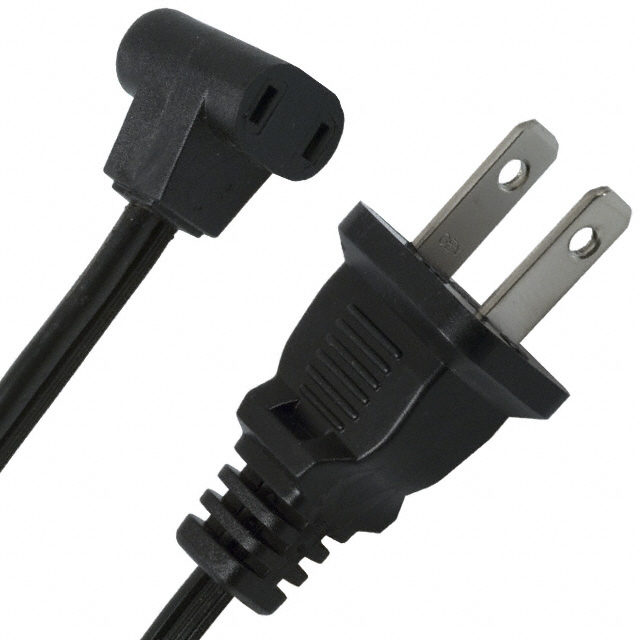

Qualtek 07199-SP024	4.5	2.5	24 in	609.6 mm	105 C	10 A	125 VDC	NEMA 1-15 Plug	cUL UL	Female Receptacle to Male Plug	18 AWG	SPT-1	2	Fan Terminal Receptacle T-Style
Qualtek 07199-50	4.5	2.5			105 C	10 A	125 VDC	Open Wires	cUL UL	Female Receptacle to Cable	18 AWG	SPT-1	2	Fan Terminal Receptacle T-Style	1.27 m	50 in
Qualtek 07199-96	4.5	2.5	96 in	2.44 m	105 C	10 A	125 VDC	Open Wires	cUL UL	Female Receptacle to Cable	18 AWG	SPT-1	2	Fan Terminal Receptacle T-Style
Qualtek 07199-SP036	4.5	2.5			105 C	10 A	125 VDC	NEMA 1-15 Plug	cUL UL	Female Receptacle to Male Plug	18 AWG	SPT-1	2	Fan Terminal Receptacle T-Style	914.4 mm	36 in
Qualtek 07199-36	4.5	2.5			105 C	10 A	125 VDC	Open Wires	cUL UL	Female Receptacle to Cable	18 AWG	SPT-1	2	Fan Terminal Receptacle T-Style	914.4 mm	36 in
Qualtek 07199-80	4.5	2.5	80 in	2.03 m	105 C	10 A	125 VDC	Open Wires	cUL UL	Female Receptacle to Cable	18 AWG	SPT-1	2	Fan Terminal Receptacle T-Style
