TLP241 Series

Manufacturer: Toshiba Semiconductor and Storage

Catalog

PHOTORELAY; 100V/2A; DIP4; SMD;

Part	Termination Style	Load Current	Approval Agency	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	On-State Resistance (Max) [Max]	Mounting Type	Supplier Device Package	Voltage - Input	Package / Case	Package / Case	Package / Case	Voltage - Load [Max]	Package / Case
Toshiba Semiconductor and Storage TLP241B(TP1,F	SMD (SMT) Tab	2 A	CSA cUL UL VDE	AC DC	-40 C	110 °C	0.2 Ohms	Surface Mount	4-SMD	1.65 VDC	0.3 in	4-SMD	7.62 mm	100 V
Toshiba Semiconductor and Storage TLP241B(D4,LF5,F	SMD (SMT) Tab	2 A	CSA cUL UL VDE	AC DC	-40 C	110 °C	0.2 Ohms	Surface Mount	4-SMD	1.65 VDC		4-SMD Gull Wing		100 V
Toshiba Semiconductor and Storage TLP241B(LF1,F	SMD (SMT) Tab	2 A	CSA cUL UL VDE	AC DC	-40 C	110 °C	0.2 Ohms	Surface Mount	4-SMD	1.65 VDC	0.3 in	4-SMD 4-SMD Gull Wing	7.62 mm	100 V
Toshiba Semiconductor and Storage TLP241B(F	PC Pin	2 A	CSA cUL UL VDE	AC DC	-40 C	110 °C	0.2 Ohms	Through Hole	4-DIP	1.65 VDC	7.62 mm	4-DIP		100 V	0.3 in
Toshiba Semiconductor and Storage TLP241BF(D4TP4,F	Gull Wing	2 A	CSA cUL UL VDE	AC DC	-40 C	110 °C	0.2 Ohms	Surface Mount	4-SMD	1.65 VDC		4-SMD Gull Wing		100 V

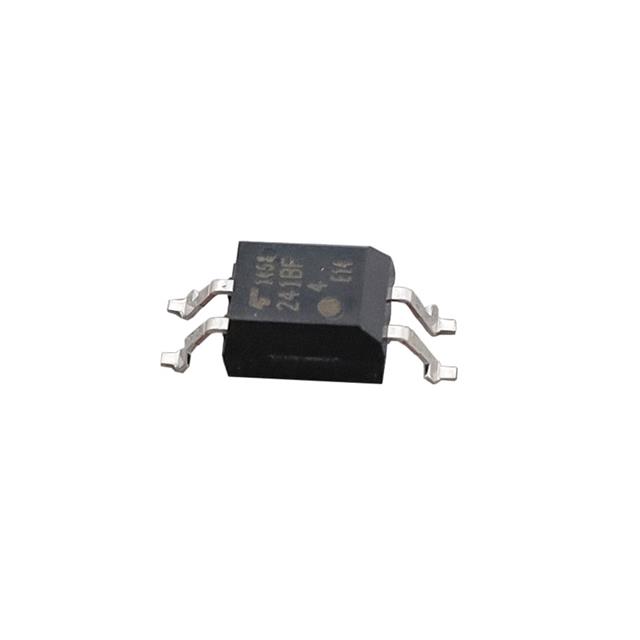

Toshiba Semiconductor and Storage TLP241BF(D4LF4,F	Gull Wing	2 A	CSA cUL UL VDE	AC DC	-40 C	110 °C	0.2 Ohms	Surface Mount	4-SMD	1.65 VDC		4-SMD Gull Wing		100 V

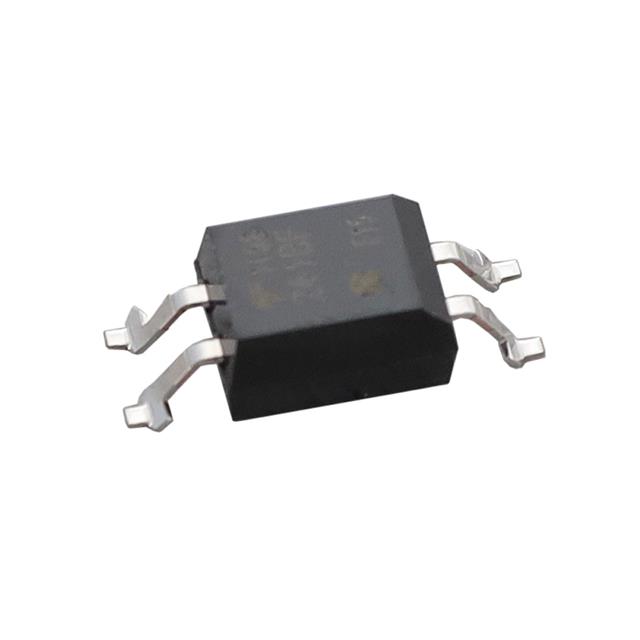

Toshiba Semiconductor and Storage TLP241BF(LF4,F	Gull Wing	2 A	CSA cUL UL VDE	AC DC	-40 C	110 °C	0.2 Ohms	Surface Mount	4-SMD	1.65 VDC		4-SMD Gull Wing		100 V
Toshiba Semiconductor and Storage TLP241B(D4,F	PC Pin	2 A	CSA cUL UL VDE	AC DC	-40 C	110 °C	0.2 Ohms	Through Hole	4-DIP	1.65 VDC	7.62 mm	4-DIP		100 V	0.3 in
Toshiba Semiconductor and Storage TLP241B(TP5,F	SMD (SMT) Tab	2 A	CSA cUL UL VDE	AC DC	-40 C	110 °C	0.2 Ohms	Surface Mount	4-SMD	1.65 VDC		4-SMD Gull Wing		100 V
Toshiba Semiconductor and Storage TLP241B(D4,TP1,F	SMD (SMT) Tab	2 A	CSA cUL UL VDE	AC DC	-40 C	110 °C	0.2 Ohms	Surface Mount	4-SMD	1.65 VDC	0.3 in	4-SMD 4-SMD Gull Wing	7.62 mm	100 V
