PH-MVP-43 Series
Manufacturer: Adam Tech
Beta
⌘K
CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Contact Finish | Current Rating (Amps) | Contact Type | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Recommended Working Height | Recommended Working Height | Mounting Type | Contact Material | Minimum Working Height [z] | Minimum Working Height [z] | Operating Force - Initial | Maximum Working Height [Max] | Maximum Working Height | Plunger Size [diameter] | Plunger Size [diameter] | Maximum Working Height [Max] | Minimum Working Height | Minimum Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

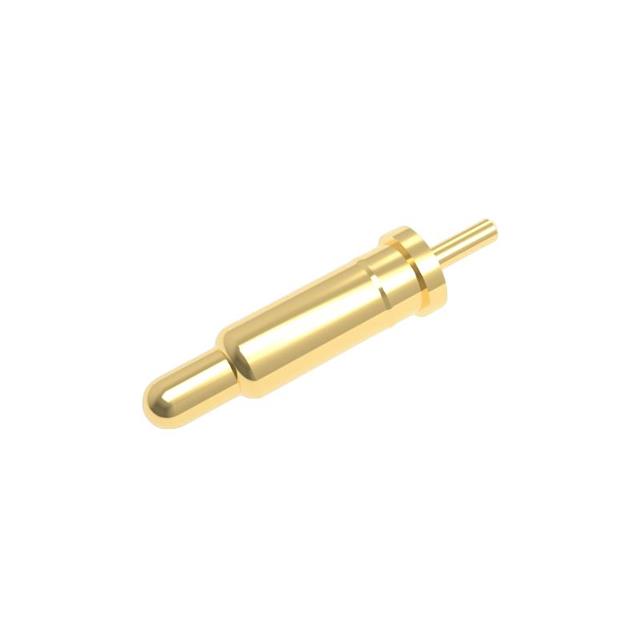

 Adam Tech | -55 C | 125 °C | 1000000 | Gold | 3 A | Sleeve & Plunger (Pogo Pins) | 1.8 mm | 0.071 in | 0.197 in | 5 mm | Through Hole | Brass | 0.181 in | 4.6 mm | 70 gf | 0.236 in | 6 mm | 1 mm | 0.039 in | |||

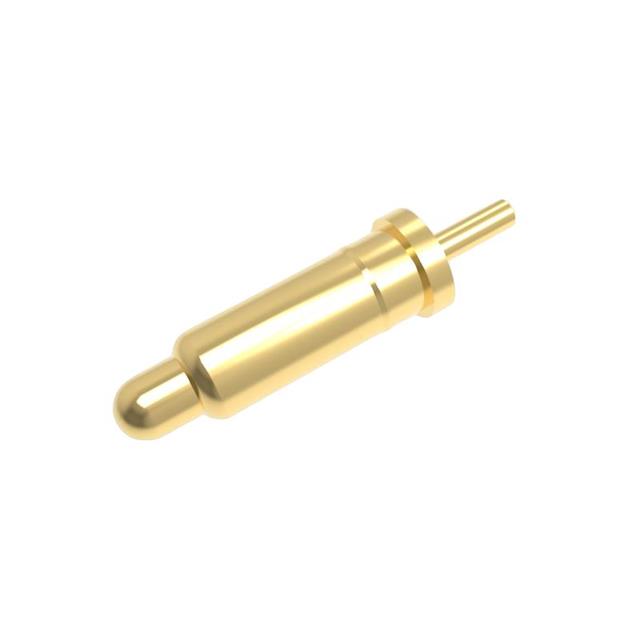

 Adam Tech | -55 C | 125 °C | 1000000 | Gold | 3 A | Sleeve & Plunger (Pogo Pins) | 1.8 mm | 0.071 in | 0.177 in | 4.5 mm | Through Hole | Brass | 70 gf | 0.217 in | 1 mm | 0.039 in | 5.51 mm | 4.1 mm | 0.161 in |
