0401-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Mounting Hole Diameter	Mounting Hole Diameter	Termination	Accepts Square Pin Size	Accepts Square Pin Size	Tail Type	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]

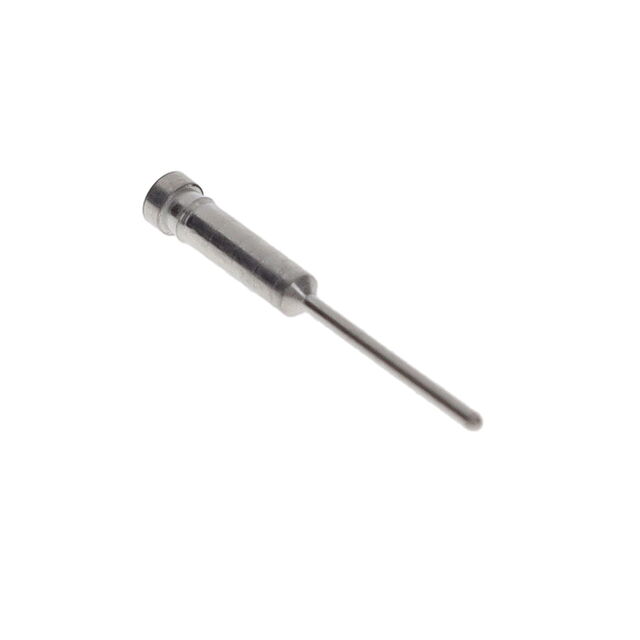

Mill-Max Manufacturing Corp. 0401-0-15-80-47-14-04-0	-55 C	125 °C	0.6 in	15.24 mm	Gold	0.076 in	1.93 mm	0.23 in	5.84 mm	0.064 "	1.63 mm	Press-Fit	0.025 in	0.64 mm	Standard Tail	0.025 in	0.64 mm	Beryllium Copper	0.25 Ám	10 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0401-0-15-01-47-14-04-0	-55 C	125 °C	0.6 in	15.24 mm	Gold	0.076 in	1.93 mm	0.23 in	5.84 mm	0.064 "	1.63 mm	Press-Fit	0.025 in	0.64 mm	Standard Tail	0.025 in	0.64 mm	Beryllium Copper	0.25 Ám	10 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	0.051 in	1.3 mm

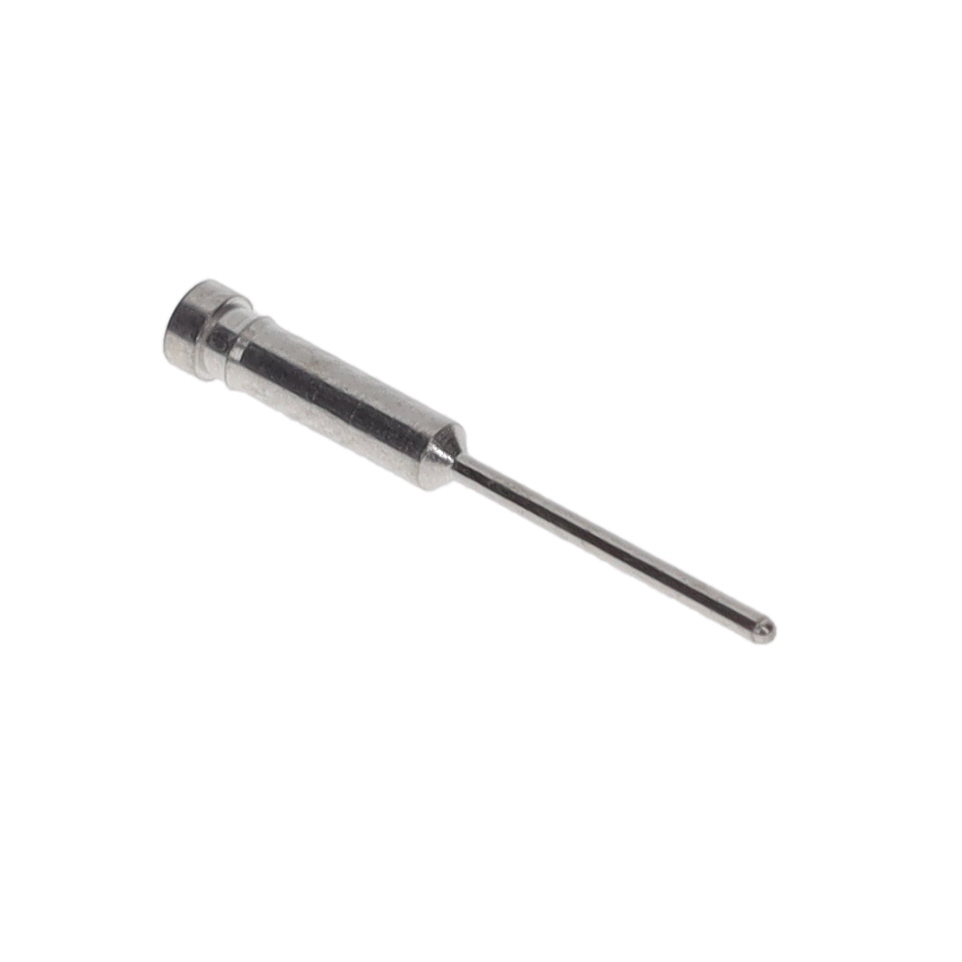

Mill-Max Manufacturing Corp. 0401-0-15-01-47-27-04-0	-55 C	125 °C	0.6 in	15.24 mm	Gold	0.076 in	1.93 mm	0.23 in	5.84 mm	0.064 "	1.63 mm	Press-Fit	0.025 in	0.64 mm	Standard Tail	0.025 in	0.64 mm	Beryllium Copper	0.76 Ám	30 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0401-0-15-80-47-27-04-0	-55 C	125 °C	0.6 in	15.24 mm	Gold	0.076 in	1.93 mm	0.23 in	5.84 mm	0.064 "	1.63 mm	Press-Fit	0.025 in	0.64 mm	Standard Tail	0.025 in	0.64 mm	Beryllium Copper	0.76 Ám	30 Áin	0.64 mm	0.037 in	0.94 mm	0.025 in	0.051 in	1.3 mm
