316-020 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 40POS 0.156

Part	Termination Rows	Material - Insulation	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Read Out	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Type	Number of Positions/Bay/Row	Contact Finish	Termination	Contact Material	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Gender	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Features
EDAC Inc. 316-020-500-103	1	Polyester Thermoplastic	Panel Mount	40	-40 C	105 ░C	3.96 mm	0.156 in	Dual	0.25 Ám	10 Áin	Green	Cantilever	20 Bay/Row	Gold	Solder Eyelet(s)	Copper Alloy	Non Specified - Dual Edge	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	2
EDAC Inc. 316-020-520-168	1	Polyester Thermoplastic	Panel Mount Through Hole	40	-40 C	105 ░C	3.96 mm	0.156 in	Dual	0.25 Ám	10 Áin	Green	Cantilever	20 Bay/Row	Gold	Solder	Copper Alloy	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Card Guides
EDAC Inc. 316-020-500-178	1	Polyester Thermoplastic	Panel Mount	40	-40 C	105 ░C	3.96 mm	0.156 in	Dual	0.25 Ám	10 Áin	Green	Cantilever	20 Bay/Row	Gold	Solder Eyelet(s)	Copper Alloy	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Card Guides
EDAC Inc. 316-020-521-102	1	Polyester Thermoplastic	Through Hole	40	-40 C	105 ░C	3.96 mm	0.156 in	Dual	0.25 Ám	10 Áin	Green	Cantilever	20 Bay/Row	Gold	Solder	Copper Alloy	Non Specified - Dual Edge	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	2
EDAC Inc. 316-020-500-104	1	Polyester Thermoplastic	Panel Mount	40	-40 C	105 ░C	3.96 mm	0.156 in	Dual	0.25 Ám	10 Áin	Green	Cantilever	20 Bay/Row	Gold	Solder Eyelet(s)	Copper Alloy	Non Specified - Dual Edge	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	2
EDAC Inc. 316-020-400-101	1	Polyester Thermoplastic	Free Hanging (In-Line)	40	-40 C	105 ░C	3.96 mm	0.156 in	Dual			Green	Cantilever	20 Bay/Row	Tin	Solder Eyelet(s)	Copper Alloy	Non Specified - Dual Edge				Female	0.07 in 1.78 mm	0.054 in 1.37 mm	2
EDAC Inc. 316-020-500-158	1	Polyester Thermoplastic	Panel Mount	40	-40 C	105 ░C	3.96 mm	0.156 in	Dual	0.25 Ám	10 Áin	Green	Cantilever	20 Bay/Row	Gold	Solder Eyelet(s)	Copper Alloy	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Card Guides
EDAC Inc. 316-020-521-103	1	Polyester Thermoplastic	Through Hole	40	-40 C	105 ░C	3.96 mm	0.156 in	Dual	0.25 Ám	10 Áin	Green	Cantilever	20 Bay/Row	Gold	Solder	Copper Alloy	Non Specified - Dual Edge	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	2

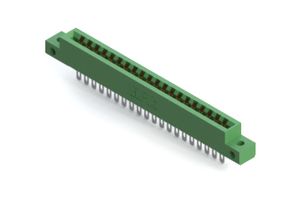

EDAC Inc. 316-020-500-112	1	Polyester Thermoplastic	Panel Mount	40	-40 C	105 ░C	3.96 mm	0.156 in	Dual	0.25 Ám	10 Áin	Green	Cantilever	20 Bay/Row	Gold	Solder Eyelet(s)	Copper Alloy	Non Specified - Dual Edge	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	2
EDAC Inc. 316-020-521-178	1	Polyester Thermoplastic	Through Hole	40	-40 C	105 ░C	3.96 mm	0.156 in	Dual	0.25 Ám	10 Áin	Green	Cantilever	20 Bay/Row	Gold	Solder	Copper Alloy	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Card Guides
