2842140 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

20P,2MM,BRK HDR,DRVT,2.8,0.76AU,

Part	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Mounting Type	Voltage Rating	Termination	Insulation Height	Insulation Height	Shrouding	Contact Material	Current Rating (Amps)	Number of Rows	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Contact Shape	Number of Positions	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Material Flammability Rating	Fastening Type	Contact Type
TE Connectivity Raychem Cable Protection 1-2842140-0	4 mm	0.157 in	8.3 mm	0.327 in	Through Hole	125 VAC	Solder	1.5 mm	0.059 "	Unshrouded	Copper Alloy	2 A	2	All	0.079 in	2 mm	Breakaway Header	Square	20	Thermoplastic	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	Tin	Gold	0.11 in	2.79 mm	2 çm	78.7 çin	Black	UL94 V-0	Push-Pull	Male Pin

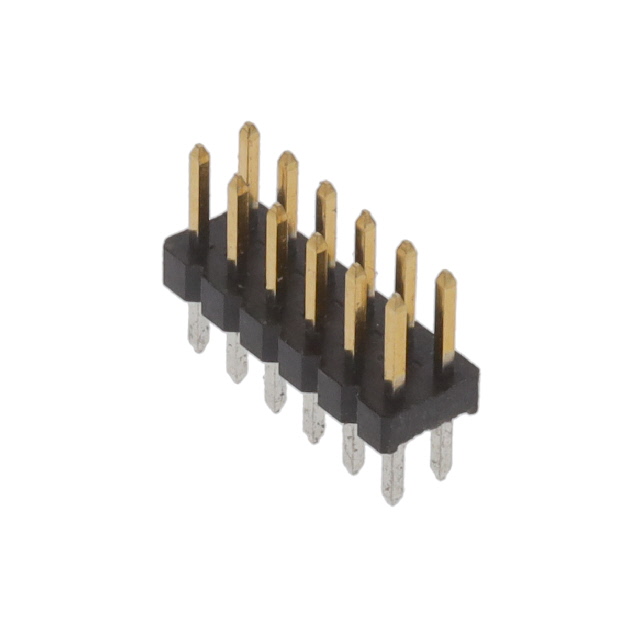

TE Connectivity Raychem Cable Protection 2842140-6	4 mm	0.157 in	8.3 mm	0.327 in	Through Hole	125 VAC	Solder	1.5 mm	0.059 "	Unshrouded	Copper Alloy	2 A	2	All	0.079 in	2 mm	Breakaway Header	Square	12	Thermoplastic	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	Tin	Gold	0.11 in	2.79 mm	2 çm	78.7 çin	Black	UL94 V-0	Push-Pull	Male Pin
TE Connectivity Raychem Cable Protection 2842140-7	4 mm	0.157 in	8.3 mm	0.327 in	Through Hole	125 VAC	Solder	1.5 mm	0.059 "	Unshrouded	Copper Alloy	2 A	2	All	0.079 in	2 mm	Breakaway Header	Square	14	Thermoplastic	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	Tin	Gold	0.11 in	2.79 mm	2 çm	78.7 çin	Black	UL94 V-0	Push-Pull	Male Pin

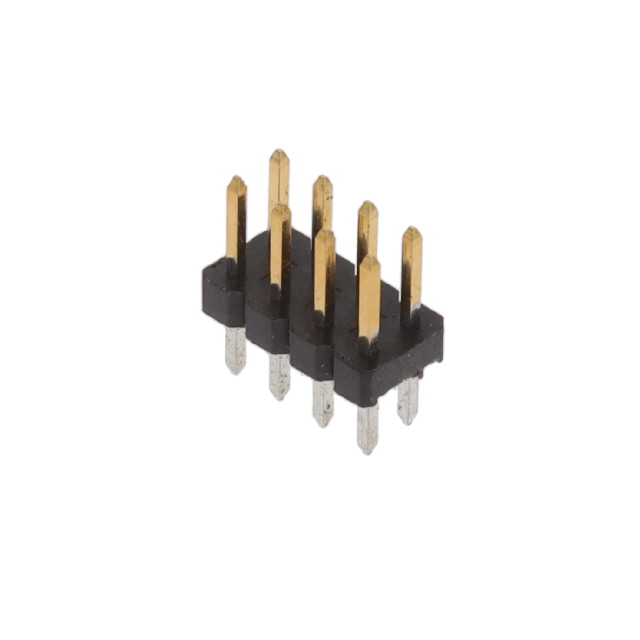

TE Connectivity Raychem Cable Protection 2842140-4	4 mm	0.157 in	8.3 mm	0.327 in	Through Hole	125 VAC	Solder	1.5 mm	0.059 "	Unshrouded	Copper Alloy	2 A	2	All	0.079 in	2 mm	Breakaway Header	Square	8	Thermoplastic	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	Tin	Gold	0.11 in	2.79 mm	2 çm	78.7 çin	Black	UL94 V-0	Push-Pull	Male Pin

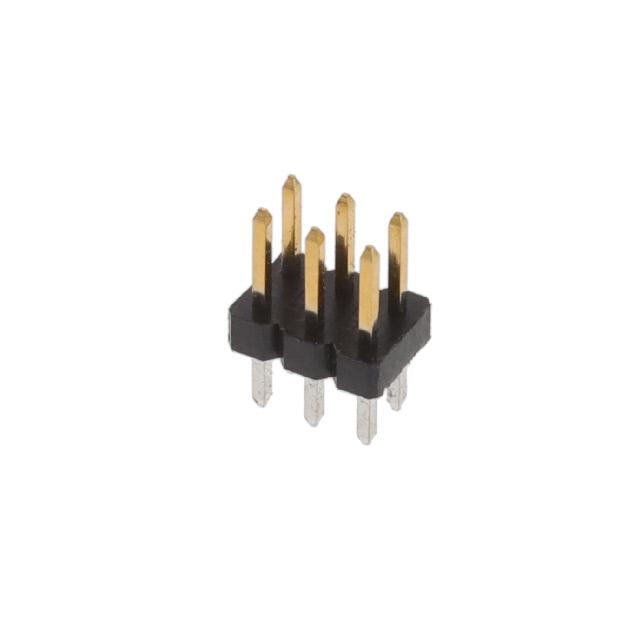

TE Connectivity Raychem Cable Protection 2842140-3	4 mm	0.157 in	8.3 mm	0.327 in	Through Hole	125 VAC	Solder	1.5 mm	0.059 "	Unshrouded	Copper Alloy	2 A	2	All	0.079 in	2 mm	Breakaway Header	Square	6	Thermoplastic	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	Tin	Gold	0.11 in	2.79 mm	2 çm	78.7 çin	Black	UL94 V-0	Push-Pull	Male Pin

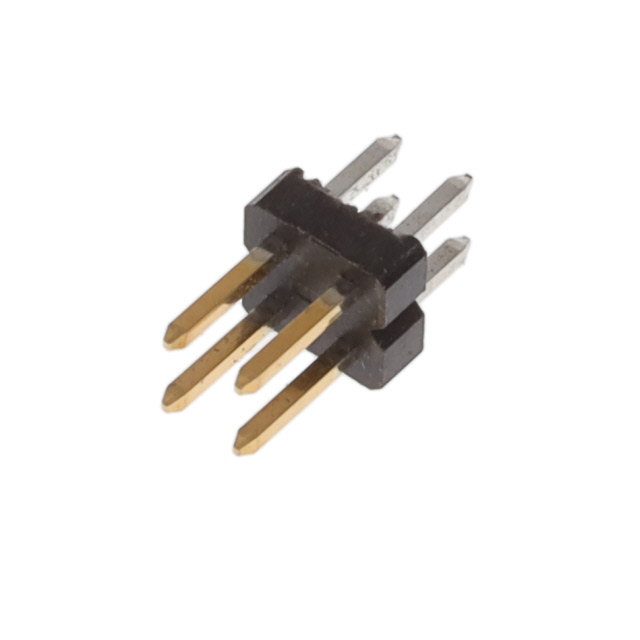

TE Connectivity Raychem Cable Protection 2842140-2	4 mm	0.157 in	8.3 mm	0.327 in	Through Hole	125 VAC	Solder	1.5 mm	0.059 "	Unshrouded	Copper Alloy	2 A	2	All	0.079 in	2 mm	Breakaway Header	Square	4	Thermoplastic	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	Tin	Gold	0.11 in	2.79 mm	2 çm	78.7 çin	Black	UL94 V-0	Push-Pull	Male Pin
