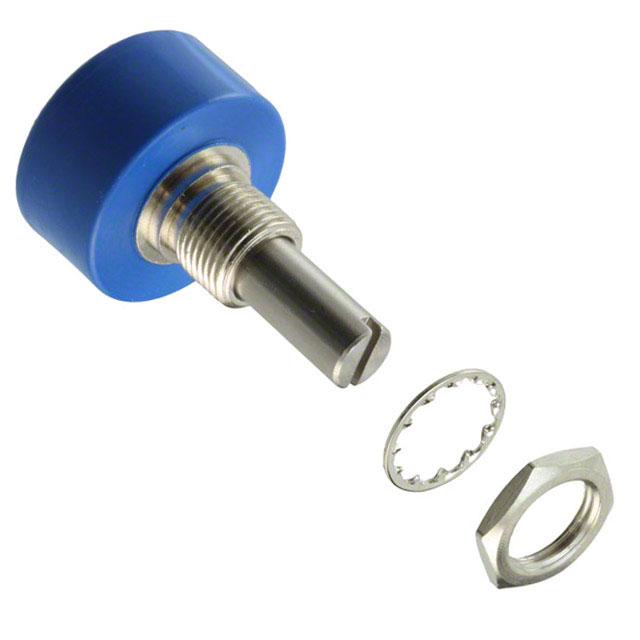

6639S Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES POT 10K OHM 15% 1W 1(ELEC)/1(MECH)TURNS 6.34MM (22.23 X 36.65MM) TURRET PANEL MOUNT
| Part | Size - Body [diameter] | Size - Body [diameter] | Power (Watts) | Rotation | Built in Switch | Adjustment Type | Tolerance | Number of Turns | Actuator Length [x] | Actuator Length [x] | Resistance (Ohms) | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Termination Style | Temperature Coefficient | Bushing Thread | Taper | Mounting Type | Number of Gangs | Actuator Type | Resistive Material | Resistance (Ohms) | Rotation | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 22.23 mm | 0.875 " | 1 W | 340 ° | None | User Defined | 15 % | 1 | 0.875 in | 22.23 mm | 10k | 0.2497 in | 6.34 mm | Solder Turret | 500 ppm/°C | 3/8-32 | Linear | Panel Mount | 1 | Slotted | Conductive Plastic | |||
Bourns Inc. | 22.23 mm | 0.875 " | 1 W | None | User Defined | 15 % | 1 | 0.875 in | 22.23 mm | 0.2497 in | 6.34 mm | Solder Turret | 500 ppm/°C | 3/8-32 | Linear | Panel Mount | 1 | Slotted | Conductive Plastic | 20 kOhms | Continuous | |||
Bourns Inc. | 22.23 mm | 0.875 " | 1 W | None | User Defined | 15 % | 1 | 0.875 in | 22.23 mm | 0.2497 in | 6.34 mm | Solder Turret | 500 ppm/°C | 3/8-32 | Linear | Panel Mount | 1 | Slotted | Conductive Plastic | 2 kOhms | Continuous | |||
Bourns Inc. | 22.23 mm | 0.875 " | 1 W | 340 ° | None | User Defined | 15 % | 1 | 0.875 in | 22.23 mm | 1k | 0.2497 in | 6.34 mm | Solder Turret | 500 ppm/°C | 3/8-32 | Linear | Panel Mount | 1 | Slotted | Conductive Plastic | |||
Bourns Inc. | 22.23 mm | 0.875 " | 1 W | None | User Defined | 15 % | 1 | 0.875 in | 22.23 mm | 0.2497 in | 6.34 mm | Solder Turret | 500 ppm/°C | 3/8-32 | Linear | Panel Mount | 1 | Slotted | Conductive Plastic | Continuous | 50 kOhms |
