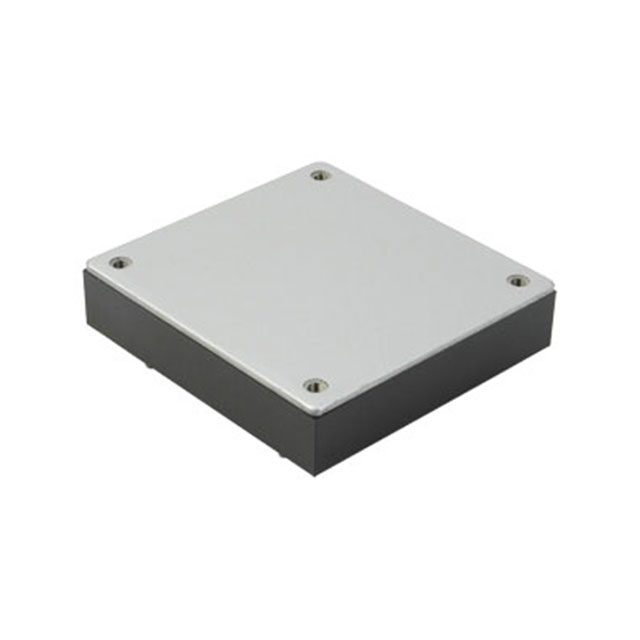

VHB200W Series
Manufacturer: CUI Inc.
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC ISOLATED, 200 W, 18-75 VDC INPUT, 12 VDC, 16.7 A, SINGLE OUTPUT, DIP
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Isolation | Efficiency | Standard Number | Current - Output (Max) [Max] | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Type | Power (Watts) | Mounting Type | Voltage - Input (Max) [Max] | Number of Outputs | Voltage - Output 1 | Voltage - Input (Min) [Min] | Package / Case | Features | Control Features | Applications | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 2.4 in | 2.28 in | 57.9 mm | 61 mm | 13.2 mm | 0.52 in | 1.5 kV | 88 % | 55024 55032 Class A 60950-1 | 16.7 A | EN UL | -40 C | 100 °C | Isolated Module | 200 Watts | Through Hole | 75 V | 1 | 12 V | 18 V | 9-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | ITE (Commercial) | |
CUI Inc. | 2.4 in | 2.28 in | 57.9 mm | 61 mm | 13.2 mm | 0.52 in | 1.5 kV | 86 % | 55024 55032 Class A 60950-1 | 13.3 A | EN UL | -40 C | 100 °C | Isolated Module | 200 Watts | Through Hole | 36 V | 1 | 15 V | 10 VDC | 9-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | ITE (Commercial) | Half Brick |
 CUI Inc. | 2.4 in | 2.28 in | 57.9 mm | 61 mm | 13.2 mm | 0.52 in | 1.5 kV | 88 % | 55024 55032 Class A 60950-1 | 8.3 A | EN UL | -40 C | 100 °C | Isolated Module | 200 Watts | Through Hole | 75 V | 1 | 24 V | 18 V | 9-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | ITE (Commercial) | |
CUI Inc. | 2.4 in | 2.28 in | 57.9 mm | 61 mm | 13.2 mm | 0.52 in | 1.5 kV | 88 % | 55024 55032 Class A 60950-1 | 13.3 A | EN UL | -40 C | 100 °C | Isolated Module | 200 Watts | Through Hole | 75 V | 1 | 15 V | 18 V | 9-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | ITE (Commercial) | |
CUI Inc. | 2.4 in | 2.28 in | 57.9 mm | 61 mm | 13.2 mm | 0.52 in | 1.5 kV | 87 % | 55024 55032 Class A 60950-1 | 8.3 A | EN UL | -40 C | 100 °C | Isolated Module | 200 Watts | Through Hole | 36 V | 1 | 24 V | 10 VDC | 9-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | ITE (Commercial) | Half Brick |
CUI Inc. | 2.4 in | 2.28 in | 57.9 mm | 61 mm | 13.2 mm | 0.52 in | 1.5 kV | 87 % | 55024 55032 Class A 60950-1 | 50 A | EN UL | -40 C | 100 °C | Isolated Module | 165 W | Through Hole | 36 V | 1 | 3.3 V | 10 VDC | 9-DIP Module | OCP OTP OVP Remote On/Off SCP | Active High Enable | ITE (Commercial) | Half Brick |
CUI Inc. | 2.4 in | 2.28 in | 57.9 mm | 61 mm | 13.2 mm | 0.52 in | 1.5 kV | 87 % | 55024 55032 Class A 60950-1 | 40 A | EN UL | -40 C | 100 °C | Isolated Module | 200 Watts | Through Hole | 36 V | 1 | 5 V | 10 VDC | 9-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | ITE (Commercial) | Half Brick |
CUI Inc. | 2.4 in | 2.28 in | 57.9 mm | 61 mm | 13.2 mm | 0.52 in | 1.5 kV | 88 % | 55024 55032 Class A 60950-1 | 7.14 A | EN UL | -40 C | 100 °C | Isolated Module | 200 Watts | Through Hole | 75 V | 1 | 28 V | 18 V | 9-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | ITE (Commercial) | |
CUI Inc. | 2.4 in | 2.28 in | 57.9 mm | 61 mm | 13.2 mm | 0.52 in | 1.5 kV | 88 % | 55024 55032 Class A 60950-1 | 40 A | EN UL | -40 C | 100 °C | Isolated Module | 132 W | Through Hole | 75 V | 1 | 3.3 V | 18 V | Half Brick | OCP OTP OVP Remote On/Off SCP | ITE (Commercial) | Half Brick | |
CUI Inc. | 2.4 in | 2.28 in | 57.9 mm | 61 mm | 13.2 mm | 0.52 in | 1.5 kV | 86 % | 55024 55032 Class A 60950-1 | 16.7 A | EN UL | -40 C | 100 °C | Isolated Module | 200 Watts | Through Hole | 36 V | 1 | 12 V | 10 VDC | 9-DIP Module | OCP OTP OVP Remote On/Off SCP UVLO | Active High Enable | ITE (Commercial) | Half Brick |
