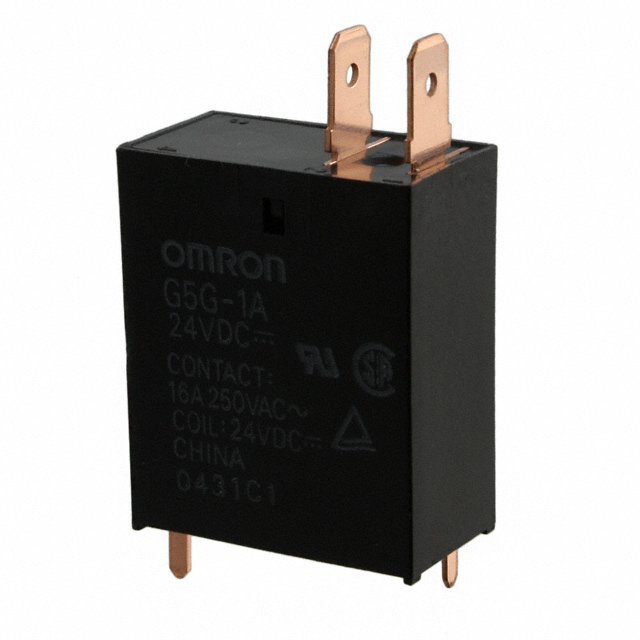

G5G-1A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 16A 24V
| Part | Coil Resistance | Contact Form | Coil Voltage | Termination Style | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Relay Type | Mounting Type | Must Operate Voltage | Load - Max Switching | Release Time | Must Release Voltage | Coil Current | Operate Time | Coil Type | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 1.15 kOhms | SPST-NO (1 Form A) | 24 VDC | 0.187 in 4.7 mm | PC Pin Quick Connect | -40 °C | 70 °C | 16 A | General Purpose | Through Hole | 16.8 VDC | 4000 VA | 5 ms | 1.2 VDC | 20.8 mA | 20 ms | Non Latching | 250 VAC |
Omron Electronics Inc-EMC Div | 1.15 kOhms | SPST-NO (1 Form A) | 24 VDC | 0.187 in 4.7 mm | PC Pin Quick Connect | -40 °C | 70 °C | 16 A | General Purpose | Through Hole | 16.8 VDC | 4000 VA | 5 ms | 1.2 VDC | 20.8 mA | 20 ms | Non Latching | 250 VAC |
Omron Electronics Inc-EMC Div | 647 Ohms | SPST-NO (1 Form A) | 18 VDC | 0.187 in 4.7 mm | PC Pin Quick Connect | -40 °C | 70 °C | 16 A | General Purpose | Through Hole | 12.6 VDC | 4000 VA | 5 ms | 0.9 VDC | 27.8 mA | 20 ms | Non Latching | 250 VAC |
