NPTC372 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

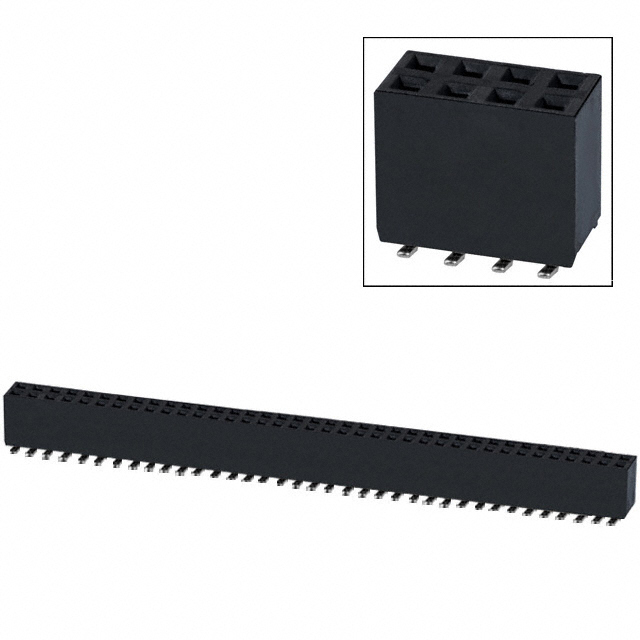

CONN HDR 74POS 0.1 TIN SMD
| Part | Contact Material | Contact Shape | Insulation Material | Material Flammability Rating | Contact Finish - Post | Insulation Height [z] | Insulation Height | Voltage Rating | Number of Positions Loaded | Contact Type | Insulation Color | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Current Rating (Amps) | Fastening Type | Pitch - Mating | Pitch - Mating | Connector Type | Termination | Number of Rows [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Square | Nylon 6T Polyamide (PA6T) | UL94 V-0 | Tin | 0.299 " | 7.6 mm | 250 V | All | Female Socket | Black | 0.1 in | 2.54 mm | Surface Mount | 3 A | Push-Pull | 0.1 " | 2.54 mm | Header | Solder | 2 | 125 °C | -40 C | 74 |
