MS3111E10 Series

Catalog

CONN RCPT MALE 6P GOLD SLDR CUP

Part	Fastening Type	Applications	Contact Finish - Mating	Features	Number of Positions	Color	Qualification	Connector Type	Grade	Shell Finish	Insert Material	Contact Material	Shell Size - Insert Length	Shell Size - Insert Width	Mounting Type	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Backshell Material	Plating	Shielding	Primary Material	Shell Material	Ingress Protection

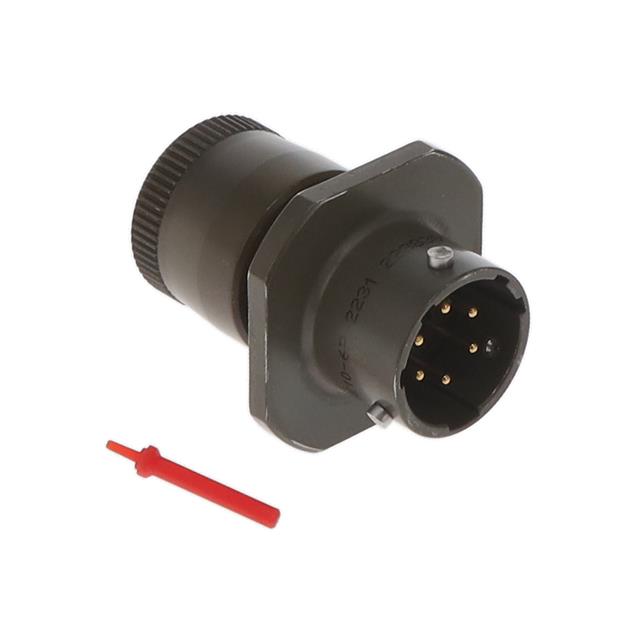

Amphenol Aerospace Operations MS3111E10-6P	Bayonet Lock	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	Backshell	6	Olive Drab	MIL-DTL-26482 Series I	Male Pins Receptacle	Military	Cadmium Olive Drab Chromate	Neoprene	Copper Alloy	10 mm	6 mm	Free Hanging (In-Line)	N (Normal)	125 °C	-55 °C	Solder Cup	Aluminum	Olive Drab Chromate over Cadmium	Unshielded	Metal	Aluminum	Environment Resistant
Amphenol Aerospace Operations MS3111E10-98P
Amphenol Aerospace Operations MS3111E10-6S	Bayonet Lock		Gold		6	Olive Drab		Female Sockets Receptacle					10 mm	6 mm	Free Hanging (In-Line)	N (Normal)			Solder Cup
Amphenol Aerospace Operations MS3111E10-6P	Bayonet Lock	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Gold	Backshell	6	Olive Drab	MIL-DTL-26482 Series I	Male Pins Receptacle	Military	Cadmium Olive Drab Chromate	Neoprene	Copper Alloy	10 mm	6 mm	Free Hanging (In-Line)	N (Normal)	125 °C	-55 °C	Solder Cup	Aluminum	Olive Drab Chromate over Cadmium	Unshielded	Metal	Aluminum	Environment Resistant
Amphenol Aerospace Operations MS3111E10-6S
