PPTC052 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 10POS 0.1 TIN PCB R/A

Part	Contact Material	Insulation Material	Contact Shape	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Number of Positions Loaded	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Voltage Rating	Current Rating (Amps)	Termination	Mounting Type	Contact Finish - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Connector Type	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height

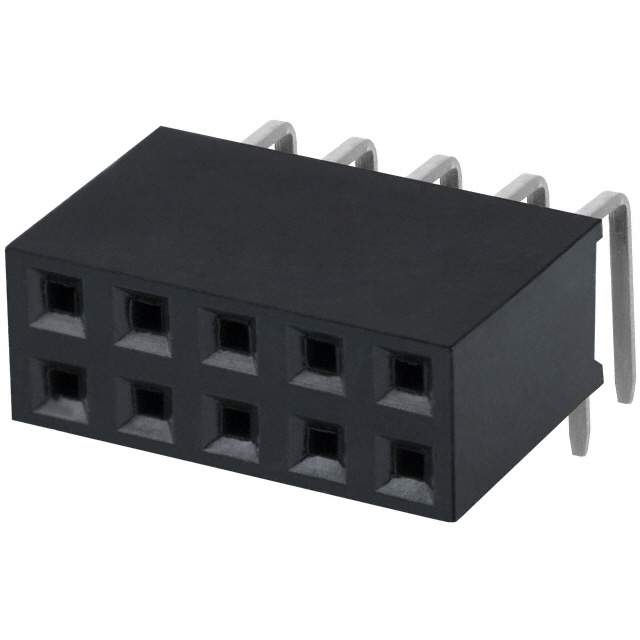

Sullins Connector Solutions PPTC052LJBN	Phosphor Bronze	Polyester	Square	0.2 in	5.08 mm	0.1 in	2.54 mm	Black	All	Push-Pull	-40 C	105 ░C	2	250 V	3 A	Solder	Right Angle Through Hole	Tin	10	0.1 "	2.54 mm	0.124 in	3.15 mm	UL94 V-0	Header	Female Socket

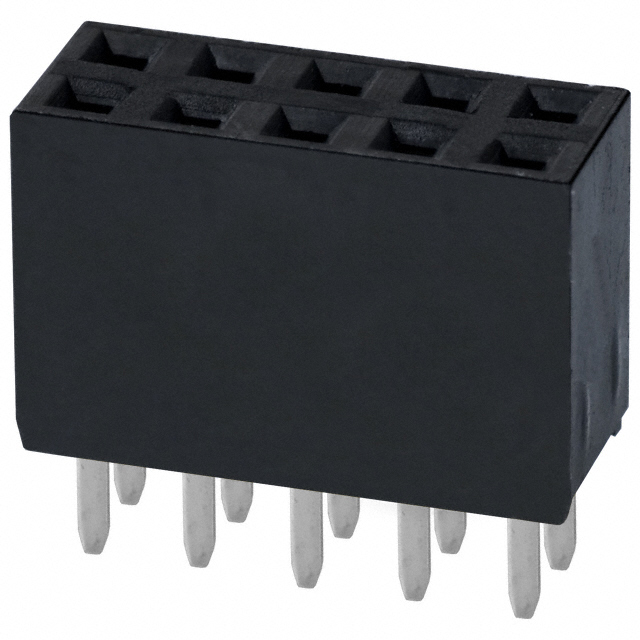

Sullins Connector Solutions PPTC052LFBN-RC	Phosphor Bronze	Polyester	Square			0.1 in	2.54 mm	Black	All	Push-Pull	-40 C	105 ░C	2	250 V	3 A	Solder	Through Hole	Tin	10	0.1 "	2.54 mm			UL94 V-0	Header	Female Socket	0.126 "	3.2 mm	0.335 "	8.51 mm
Sullins Connector Solutions PPTC052KFMS	Phosphor Bronze	Polyester	Square	0.299 "		0.1 in	2.54 mm	Black	All	Push-Pull	-40 C	125 °C	2	250 V	3 A	Solder	Surface Mount	Tin	10	0.1 "	2.54 mm			UL94 V-0	Header	Female Socket				7.6 mm
Sullins Connector Solutions PPTC052LFBN	Phosphor Bronze	Polyester	Square			0.1 in	2.54 mm	Black	All	Push-Pull	-40 C	105 ░C	2	250 V	3 A	Solder	Through Hole	Tin	10	0.1 "	2.54 mm			UL94 V-0	Header	Female Socket	0.126 "	3.2 mm	0.335 "	8.51 mm
Sullins Connector Solutions PPTC052LJBN-RC	Phosphor Bronze	Polyester	Square	0.2 in	5.08 mm	0.1 in	2.54 mm	Black	All	Push-Pull	-40 C	105 ░C	2	250 V	3 A	Solder	Right Angle Through Hole	Tin	10	0.1 "	2.54 mm	0.124 in	3.15 mm	UL94 V-0	Header	Female Socket
