111504 Series

Catalog

IDC CONNECTOR, IDC PLUG, MALE, 2.54 MM, 2 ROW, 14 CONTACTS, CABLE MOUNT

Part	Connector Type	Contact Finish	Number of Rows [custom]	Number of Positions	Pitch	Pitch	Cable Termination	Row Spacing	Row Spacing	Features	Fastening Type	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Contact Type	Color	Mounting Type

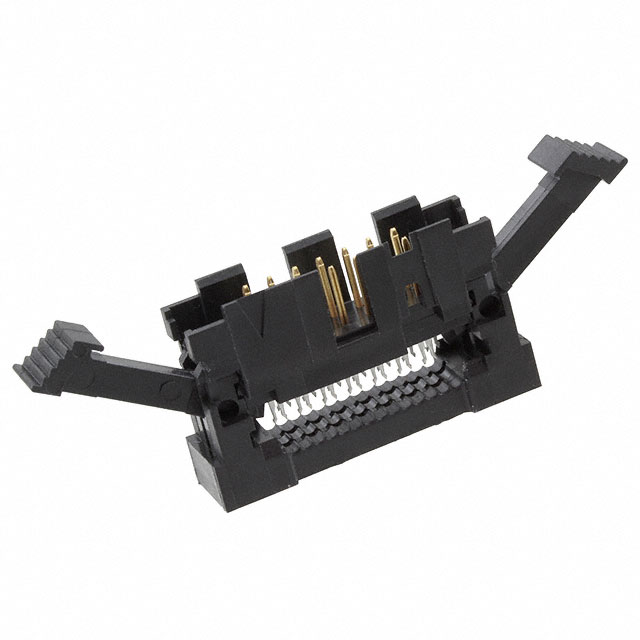

TE Connectivity AMP Connectors 1-111504-5	Plug	Gold	2	14	0.1 "	2.54 mm	IDC	2.54 mm	0.1 "	Feed Through	Latch Lock/Eject Hooks	30 Áin	0.76 Ám	Ribbon Cable	Male Pin	Black	Free Hanging (In-Line)

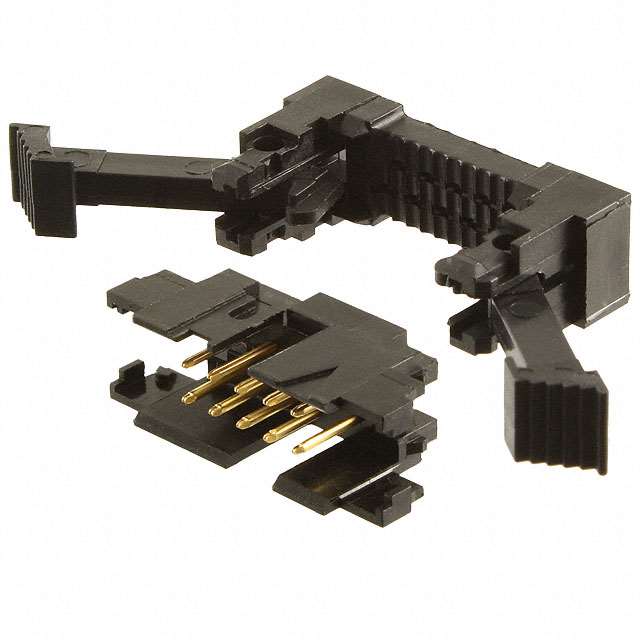

TE Connectivity AMP Connectors 1-111504-4	Plug	Gold	2	10	0.1 "	2.54 mm	IDC	2.54 mm	0.1 "	Feed Through	Latch Lock/Eject Hooks	30 Áin	0.76 Ám	Ribbon Cable	Male Pin	Black	Free Hanging (In-Line)

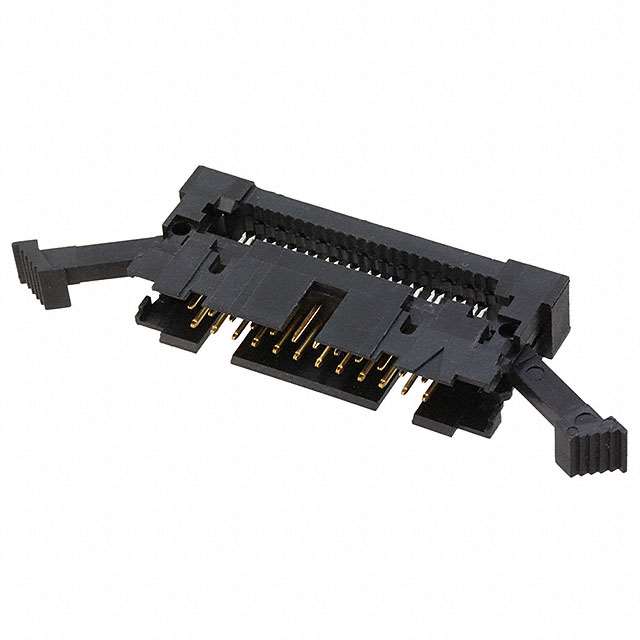

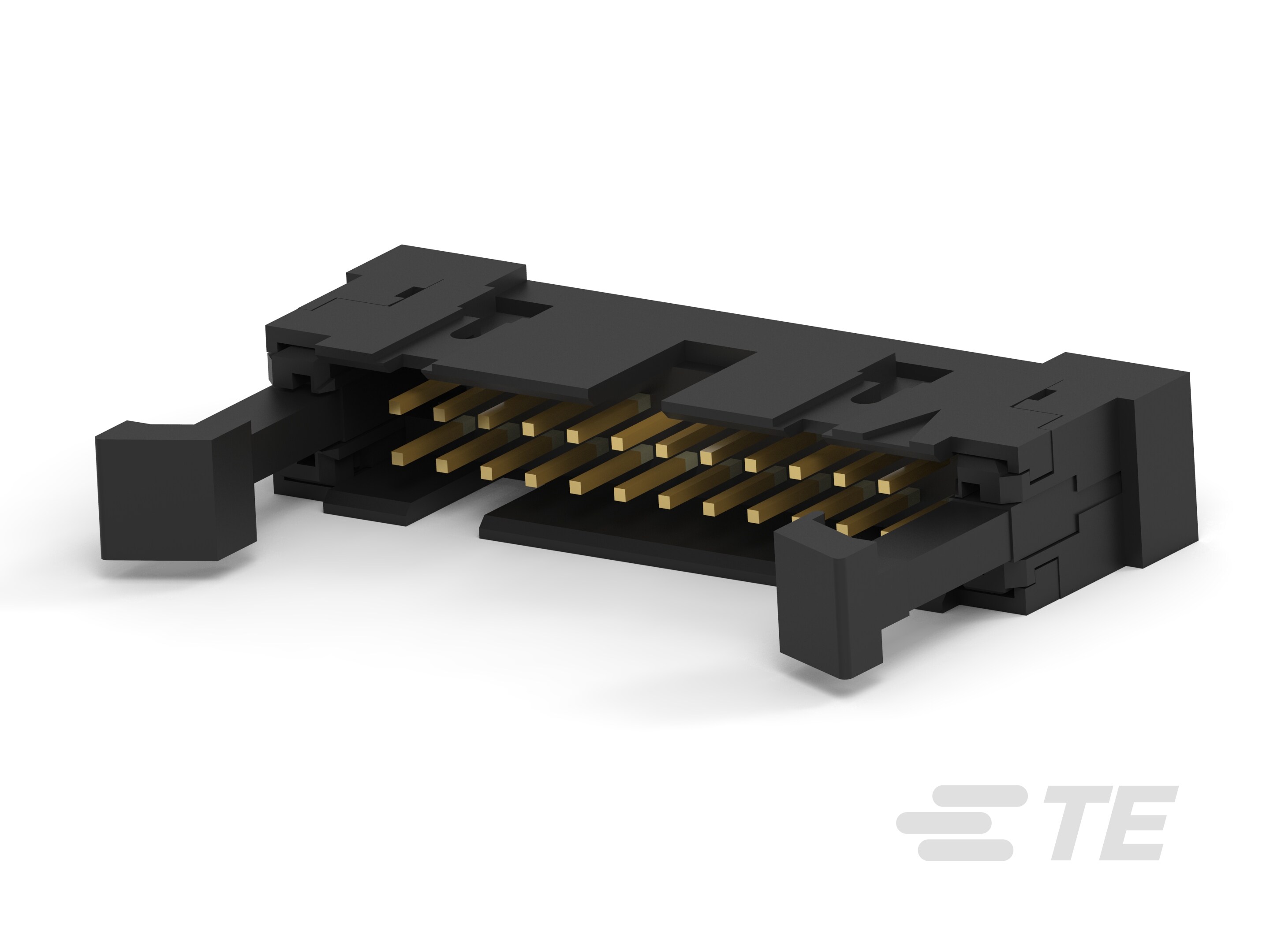

TE Connectivity AMP Connectors 1-111504-8	Plug	Gold	2	24	0.1 "	2.54 mm	IDC	2.54 mm	0.1 "	Feed Through	Latch Lock/Eject Hooks	30 Áin	0.76 Ám	Ribbon Cable	Male Pin	Black	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-111504-6	Plug	Gold	2	16	0.1 "	2.54 mm	IDC	2.54 mm	0.1 "	Feed Through	Latch Lock/Eject Hooks	30 Áin	0.76 Ám	Ribbon Cable	Male Pin	Black	Free Hanging (In-Line)
