053375 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 2POS 2.5MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Material	Style	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Shape	Number of Positions	Shrouding	Connector Type	Insulation Height	Insulation Height	Mounting Type	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Voltage Rating	Contact Finish - Post	Termination	Applications	Number of Positions Loaded	Number of Rows	Fastening Type	Features	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Molex 0533750284	-40 °C	105 ░C	Male Pin	UL94 V-0	0.134 in	3.4 mm	Blue	Phosphor Bronze	Board to Cable/Wire	Polybutylene Terephthalate (PBTP) Glass Filled	2.5 mm	0.098 in	Circular	2	Shrouded - 4 Wall	Header	11.5 mm	0.453 in	Through Hole	Varies by Wire Gauge	4 mm	0.157 in	250 VAC	Tin	Kinked Pin Solder	General Purpose Industrial	All	1	Locking Ramp	Board Guide
Molex 0533750290	-40 °C	105 ░C	Male Pin	UL94 V-0	0.11 in		White	Phosphor Bronze	Board to Cable/Wire	Polybutylene Terephthalate (PBTP)	2.5 mm	0.098 in	Circular	2	Shrouded - 4 Wall	Header	11.5 mm	0.453 in	Through Hole	Varies by Wire Gauge	4 mm	0.157 in	250 VDC	Tin	Solder	General Purpose Industrial	All	1	Locking Ramp	Board Guide	2.79 mm
Molex 0533750483	-40 °C	105 ░C	Male Pin	UL94 V-0	0.134 in	3.4 mm	Yellow	Phosphor Bronze	Board to Cable/Wire	Polybutylene Terephthalate (PBTP) Glass Filled	2.5 mm	0.098 in	Circular	4	Shrouded - 4 Wall	Header	11.5 mm	0.453 in	Through Hole	Varies by Wire Gauge	4 mm	0.157 in	250 VAC	Tin	Kinked Pin Solder	General Purpose Industrial	All	1	Locking Ramp	Board Guide

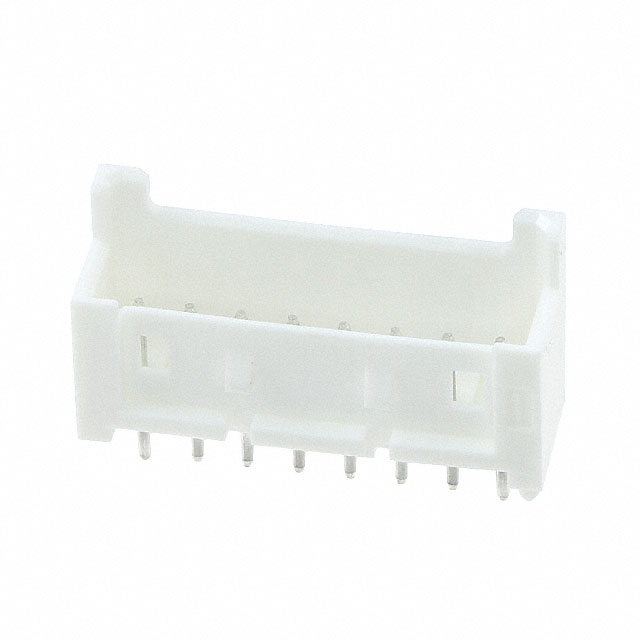

Molex 0533750810	-40 °C	105 ░C	Male Pin	UL94 V-0	0.134 in	3.4 mm	White	Phosphor Bronze	Board to Cable/Wire	Polybutylene Terephthalate (PBTP) Glass Filled	2.5 mm	0.098 in	Circular	8	Shrouded - 4 Wall	Header	11.5 mm	0.453 in	Through Hole	Varies by Wire Gauge	4 mm	0.157 in	250 VDC	Tin	Kinked Pin Solder	General Purpose Industrial	All	1	Locking Ramp	Board Guide		1 µm	39.4 µin
Molex 0533750581	-40 °C	105 ░C	Male Pin	UL94 V-0	0.134 in	3.4 mm	Black	Phosphor Bronze	Board to Cable/Wire	Polybutylene Terephthalate (PBTP) Glass Filled	2.5 mm	0.098 in	Circular		Shrouded - 4 Wall	Header	11.5 mm	0.453 in	Through Hole	Varies by Wire Gauge	4 mm	0.157 in	250 VAC	Tin	Kinked Pin Solder	General Purpose Industrial	All	1	Locking Ramp	Board Guide

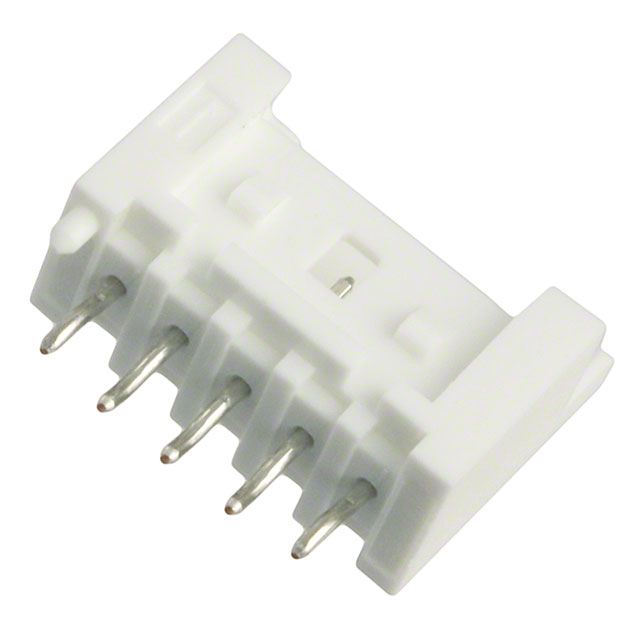

Molex 0533750510	-40 °C	105 ░C	Male Pin	UL94 V-0	0.134 in	3.4 mm	White	Phosphor Bronze	Board to Cable/Wire	Polybutylene Terephthalate (PBTP) Glass Filled	2.5 mm	0.098 in	Circular		Shrouded - 4 Wall	Header	11.5 mm	0.453 in	Through Hole	Varies by Wire Gauge	4 mm	0.157 in	250 VDC	Tin	Kinked Pin Solder	General Purpose Industrial	All	1	Locking Ramp	Board Guide		1 µm	39.4 µin
Molex 0533750390	-40 °C	105 ░C	Male Pin	UL94 V-0	0.11 in		White	Phosphor Bronze	Board to Cable/Wire	Polybutylene Terephthalate (PBTP) Glass Filled	2.5 mm	0.098 in	Circular		Shrouded - 4 Wall	Header	11.5 mm	0.453 in	Through Hole	Varies by Wire Gauge	4 mm	0.157 in	250 VAC	Tin	Solder	General Purpose Industrial	All	1	Locking Ramp		2.79 mm
Molex 0533750782	-40 °C	105 ░C	Male Pin	UL94 V-0	0.134 in	3.4 mm	Red	Phosphor Bronze	Board to Cable/Wire	Polybutylene Terephthalate (PBTP) Glass Filled	2.5 mm	0.098 in	Circular	7	Shrouded - 4 Wall	Header	11.5 mm	0.453 in	Through Hole	Varies by Wire Gauge	4 mm	0.157 in	250 VAC	Tin	Kinked Pin Solder	General Purpose Industrial	All	1	Locking Ramp	Board Guide
Molex 0533750289	-40 °C	105 ░C	Male Pin	UL94 V-0	0.134 in	3.4 mm	Violet	Phosphor Bronze	Board to Cable/Wire	Polybutylene Terephthalate (PBTP) Glass Filled	2.5 mm	0.098 in	Circular	2	Shrouded - 4 Wall	Header	11.5 mm	0.453 in	Through Hole	Varies by Wire Gauge	4 mm	0.157 in	250 VAC	Tin	Kinked Pin Solder	General Purpose Industrial	All	1	Locking Ramp	Board Guide
Molex 0533750682	-40 °C	105 ░C	Male Pin	UL94 V-0	0.134 in	3.4 mm	Red	Phosphor Bronze	Board to Cable/Wire	Polybutylene Terephthalate (PBTP) Glass Filled	2.5 mm	0.098 in	Circular	6	Shrouded - 4 Wall	Header	11.5 mm	0.453 in	Through Hole	Varies by Wire Gauge	4 mm	0.157 in	250 VAC	Tin	Kinked Pin Solder	General Purpose Industrial	All	1	Locking Ramp	Board Guide
