CR0201 Series

Catalog

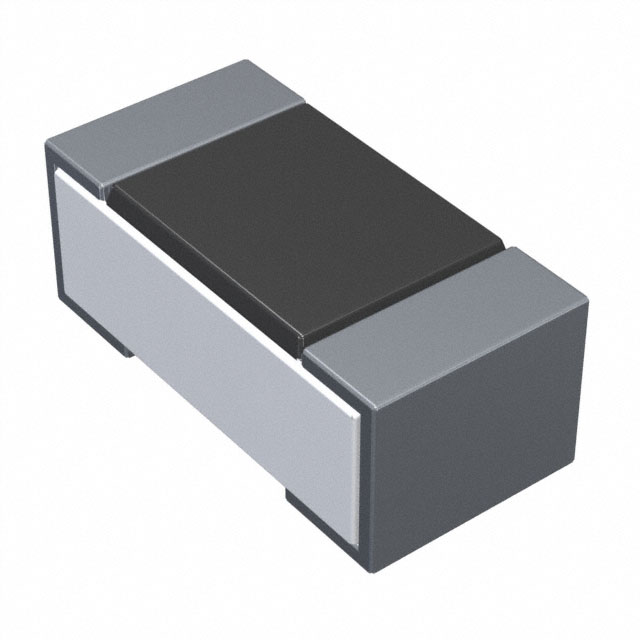

SMD CHIP RESISTOR, 4.7 KOHM, ± 1%, 50 MW, 0201 [0603 METRIC], THICK FILM, GENERAL PURPOSE

Part	Temperature Coefficient	Tolerance	Resistance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Supplier Device Package	Number of Terminations [custom]	Power (Watts)	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Bourns Inc. CR0201-FW-4701GLF	200 ppm/°C	1 %	4.7 kOhms	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	0.05 W	50 mW	-55 C	125 °C	Thick Film	0.01 in	0.26 mm
Bourns Inc. CR0201-FW-2402GLF	200 ppm/°C	1 %	24 kOhms	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	0.05 W	50 mW	-55 C	125 °C	Thick Film	0.01 in	0.26 mm
Bourns Inc. CR0201-FW-4302GLF	200 ppm/°C	1 %	43 kOhms	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	0.05 W	50 mW	-55 C	125 °C	Thick Film	0.01 in	0.26 mm
Bourns Inc. CR0201-FW-1740GLF	200 ppm/°C	1 %	174 Ohms	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	0.05 W	50 mW	-55 C	125 °C	Thick Film	0.01 in	0.26 mm
Bourns Inc. CR0201-FW-9092GLF	200 ppm/°C	1 %	90.9 kOhms	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	0.05 W	50 mW	-55 C	125 °C	Thick Film	0.01 in	0.26 mm
Bourns Inc. CR0201-JW-104GLF	200 ppm/°C	5 %	100 kOhms	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	0.05 W	50 mW	-55 C	125 °C	Thick Film	0.01 in	0.26 mm
Bourns Inc. CR0201-JW-301GLF	200 ppm/°C	5 %	300 Ohms	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	0.05 W	50 mW	-55 C	125 °C	Thick Film	0.01 in	0.26 mm
Bourns Inc. CR0201-JW-390GLF	200 ppm/°C	5 %	39 Ohms	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	0.05 W	50 mW	-55 C	125 °C	Thick Film	0.01 in	0.26 mm
Bourns Inc. CR0201-FW-5493GLF	200 ppm/°C	1 %	549 kOhms	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	0.05 W	50 mW	-55 C	125 °C	Thick Film	0.01 in	0.26 mm
Bourns Inc. CR0201-FW-4300GLF	200 ppm/°C	1 %	430 Ohms	0.012 in	0.024 in	0.3 mm	0.6 mm	0603 Metric	0201	0201	2	0.05 W	50 mW	-55 C	125 °C	Thick Film	0.01 in	0.26 mm
