PEN.1F Series
Manufacturer: LEMO
Beta
⌘K

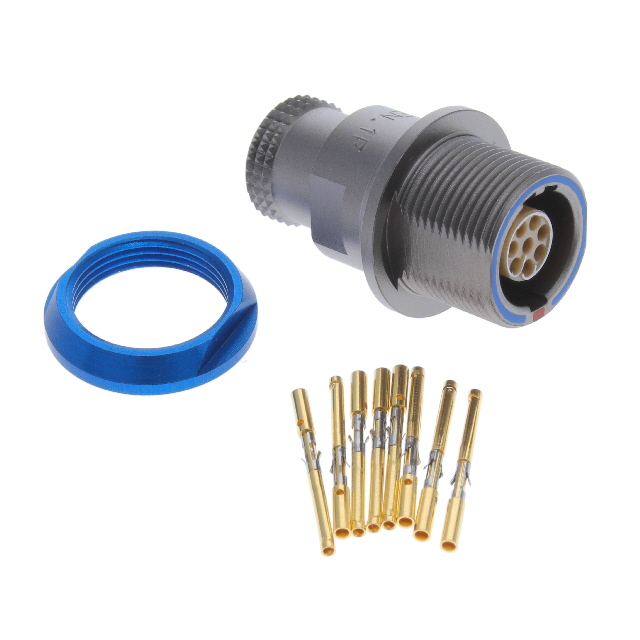

CONN RCPT FMALE 8POS GOLD CRIMP
| Part | Color | Applications | Current Rating (Amps) | Insert Material | Primary Material | Shielding | Number of Positions | Shell Size - Insert | Fastening Type | Orientation | Termination | Contact Finish - Mating | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Connector Type | Contact Material | Mounting Type | Shell Finish | Cable Opening | Cable Opening | Material Flammability Rating | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Gray | Aerospace | 5 A | Polyetheretherketone (PEEK) | Metal | Shielded | 8 | 308 | Push-Pull | N (Normal) | Crimp | Gold | Aluminum Alloy | -15 °C | 200 °C | 1.5 Ám | 59 Áin | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Bronze | Panel Mount | Nickel | 10.7 mm | 0.421 in | UL94 V-0 | Bulkhead - Front Side Nut |
LEMO | Gray | Aerospace | 9 A | Polyetheretherketone (PEEK) | Metal | Shielded | 5 | 305 | Push-Pull | N (Normal) | Crimp | Gold | Aluminum Alloy | -15 °C | 200 °C | 1.5 Ám | 59 Áin | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | Bronze | Panel Mount | Nickel | 10.7 mm | 0.421 in | UL94 V-0 | Bulkhead - Front Side Nut |
