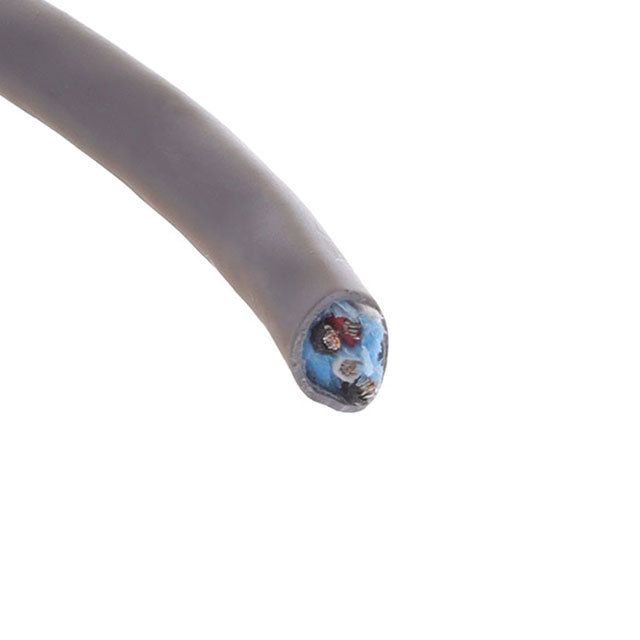

5032C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 4COND 18AWG BLK 1000'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Usage | Features | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket (Insulation) Material | Length | Length | Conductor Insulation | Spool Size [x] | Spool Size [x] | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 16 | 30 AWG | ISO 10993 | Multi-Pair | -35 °C | 105 ░C | 18 AWG | 300 VDC | 0.813 mm | 0.032 in | Black | Communication Control | Biological Compatibility Rip Cord | 4 | 8.31 mm | 0.327 " | Copper Tinned | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | |||||
 ALPHA WIRE | 16 | 30 AWG | ISO 10993 | Multi-Pair | -35 °C | 105 ░C | 18 AWG | 300 VDC | 0.813 mm | 0.032 in | Slate | Communication Control | Biological Compatibility Rip Cord | 4 | 8.31 mm | 0.327 " | Copper Tinned | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Enter Number of Feet in Order Quantity | ||||
ALPHA WIRE | 16 | 30 AWG | ISO 10993 | Multi-Pair | -35 °C | 105 ░C | 18 AWG | 300 VDC | 0.813 mm | 0.032 in | Slate | Communication Control | Biological Compatibility Rip Cord | 4 | 8.31 mm | 0.327 " | Copper Tinned | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | |||||
ALPHA WIRE | 16 | 30 AWG | ISO 10993 | Multi-Pair | -35 °C | 105 ░C | 18 AWG | 300 VDC | 0.813 mm | 0.032 in | Slate | Communication Control | Biological Compatibility Rip Cord | 4 | 8.31 mm | 0.327 " | Copper Tinned | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
