TB1-2D Series

Catalog

VAC DPDT ON-ON, TABS, 15/32

Part	Panel Cutout Diameter	Panel Cutout Shape	Actuator Type	Actuator Length	Quick Connect Size (0.250")	Termination Style	Voltage Rating - AC	Switch Function	Illumination	Bushing Thread	Mounting Type	Circuit	Current Rating	Electrical Life (Cycles)	Voltage Rating - DC

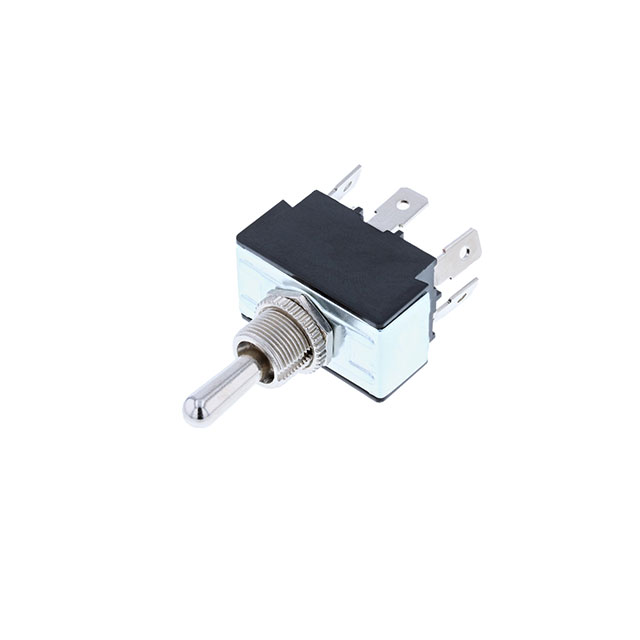

Switch Components TB1-2D-AC-1	12.2 mm	Circular	Standard Round	16.5 mm	0.25 in	Quick Connect	250 V	On-On	Non-Illuminated	15/32-32	Panel Mount	DPDT	10 A
Switch Components TB1-2D-DC-1	12 mm	Circular	Standard Round	16.5 mm	0.25 in	Quick Connect	125 V	On-On	Non-Illuminated	15/32-32	Panel Mount	DPDT	20 A 21 A	6000 Cycles	14 V

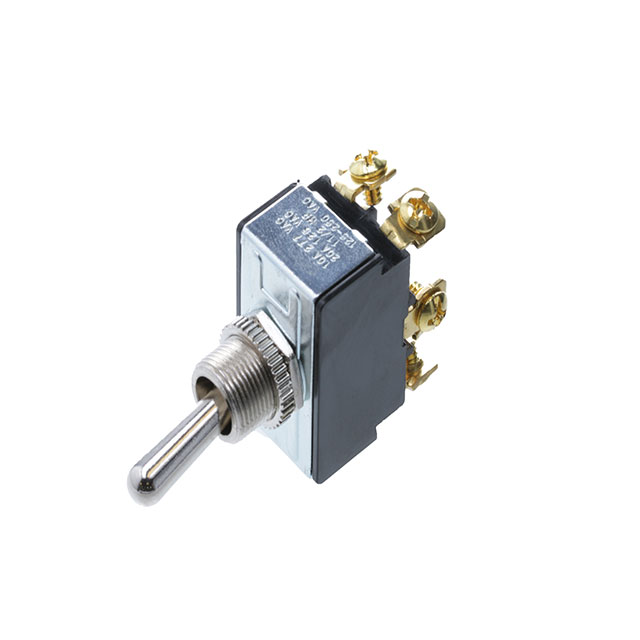

Switch Components TB1-2D-AC-6	12.2 mm	Circular	Standard Round	16.5 mm		Screw Terminal	250 V	On-On	Non-Illuminated	15/32-32	Panel Mount	DPDT	10 A
Switch Components TB1-2D-DC-6	12 mm	Circular	Standard Round	16.5 mm		Screw Terminal	125 V	On-On	Non-Illuminated	15/32-32	Panel Mount	DPDT	20 A 21 A	6000 Cycles	14 V

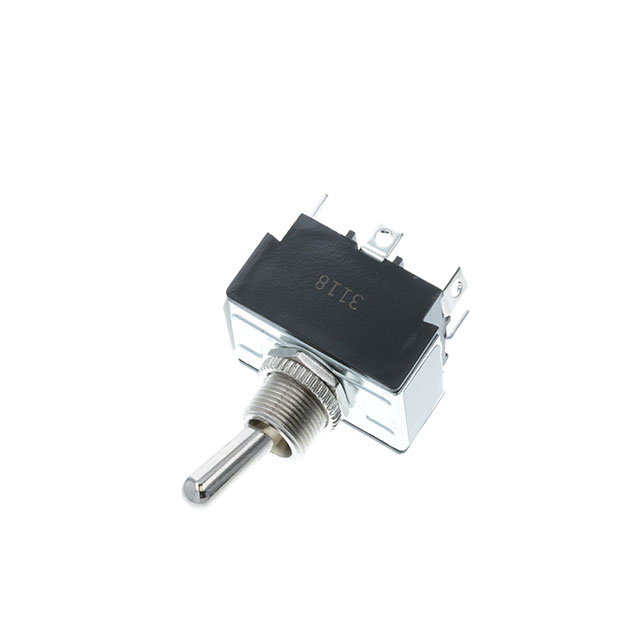

Switch Components TB1-2D-AC-5	12.2 mm	Circular	Standard Round	16.5 mm		Solder Lug	250 V	On-On	Non-Illuminated	15/32-32	Panel Mount	DPDT	10 A
