09K246 Series
Manufacturer: Rosenberger
Beta
⌘K

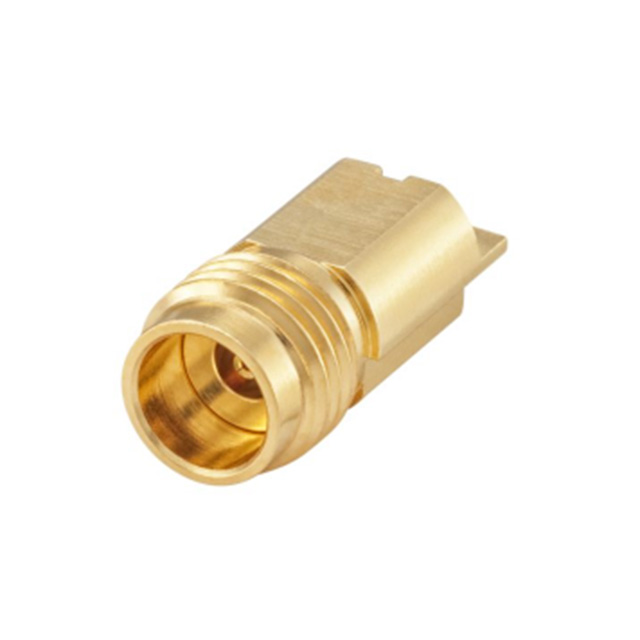

CONN RPC2.40 JCK ST 50OHM EDGEMT
| Part | Body Finish | Body Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Mating Cycles | Dielectric Material | Mounting Type | Center Contact Material | Connector Type | Connector Style [x] | Connector Style | Connector Style | Fastening Type | Impedance | Number of Ports | Frequency - Max [Max] | Housing Color | Shield Termination | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | Brass | 150 VDC | 85 °C | -40 C | Gold | 500 | Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE) | Board Edge Cutout Surface Mount | Beryllium Copper | Female Socket Jack | 2.4 mm | OS-50 | APC-2.4 | Threaded | 50 Ohms | 1 | 50 GHz | Gold | Solder | Solder |
