GST25U48 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

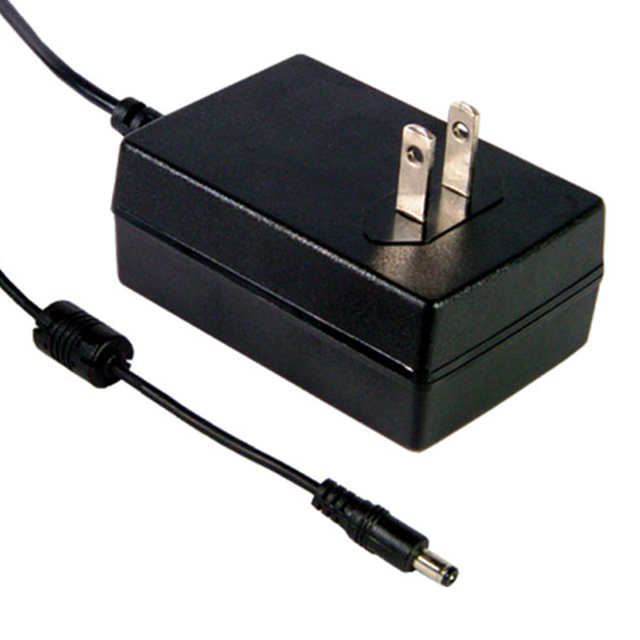

AC/DC WALL MOUNT ADAPTER 48V 25W
| Part | Input Type | Efficiency | Region Utilized | Output Connector [x] | Output Connector [diameter] | Output Connector | No Load Power Consumption | Operating Temperature [Min] | Operating Temperature [Max] | Polarization | Current - Output (Max) [Max] | Cord Length | Cord Length | Approval Agency | Applications | Input Connector | Form | Voltage - Output | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Fixed Blade | Level VI | North America | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 75 mW | -30 ░C | 70 °C | Positive Center | 520 mA | 70.9 " | 1.8 m | BSMI CB cULus EAC | ITE (Commercial) | NEMA 1-15P | Wall Mount | 48 V | 33 mm | 1.3 in | 3.11 in | 79 mm | 54 mm | 2.13 in | 25 W |
