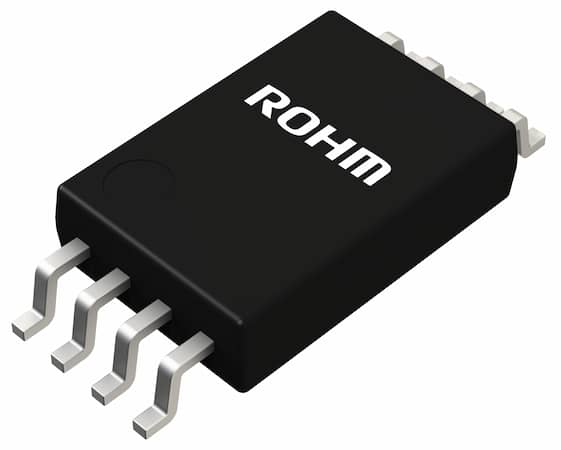

LMR822FV Series

LMR™ Series, Low Supply Current Output Full Swing Operational Amplifier

Catalog

LMR™ Series, Low Supply Current Output Full Swing Operational Amplifier

Part	Amplifier Type	Current - Output / Channel	Mounting Type	Output Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Slew Rate	Voltage - Supply Span (Max) [Max]	Gain Bandwidth Product	Package / Case	Voltage - Input Offset	Current - Input Bias	Current - Supply	Voltage - Supply Span (Min) [Min]	Package / Case	Package / Case
Rohm Semiconductor LMR822FV-GE2	General Purpose	45 mA	Surface Mount	Rail-to-Rail	8-SSOP-B	85 °C	-40 °C	2	2 V/µs	5.5 V	5.5 MHz	8-LSSOP (0.173" 4.40mm Width)	1 mV	40 nA	650 µA	2.5 V
Rohm Semiconductor LMR822F-GE2	General Purpose	45 mA	Surface Mount	Rail-to-Rail	8-SOP	85 °C	-40 °C	2	2 V/µs	5.5 V	5.5 MHz	8-SOIC	1 mV	40 nA	650 µA	2.5 V	0.173 in	4.4 mm

Catalog

LMR™ Series, Low Supply Current Output Full Swing Operational Amplifier

Key Features

• Low operating supply voltage, Output Full Swing, High large signal voltage gain, High Slew Rate, Low supply current

Description

LMR822FV is the operational amplifier of the output full swing. It is the operational amplifier which is good at low voltage operation, a low supply current consumption, a high voltage gain, a high slew rate particularly is most suitable for a mobile equipment and a low voltage application, an active filter.
