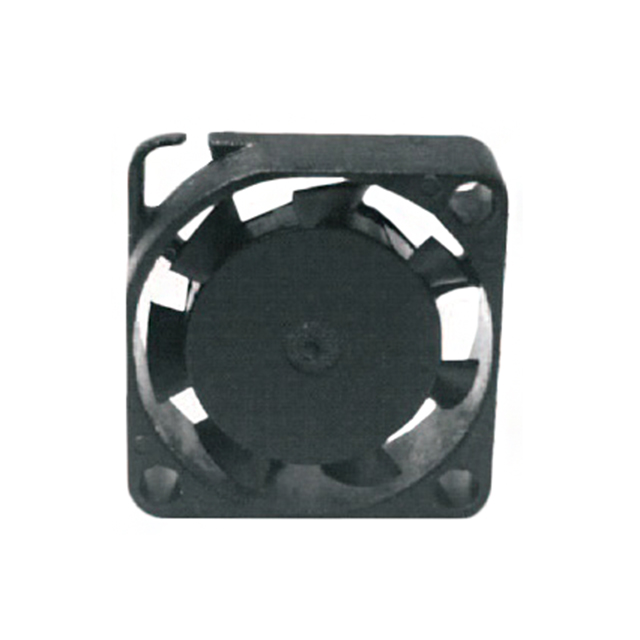

MS2006 Series

Catalog

FAN AXIAL 20X6.5MM 12VDC WIRE

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Approval Agency	Noise	RPM	Bearing Type	Width [x]	Fan Type	Air Flow	Air Flow	Weight	Weight	Termination	Static Pressure	Static Pressure	Features	Voltage - Rated	Size / Dimension [x]	Size / Dimension [z]
Mechatronics Fan Group MS2006M12D1-RSR	Plastic	Plastic	40 mA	CE cUL TUV UL	21 dB(A)	8000 RPM	Sleeve	6.5 mm	Tubeaxial	0.022 m³/min	0.78 CFM	0.007 lb	3.18 g	3 Wire Leads	0.08 in H2O	20 Pa	Speed Sensor (Tach)	12 VDC	20 mm	20 mm
Mechatronics Fan Group MS2006E12D1-RSR	Plastic	Plastic	100 mA	CE cUL TUV UL	31 dB(A)	12000 RPM	Sleeve	6.5 mm	Tubeaxial	0.031 m³/min	1.1 CFM	0.007 lb	3.18 g	3 Wire Leads	0.11 in H2O	27.4 Pa	Speed Sensor (Tach)	12 VDC	20 mm	20 mm
Mechatronics Fan Group MS2006E12B2-RSR	Plastic	Plastic	100 mA	CE cUL TUV UL	31 dB(A)	12000 RPM	Ball	6.5 mm	Tubeaxial	0.031 m³/min	1.1 CFM	0.007 lb	3.18 g	3 Wire Leads	0.11 in H2O	27.4 Pa	Locked Rotor Sensor	12 VDC	20 mm	20 mm
Mechatronics Fan Group MS2006M05D1-RSR	Plastic	Plastic	40 mA	CE cUL TUV UL	21 dB(A)	8000 RPM	Sleeve	6.5 mm	Tubeaxial	0.022 m³/min	0.78 CFM	0.007 lb	3.18 g	3 Wire Leads	0.08 in H2O	20 Pa	Speed Sensor (Tach)	12 VDC	20 mm	20 mm
Mechatronics Fan Group MS2006H12D1-RSR	Plastic	Plastic	60 mA	CE cUL TUV UL	26 dB	10000 RPM	Sleeve	6.5 mm	Tubeaxial	0.028 m³/min	1 CFM	0.007 lb	3.18 g	3 Wire Leads	0.09 in H2O	22.4 Pa	Speed Sensor (Tach)	12 VDC	20 mm	20 mm
Mechatronics Fan Group MS2006H12D-RSR	Plastic	Plastic	60 mA	CE cUL TUV UL	26 dB	10000 RPM	Sleeve	6.5 mm	Tubeaxial	0.028 m³/min	1 CFM	0.007 lb	3.18 g	2 Wire Leads	0.09 in H2O	22.4 Pa		12 VDC	20 mm	20 mm
Mechatronics Fan Group MS2006M12D-RSR	Plastic	Plastic	40 mA	CE cUL TUV UL	21 dB(A)	8000 RPM	Sleeve	6.5 mm	Tubeaxial	0.022 m³/min	0.78 CFM	0.007 lb	3.18 g	2 Wire Leads	0.08 in H2O	20 Pa		12 VDC	20 mm	20 mm
Mechatronics Fan Group MS2006M05D-RSR	Plastic	Plastic	40 mA	CE cUL TUV UL	21 dB(A)	8000 RPM	Sleeve	6.5 mm	Tubeaxial	0.022 m³/min	0.78 CFM	0.007 lb	3.18 g	2 Wire Leads	0.08 in H2O	20 Pa		12 VDC	20 mm	20 mm
