ZOV320K Series

Catalog

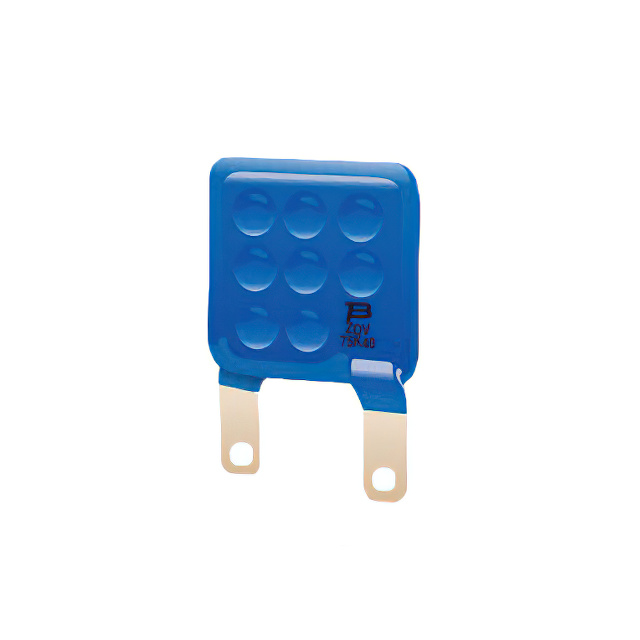

VARISTOR 320 K 40 E

Part	Varistor Voltage (Max) [Max]	Number of Circuits	Capacitance @ Frequency	Maximum AC Volts [Max]	Energy	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Typ)	Mounting Type	Current - Surge	Package / Case	Varistor Voltage (Min) [Min]	Maximum DC Volts [Max]
Bourns Inc. ZOV320K40E	561 V	1	3050 pF	320 V	1620 J	85 C	-40 ¯C	510 V	Through Hole	45 kA	Square 40mm Tabs	459 V	420 V
Bourns Inc. ZOV320K25E	561 V	1	1240 pF	320 V	680 J	85 C	-40 ¯C	510 V	Through Hole	20 kA	Square 25mm Tabs	459 V	420 V
