9740MN Series

Catalog

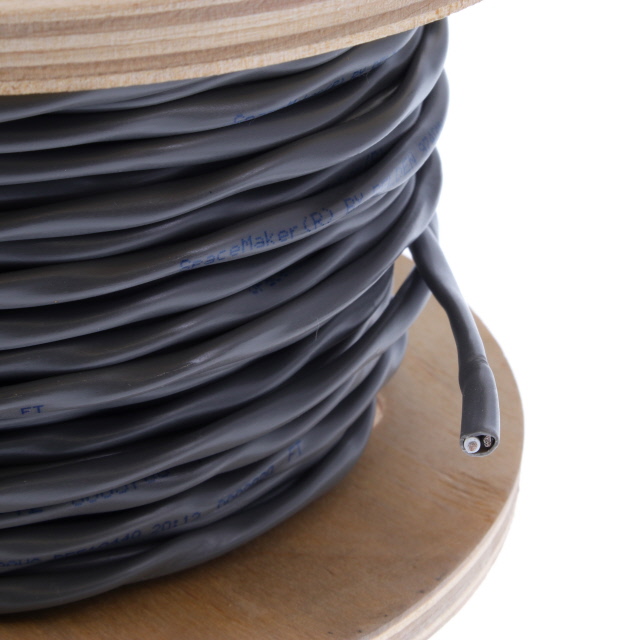

CABLE 2COND 18AWG GRAY

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Cable Type	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Usage	Jacket Color	Conductor Insulation	Number of Conductors	Wire Gauge	Length	Length	Voltage	Ratings
Belden Inc. 9740MN 008100	0.406 mm	0.016 in	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	100 ft	30.5 m	41	34	0.166 in	4.22 mm	Copper Tinned	Audio Control Instrumentation	Gray	Polypropylene (PP)	2	18 AWG
Belden Inc. 9740MN 0081000	0.406 mm	0.016 in	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Multi-Conductor			41	34	0.166 in	4.22 mm	Copper Tinned	Audio Control Instrumentation	Gray	Polypropylene (PP)	2	18 AWG	304.8 m	1000 ft	300 VDC	UL Style 2937
Belden Inc. 9740MN 0061000	0.406 mm	0.016 in	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Multi-Conductor			41	34	0.166 in	4.22 mm	Copper Tinned	Audio Control Instrumentation	Blue	Polypropylene (PP)	2	18 AWG	304.8 m	1000 ft	300 VDC	UL Style 2937
Belden Inc. 9740MN 006100	0.406 mm	0.016 in	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	100 ft	30.5 m	41	34	0.166 in	4.22 mm	Copper Tinned	Audio Control Instrumentation	Blue	Polypropylene (PP)	2	18 AWG			300 VDC	UL Style 2937
