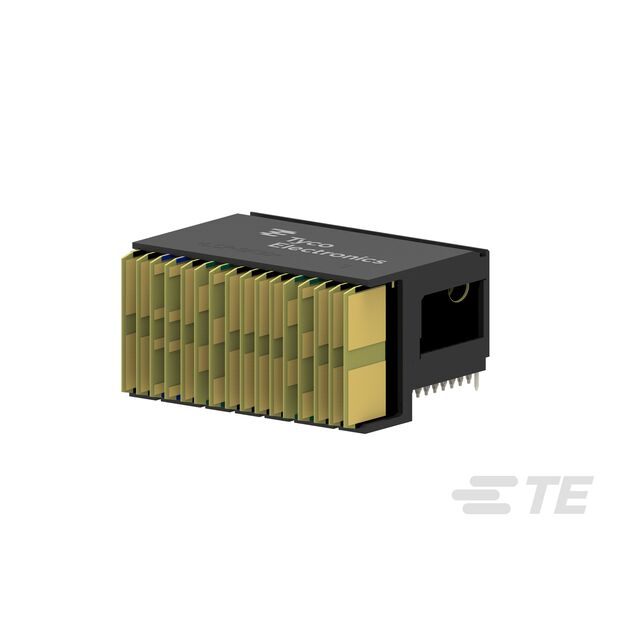

2286117 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
MULTIGIG RT2-R,DC, SPACE VPX-MOD
| Part | Termination | Contact Finish | Pitch [x] | Pitch [x] | Number of Positions | Features | Connector Usage | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Mounting Type | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Material Flammability Rating | Number of Positions Loaded | Color | Number of Columns | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Press-Fit | Gold | 0.071 in | 1.8 mm | 112 | Board Guide | Daughtercard | 8 | 10 | 20 | 14 | 12 | Board Edge Right Angle Through Hole | 16 A | 50 µin | 1.27 µm | 7 | UL94 V-0 | 102 | Black | 16 | Plug Male Blades | 105 ░C | -55 °C |
