G41MA7-P Series
Manufacturer: ODU
Beta
⌘K
ODU MEDI-SNAP RECEPT, STY 4, SZ
| Part | Color | Connector Type | Shell Size - Insert | Insert Material | Number of Positions | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Shell Material | Shielding | Mounting Type | Current Rating (Amps) | Material Flammability Rating | Contact Material | Voltage Rating | Orientation | Contact Finish - Mating | Applications | Mounting Feature | Fastening Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

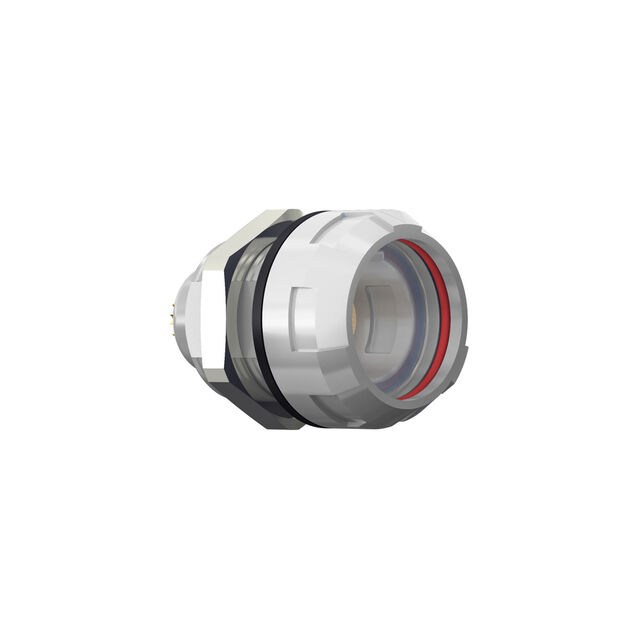

Gray White | Receptacle Female Sockets | 1 | Polyetheretherketone (PEEK) | 12 | IP64/IP67 | 120 °C | -50 °C | Plastic | Polysulfone (PSU) | Unshielded | Panel Mount | 4 A | UL94 V-0 | Brass | 25 V | A | Gold | Industrial Medical Testing Equipment & Measurement | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | ||
Gray White | Receptacle Female Sockets | 1 | Polyetheretherketone (PEEK) | 4 | IP64/IP67 | 120 °C | -50 °C | Plastic | Polysulfone (PSU) | Unshielded | Panel Mount | 7.5 A | UL94 V-0 | Brass | 48 VDC | A | Gold | Industrial Medical Testing Equipment & Measurement | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | Crimp | |

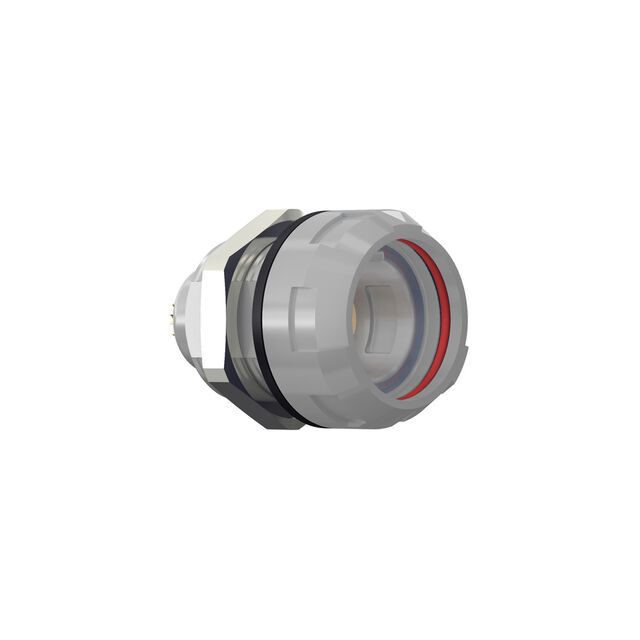

Gray | Receptacle Female Sockets | 1 | Polyetheretherketone (PEEK) | 14 | IP64/IP67 | 120 °C | -50 °C | Plastic | Polysulfone (PSU) | Unshielded | Panel Mount Through Hole | 4 A | UL94 V-0 | Brass | 25 V | A | Gold | Industrial Medical Testing Equipment & Measurement | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | Solder | |
Gray White | Receptacle Female Sockets | 1 | Polyetheretherketone (PEEK) | 4 | IP64/IP67 | 120 °C | -50 °C | Plastic | Polysulfone (PSU) | Unshielded | Panel Mount | 7.5 A | UL94 V-0 | Brass | 48 VDC | A | Gold | Industrial Medical Testing Equipment & Measurement | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | ||
Gray Green | Receptacle Female Sockets | 1 | Polyetheretherketone (PEEK) | 2 | IP64/IP67 | 120 °C | -50 °C | Plastic | Polysulfone (PSU) | Unshielded | Panel Mount | 12 Amps | UL94 V-0 | Brass | 48 VDC | A | Gold | Industrial Medical Testing Equipment & Measurement | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | ||
Gray | Receptacle Female Sockets | 1 | Polyetheretherketone (PEEK) | 5 | IP64/IP67 | 120 °C | -50 °C | Plastic | Polysulfone (PSU) | Unshielded | Panel Mount | 7.5 A | UL94 V-0 | Brass | 35 V | A | Gold | Industrial Medical Testing Equipment & Measurement | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | ||

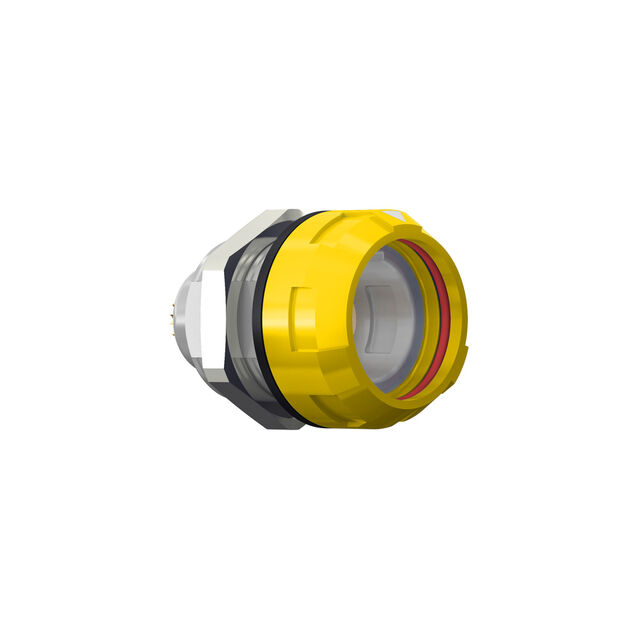

Gray Yellow | Receptacle Female Sockets | 1 | Polyetheretherketone (PEEK) | 5 | IP64/IP67 | 120 °C | -50 °C | Plastic | Polysulfone (PSU) | Unshielded | Panel Mount | 7.5 A | UL94 V-0 | Brass | 35 V | A | Gold | Industrial Medical Testing Equipment & Measurement | Bulkhead - Rear Side Nut | Detent Lock Push-Pull | ||

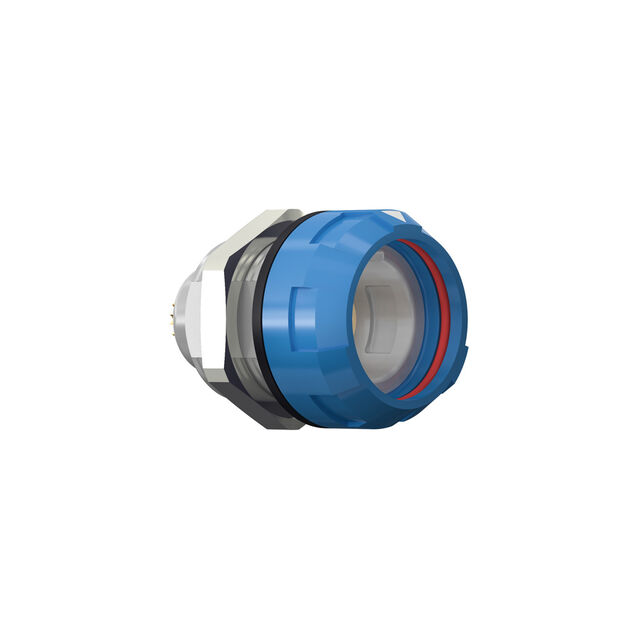

Blue Gray | Receptacle Female Sockets | 1 | Polyetheretherketone (PEEK) | 6 | IP64/IP67 | 120 °C | -50 °C | Plastic | Polysulfone (PSU) | Unshielded | Panel Mount | 7.5 A | UL94 V-0 | Brass | 33 V | A | Gold | Industrial Medical Testing Equipment & Measurement | Bulkhead - Rear Side Nut | Detent Lock Push-Pull |
