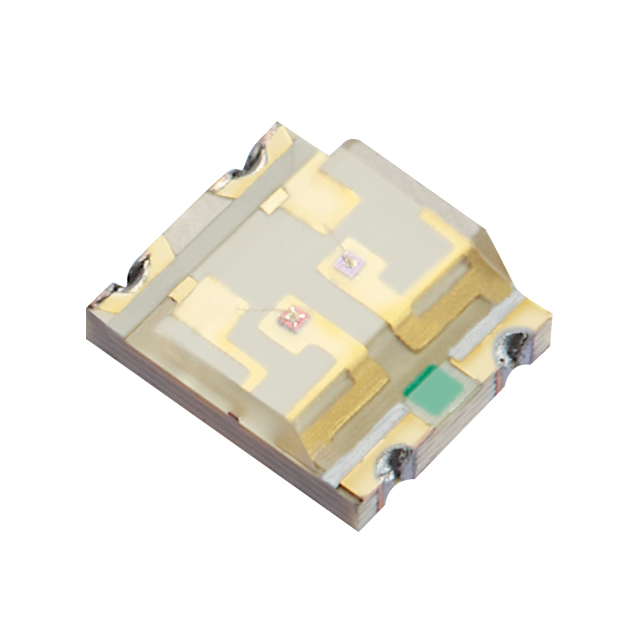

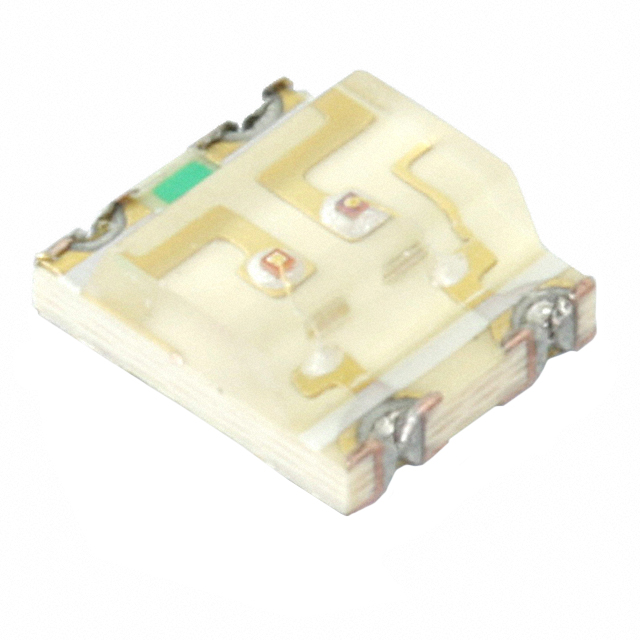

APB3025 Series

Catalog

LED GREEN/ORANGE CLEAR SMD

Part	Lens Color	Height (Max) [z]	Package / Case	Package / Case	Mounting Type	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test	Wavelength - Peak	Color	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Lens Size [x]	Lens Size [y]	Viewing Angle	Supplier Device Package	Configuration	Lens Style	Lens Transparency	Wavelength - Dominant	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Wavelength - Dominant	Current - Test	Millicandela Rating	Wavelength - Peak	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
Kingbright APB3025SEKCGKC-F01	Colorless	1.1 mm	1210	3225 Metric	Surface Mount	60 mcd	300 mcd	20mA Green 20mA Orange	574 nm 610 nm	Green Orange	2.1 V 2.1 V	3 mm	2.5 mm	2.5 mm	1.5 mm	160 °	SMD	Independent	Rectangle with Flat Top	Clear	570 nm 605 nm
Kingbright APB3025ESGC-F01	Colorless	1.1 mm	4-SMD No Lead		Surface Mount	15 mcd			565 nm 627 nm	Green Red	2 V 2.2 V	3 mm	2.5 mm	2 mm	2.5 mm	120 °	4-SMD	Independent	Rectangle with Flat Top	Clear	568 nm 617 nm	20 mA	20 mA	8 mcd
Kingbright APB3025ESGC	Colorless	1.1 mm	4-SMD No Lead		Surface Mount	12 mcd			565 nm 627 nm	Green Red	2 V 2.2 V	3 mm	2.5 mm	2 mm	2.5 mm	120 °	SMD	Independent	Rectangle with Flat Top	Clear		20 mA	20 mA	12 mcd	568nm Green 625nm Red
Kingbright APB3025EYC-F01	Colorless	1.1 mm	4-SMD No Lead		Surface Mount				590 nm 627 nm	Red Yellow	2 V 2.1 V	3 mm	2.5 mm	2 mm	2.5 mm	120 °	4-SMD	Independent	Rectangle with Flat Top	Clear					588nm Yellow 617nm Red	20 mA 20 mA	8 mcd 10 mcd
Kingbright APB3025SURKCGKC-F01	Colorless	1.1 mm	4-SMD No Lead		Surface Mount	60 mcd			574 nm 645 nm	Green Red	1.95 V 2.1 V	3 mm	2.5 mm	2 mm	2.5 mm	160 °	4-SMD	Independent	Rectangle with Flat Top	Clear		20 mA	20 mA	70 mcd	570nm Green 630nm Red
Kingbright APB3025YSGC-F01	Colorless	1.1 mm	4-SMD No Lead		Surface Mount					Green Yellow	2.1 V 2.2 V	3 mm	2.5 mm	2 mm	2.5 mm	120 °	4-SMD	Independent	Rectangle with Flat Top	Clear					568nm Green 588nm Yellow	20 mA 20 mA	10 mcd 15 mcd	565nm Green 590nm Yellow
Kingbright APB3025SYKCGKC-F01	Colorless	1.1 mm	1210	3225 Metric	Surface Mount					Green Yellow		3 mm	2.5 mm	2.5 mm	1.5 mm	160 °	SMD	Independent	Rectangle with Flat Top	Clear	570 nm 590 nm					20 mA 20 mA	60 mcd 120 mcd	574nm Green 590nm Yellow	2.1 V	2 V
