82729 Series
Manufacturer: Belden Inc.
Beta
⌘K

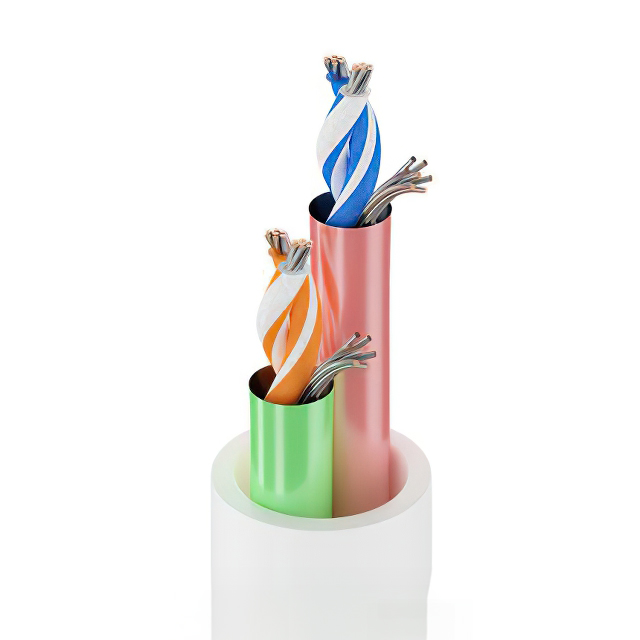

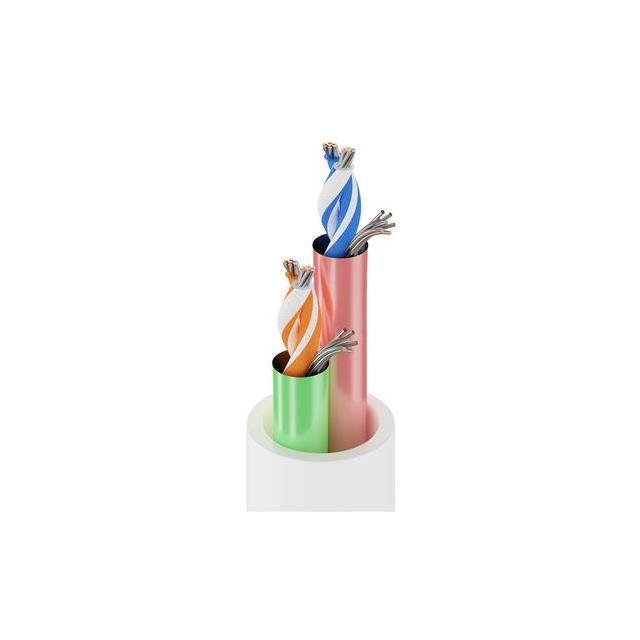

MULTI-PAIR 4COND 24AWG NAT
| Part | Shield Coverage | Shield Material | Cable Type | Shield Type | Jacket (Insulation) Material | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Wire Gauge | Voltage | Features | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Multi-Pair | Foil | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 304.8 m | 1000 ft | 6.48 mm | 0.255 in | 4 | 0.014 in | 0.356 mm | Natural | 7 | 32 AWG | 75 ░C | 0 °C | Foam Fluorinated Ethylene-Propylene (FFEP) | 24 AWG | 300 VDC | Drain Wire | Copper Tinned |
 Belden Inc. | 100 % | Aluminum | Multi-Pair | Foil | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 304.8 m | 1000 ft | 6.48 mm | 0.255 in | 4 | 0.014 in | 0.356 mm | Natural | 7 | 32 AWG | 75 ░C | 0 °C | Foam Fluorinated Ethylene-Propylene (FFEP) | 24 AWG | 300 VDC | Drain Wire | Copper Tinned |
