3128-5 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

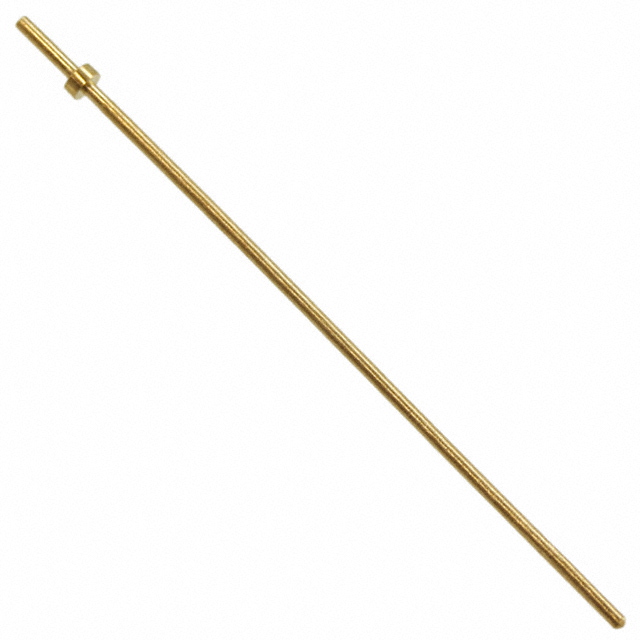

CONN PC PIN CIRC 0.020DIA GOLD
| Part | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Style | Length - Overall [x] | Length - Overall [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Terminal Type | Mounting Type | Contact Finish | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | 0.02 in | 0.51 mm | 0.93 in | 23.62 mm | 0.61 mm | 0.024 in | 2.54 mm | 0.1 " | Single End | 26.67 mm | 1.05 in | 0.25 Ám | 10 Áin | Brass Alloy | 0.046 " | 1.17 mm | Solder | PC Pin | Through Hole | Gold | 0.02 in | 0.51 mm |
 Mill-Max Manufacturing Corp. | Non-Insulated | 0.02 in | 0.51 mm | 0.93 in | 23.62 mm | 0.61 mm | 0.024 in | 2.54 mm | 0.1 " | Single End | 26.67 mm | 1.05 in | 0.51 µm | 20 µin | Brass Alloy | 0.046 " | 1.17 mm | Solder | PC Pin | Through Hole | Gold | 0.02 in | 0.51 mm |
Mill-Max Manufacturing Corp. | Non-Insulated | 0.02 in | 0.51 mm | 0.93 in | 23.62 mm | 0.61 mm | 0.024 in | 2.54 mm | 0.1 " | Single End | 26.67 mm | 1.05 in | 1.27 µm | 50 µin | Brass Alloy | 0.046 " | 1.17 mm | Solder | PC Pin | Through Hole | Gold | 0.02 in | 0.51 mm |
Mill-Max Manufacturing Corp. | Non-Insulated | 0.02 in | 0.51 mm | 0.93 in | 23.62 mm | 0.61 mm | 0.024 in | 2.54 mm | 0.1 " | Single End | 26.67 mm | 1.05 in | 5.08 Ám | 200 Áin | Brass Alloy | 0.046 " | 1.17 mm | Solder | PC Pin | Through Hole | Tin-Lead | 0.02 in | 0.51 mm |
