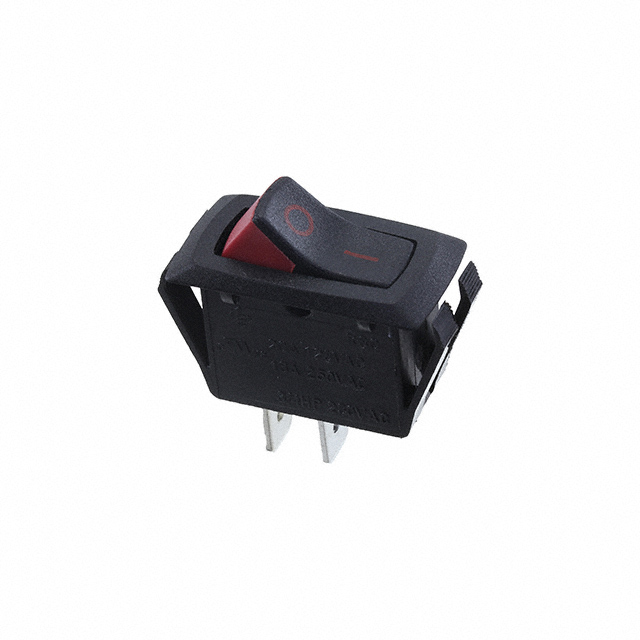

RSC141D Series

Manufacturer: E-Switch

Catalog

SWITCH ROCKER SPST 20A 125V

Part	Electrical Life	Mounting Type	Current Rating (Amps)	Termination Style	Voltage Rating - AC	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Actuator Marking	Features	Approval Agency	Circuit	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Type, Color	Illumination Voltage (Nominal)

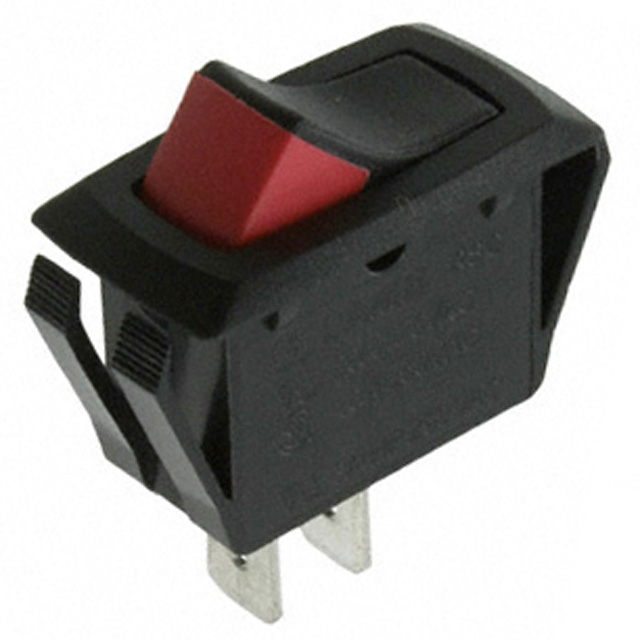

E-Switch RSC141D1A00	10000 Cycles	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)	125 V	Black Red	-20 ░C	105 ░C	On-Off	No Marking	Two-Tone Rocker	CSA UL	SPST	Concave (Curved)	13.9 mm	28.6 mm

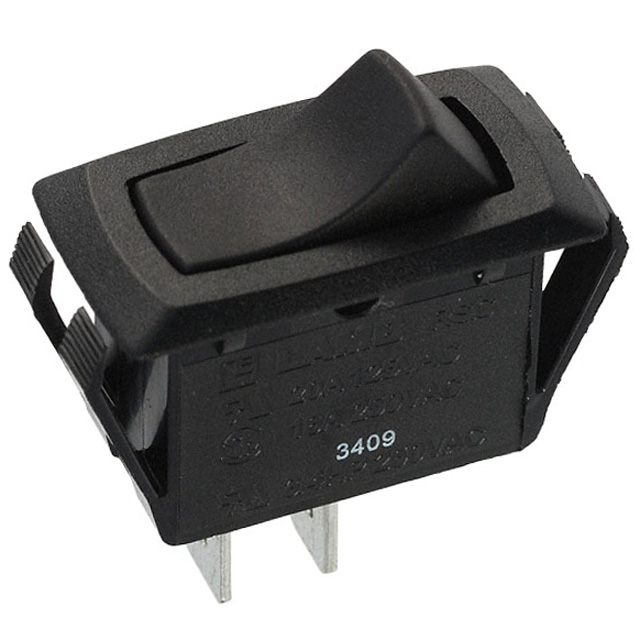

E-Switch RSC141D1100	10000 Cycles	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)	125 V	Black	-20 ░C	105 ░C	On-Off	No Marking		CSA UL	SPST	Concave (Curved)	13.9 mm	28.6 mm

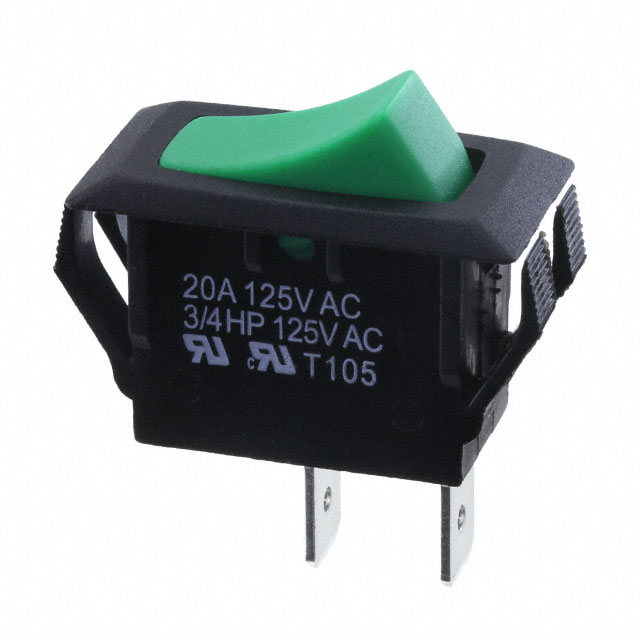

E-Switch RSC141D1800	10000 Cycles	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)	125 V	Green	-20 ░C	105 ░C	On-Off	No Marking		CSA UL	SPST	Concave (Curved)	13.9 mm	28.6 mm
E-Switch RSC141D1000-124	10000 Cycles	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)	125 V	Amber	-20 ░C	105 ░C	On-Off	No Marking		CSA UL	SPST	Concave (Curved) - Illuminated	13.9 mm	28.6 mm	Amber Incandescent	12 VDC

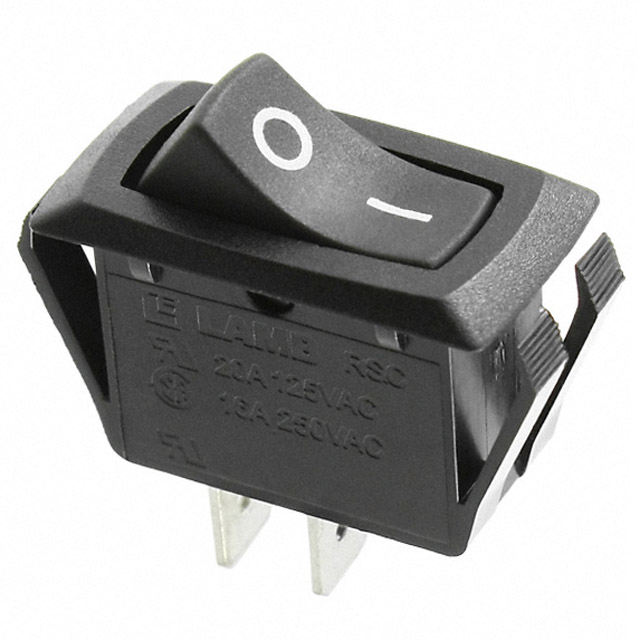

E-Switch RSC141D1121	10000 Cycles	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)	125 V	Black	-20 ░C	105 ░C	On-Off	O -		CSA UL	SPST	Concave (Curved)	13.9 mm	28.6 mm
E-Switch RSC141D1A81	10000 Cycles	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)	125 V	Black Red	-20 ░C	105 ░C	On-Off	O -	Two-Tone Rocker	CSA UL	SPST	Concave (Curved)	13.9 mm	28.6 mm

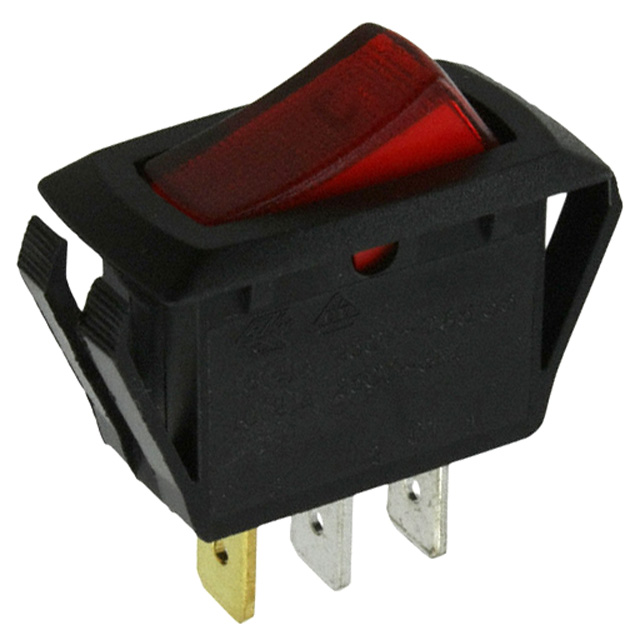

E-Switch RSC141D1000-116	10000 Cycles	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)	125 V	Red	-20 ░C	105 ░C	On-Off	No Marking		CSA UL	SPST	Concave (Curved) - Illuminated	13.9 mm	28.6 mm	Neon Red	125 VAC
E-Switch RSC141D1A83	10000 Cycles	Panel Mount Snap-In	20 A	Quick Connect - 0.250" (6.3mm)	125 V	Black Red	-20 ░C	105 ░C	On-Off	ON OFF	Two-Tone Rocker	CSA UL	SPST	Concave (Curved)	13.9 mm	28.6 mm
