NCP585 Series

Linear Voltage Regulator, Tri-Mode, CMOS LDO, 300 mA, with Enable

Catalog

Linear Voltage Regulator, Tri-Mode, CMOS LDO, 300 mA, with Enable

Part	Output Type	Current - Supply (Max) [Max]	Mounting Type	Current - Output	Output Configuration	Voltage - Input (Max) [Max]	Voltage Dropout (Max) [Max]	Package / Case	Voltage - Output (Min/Fixed)	Supplier Device Package	Control Features	Current - Quiescent (Iq)	Number of Regulators	PSRR [Max]	PSRR [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features
ON Semiconductor NCP585LSN09T1	1.81 mOhm	111 µA	Surface Mount	300 mA	Positive	6 V	0.8 V	SC-74A SOT-753	0.9 V	SOT-23-5	Enable	90 çA	1	65 dB	75 dB	85 °C	-40 °C	Over Current
ON Semiconductor NCP585HSN12T1	1.81 mOhm	111 µA	Surface Mount	300 mA	Positive	6 V	0.7 V	SC-74A SOT-753	1.2 V	SOT-23-5	Enable	90 çA	1			85 °C	-40 °C	Over Current
ON Semiconductor NCP585DSN125T1G	1.81 mOhm	111 µA	Surface Mount	300 mA	Positive	6 V	0.7 V	SC-74A SOT-753	1.25 V	SOT-23-5	Enable	90 çA	1			85 °C	-40 °C	Over Current
ON Semiconductor NCP585LSN09T1G	1.81 mOhm	111 µA	Surface Mount	300 mA	Positive	6 V	0.8 V	SC-74A SOT-753	0.9 V	SOT-23-5	Enable	90 çA	1	65 dB	75 dB	85 °C	-40 °C	Over Current
ON Semiconductor NCP585HSN18T1	1.81 mOhm	111 µA	Surface Mount	300 mA	Positive	6 V	0.45 V	SC-74A SOT-753	1.8 V	SOT-23-5	Enable	90 çA	1			85 °C	-40 °C	Over Current
ON Semiconductor NCP585LSN12T1G	1.81 mOhm	111 µA	Surface Mount	300 mA	Positive	6 V	0.75 V	SC-74A SOT-753	1.2 V	SOT-23-5	Enable	90 çA	1			85 °C	-40 °C	Over Current

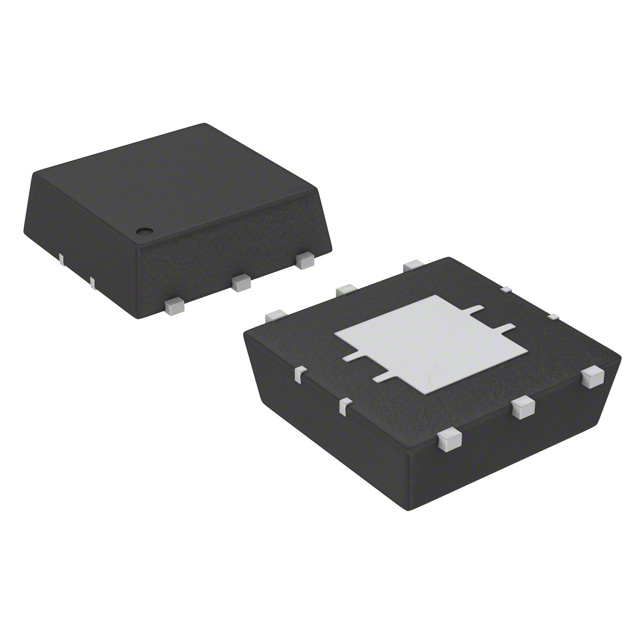

ON Semiconductor NCP585DSAN18T1G	1.81 mOhm	111 µA	Surface Mount	300 mA	Positive	6 V	0.45 V	6-VQFN Exposed Pad	1.8 V	6-HSON (2.9x3)	Enable	90 çA	1			85 °C	-40 °C	Over Current
ON Semiconductor NCP585DSN18T1G	1.81 mOhm	111 µA	Surface Mount	300 mA	Positive	6 V	0.45 V	SC-74A SOT-753	1.8 V	SOT-23-5	Enable	90 çA	1			85 °C	-40 °C	Over Current
ON Semiconductor NCP585LSN18T1G	1.81 mOhm	111 µA	Surface Mount	300 mA	Positive	6 V	0.48 V	SC-74A SOT-753	1.8 V	SOT-23-5	Enable	90 çA	1			85 °C	-40 °C	Over Current
ON Semiconductor NCP585HSN09T1	1.81 mOhm	111 µA	Surface Mount	300 mA	Positive	6 V	0.78 V	SC-74A SOT-753	0.9 V	SOT-23-5	Enable	90 çA	1	65 dB	75 dB	85 °C	-40 °C	Over Current

Catalog

Linear Voltage Regulator, Tri-Mode, CMOS LDO, 300 mA, with Enable

Key Features

• Low Dropout Voltage of 480 mV at 300 mA, Output Voltage = 1.0 V; 310 mV at 300 mA, Output Voltage = 1.5 V; 230 mV at 300 mA, Output Voltage = 3.0 V

• Excellent Line and Load Regulation

• High Output Voltage Accuracy of 2% (3% LP mode)

• UltraLow Supply Current of:3.5 uA (LP mode, Output Voltage < 1.6 V)80 uA (FT mode, Output Voltage < 1.8 V)60 uA (FT mode, Output Voltage 1.8 V)

• Excellent Power Supply Rejection Ratio of 65 dB

• Output Voltage Options: 0.9, 1.2, 1.25, 1.5, 1.8, 2.5 and 2.8 V

• Low Temperature Drift Coefficient on the Output Voltage

• Low Quiescent of 0.1 uA

• Fold Back Protection Circuit

Description

The NCP585 low dropout (LDO) linear voltage regulator is designed for portable battery powered applications which require precise output voltage accuracy, low supply current, and high ripple rejection.These devices feature an enable function which lowers current consumption significantly and are offered in the SOT23¿5 and the HSON¿6 packages.This series of devices have three modes. Chip Enable (CE mode), Fast Transient Mode (FT mode), and Low Power Mode (LP mode). Both the FT and LP mode are utilized via the ECO pin.
