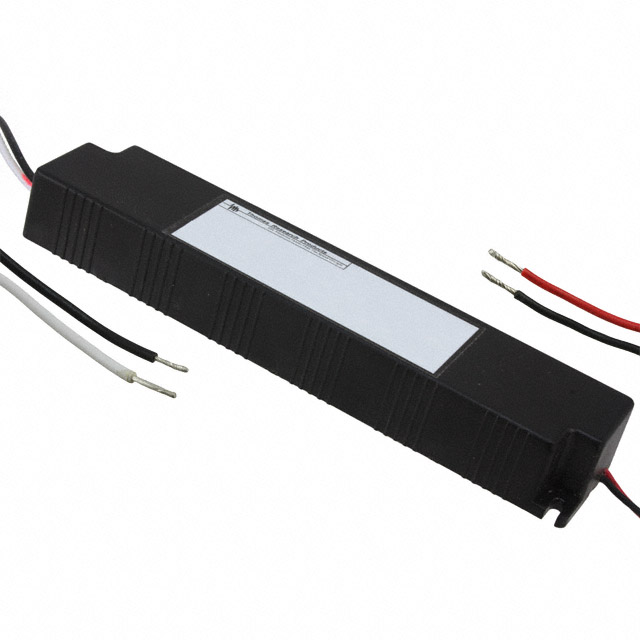

LED50W Series

Catalog

LED DRIVER CV AC/DC 24V 2.1A

Part	Mounting Type	Power (Watts)	Termination Style	Voltage - Input (Max) [Max]	Ratings	Efficiency	Voltage - Output	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Number of Outputs	Topology	Features	Approval Agency	Voltage - Output [Max]	Voltage - Output [Min]
Thomas Research Products LED50W-024	Chassis Mount	50 W	Wire Leads	305 VAC	IP66	87 %	24 V	Constant Voltage	-30 ░C	65 °C	2.1 A	25 mm	194 mm	7.64 in	43 mm	1.69 "	0.98 in	90 VAC	1	AC DC Converter	OCP OVP SCP	CE cULus
Thomas Research Products LED50W-012-C4200	Chassis Mount	50 W	Wire Leads	305 VAC	IP66	84 %		Constant Current	-30 ░C	60 °C	4.2 A	25 mm	194 mm	7.64 in	43 mm	1.69 "	0.98 in	90 VAC	1	AC DC Converter	OCP OVP SCP	CE cULus	12 V	6 V
Thomas Research Products LED50W-029	Chassis Mount	50 W	Wire Leads	305 VAC	IP66	87 %	29 V	Constant Voltage	-30 ░C	60 °C	1.75 A	25 mm	194 mm	7.64 in	43 mm	1.69 "	0.98 in	90 VAC	1	AC DC Converter	OCP OVP SCP	CE cULus
