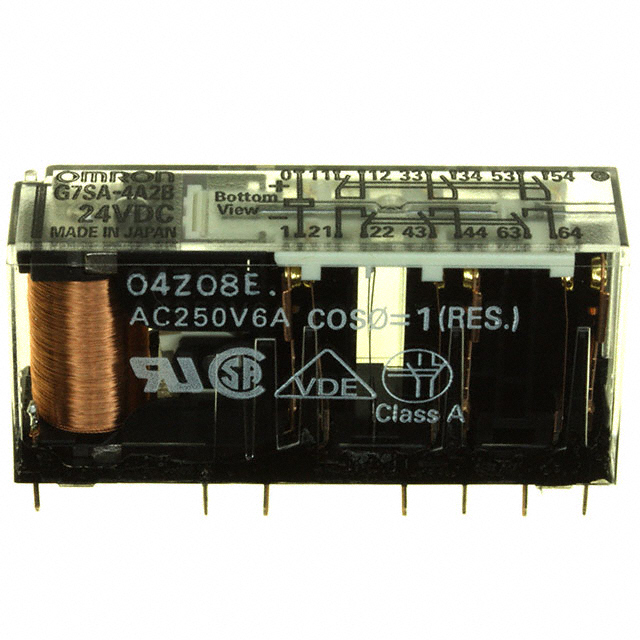

G7SA-4A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY SAFETY 6PST 6A 110V
| Part | Features | Mounting Type | Contact Rating (Current) | Coil Current | Release Time | Operate Time | Contact Form | Must Operate Voltage | Contact Material | Coil Resistance | Coil Power | Termination Style | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Sealed - Flux Protection | Socketable Through Hole | 6 A | 5.3 mA | 10 ms | 20 ms | 6PST-4NO/2NC (4 Form A 2 Form B) | 82.5 VDC | Gold (Au) Silver (Ag) | 20.9 kOhms | 580 mW | PC Pin Plug In | 110 VDC | 85 °C | -40 °C | 11 VDC | 125 VDC 250 VAC |
 Omron Electronics Inc-EMC Div | Sealed - Flux Protection | Socketable Through Hole | 6 A | 20.8 mA | 10 ms | 20 ms | 6PST-4NO/2NC (4 Form A 2 Form B) | 18 VDC | Gold (Au) Silver (Ag) | 1.15 kOhms | PC Pin Plug In | 24 VDC | 85 °C | -40 °C | 2.4 VDC | 125 VDC 250 VAC | |
 Omron Electronics Inc-EMC Div | Sealed - Flux Protection | Socketable Through Hole | 6 A | 41.7 mA | 10 ms | 20 ms | 6PST-4NO/2NC (4 Form A 2 Form B) | 9 VDC | Gold (Au) Silver (Ag) | 288 Ohms | PC Pin Plug In | 12 VDC | 85 °C | -40 °C | 1.2 VDC | 125 VDC 250 VAC |
