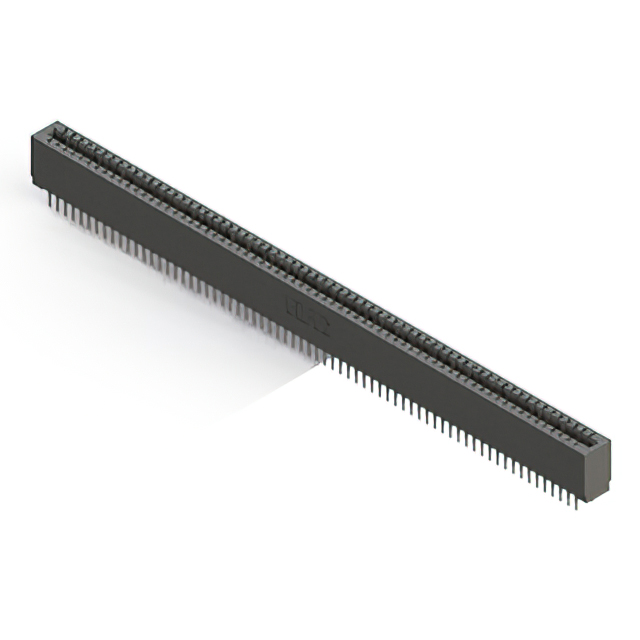

725-136 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 136POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Gender | Read Out | Number of Positions/Bay/Row | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Card Type | Contact Material | Number of Rows [custom] | Contact Type | Color | Termination | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | Dual | 68 | 136 | -40 C | 105 ░C | Through Hole | Non Specified - Dual Edge | Copper Alloy | 2 | Cantilever | Black | Press-Fit | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 30 Áin | 0.76 Ám | 0.1 " | 2.54 mm |
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | Dual | 68 | 136 | -40 C | 105 ░C | Through Hole | Non Specified - Dual Edge | Copper Alloy | 2 | Cantilever | Black | Press-Fit Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 30 Áin | 0.76 Ám | 0.1 " | 2.54 mm |
