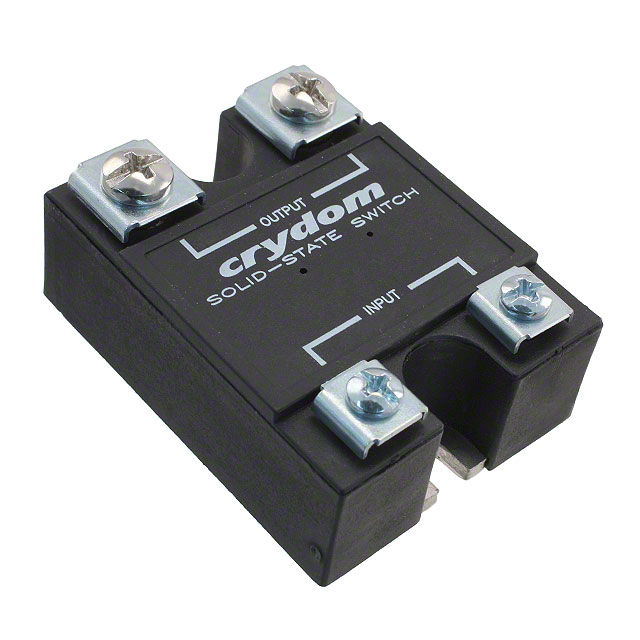

LVD75C Series

Catalog

SSR RELAY SPST-NO 60A 3-75V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Output Type	Load Current	On-State Resistance (Max) [Max]	Package / Case	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Max]	Voltage - Load [Min]
Sensata-Crydom LVD75C60H	12.5 VDC	12 V	DC	60 A	10 mOhms	Hockey Puck	Screw Terminal	Chassis Mount	80 °C	-30 ░C	75 V	3 V
Sensata-Crydom LVD75C60	12.5 VDC	12 V	DC	60 A	10 mOhms	Hockey Puck	Screw Terminal	Chassis Mount	80 °C	-30 ░C	75 V	3 V
Sensata-Crydom LVD75C100	12.5 VDC	12 V	DC	100 A	5 mOhms	Hockey Puck	Screw Terminal	Chassis Mount	80 °C	-30 ░C	75 V	3 V
Sensata-Crydom LVD75C80H	12.5 VDC	12 V	DC	80 A	8 mOhms	Hockey Puck	Screw Terminal	Chassis Mount	80 °C	-30 ░C	75 V	3 V
Sensata-Crydom LVD75C100H	12.5 VDC	12 V	DC	100 A	5 mOhms	Hockey Puck	Screw Terminal	Chassis Mount	80 °C	-30 ░C	75 V	3 V
