E2EW-X5 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

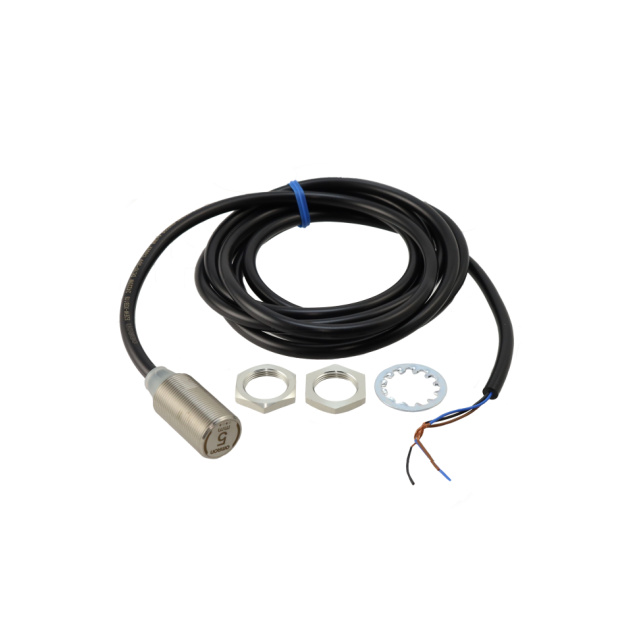

SENSOR PROX INDUCTIVE 5MM CYLIND
| Part | Ingress Protection | Material - Body | Indicator [custom] | Termination Style | Sensing Distance | Sensing Distance | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Shielding | Sensor Type | Output Type | Response Frequency | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | IP67 | Stainless Steel | LED | Cable Leads | 0.197 in | 5 mm | 0 °C | 85 °C | Cylinder Threaded - M18 | Shielded | Inductive | PNP-NO 3-Wire | 80 Hz | 30 VDC | 10 VDC |
Omron Electronics Inc-EMC Div | IP67 | Stainless Steel | LED | Cable Leads | 0.197 in | 5 mm | 0 °C | 85 °C | Cylinder Threaded - M18 | Shielded | Inductive | 3-Wire NPN-NC/NO | 80 Hz | 30 VDC | 10 VDC |

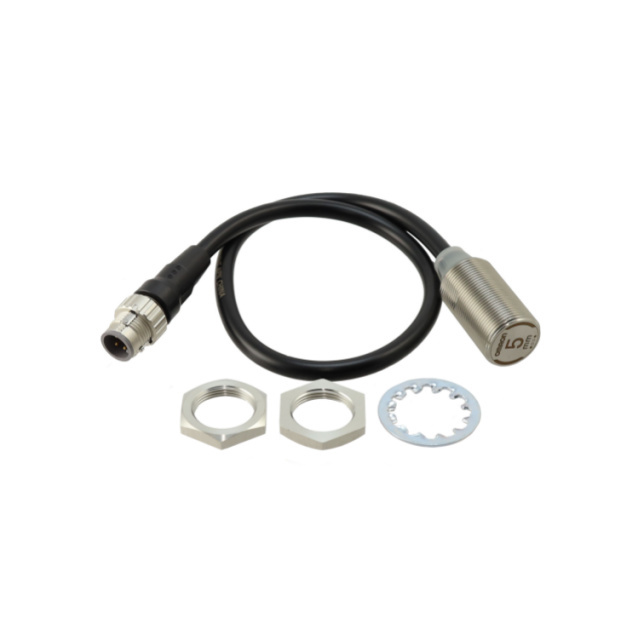

 Omron Electronics Inc-EMC Div | IP67 | Stainless Steel | LED | Cable with Connector | 0.197 in | 5 mm | 0 °C | 85 °C | Cylinder Threaded - M18 | Shielded | Inductive | NPN-NO 3-Wire | 80 Hz | 30 VDC | 10 VDC |
Omron Electronics Inc-EMC Div | IP67 | Stainless Steel | LED | Cable Leads | 0.197 in | 5 mm | 0 °C | 85 °C | Cylinder Threaded - M18 | Shielded | Inductive | NPN-NC 3-Wire | 80 Hz | 30 VDC | 10 VDC |
 Omron Electronics Inc-EMC Div | IP67 | Stainless Steel | LED | Cable with Connector | 0.197 in | 5 mm | 0 °C | 85 °C | Cylinder Threaded - M18 | Shielded | Inductive | PNP-NO 3-Wire | 80 Hz | 30 VDC | 10 VDC |
Omron Electronics Inc-EMC Div | IP67 | Stainless Steel | LED | Cable Leads | 0.197 in | 5 mm | 0 °C | 85 °C | Cylinder Threaded - M18 | Shielded | Inductive | PNP-NC 3-Wire | 80 Hz | 30 VDC | 10 VDC |
Omron Electronics Inc-EMC Div | IP67 | Stainless Steel | LED | Cable Leads | 0.197 in | 5 mm | 0 °C | 85 °C | Cylinder Threaded - M18 | Shielded | Inductive | PNP-NC/NO 3-Wire | 80 Hz | 30 VDC | 10 VDC |
Omron Electronics Inc-EMC Div | IP67 | Stainless Steel | LED | Cable Leads | 0.197 in | 5 mm | 0 °C | 85 °C | Cylinder Threaded - M18 | Shielded | Inductive | PNP-NC 3-Wire | 80 Hz | 30 VDC | 10 VDC |
Omron Electronics Inc-EMC Div | IP67 | Stainless Steel | LED | Cable with Connector | 0.197 in | 5 mm | 0 °C | 85 °C | Cylinder Threaded - M18 | Shielded | Inductive | NPN-NC 3-Wire | 80 Hz | 30 VDC | 10 VDC |
Omron Electronics Inc-EMC Div | IP67 | Stainless Steel | LED | Cable Leads | 0.197 in | 5 mm | 0 °C | 85 °C | Cylinder Threaded - M18 | Shielded | Inductive | NPN-NC 3-Wire | 80 Hz | 30 VDC | 10 VDC |
