CPT4B48 Series

Catalog

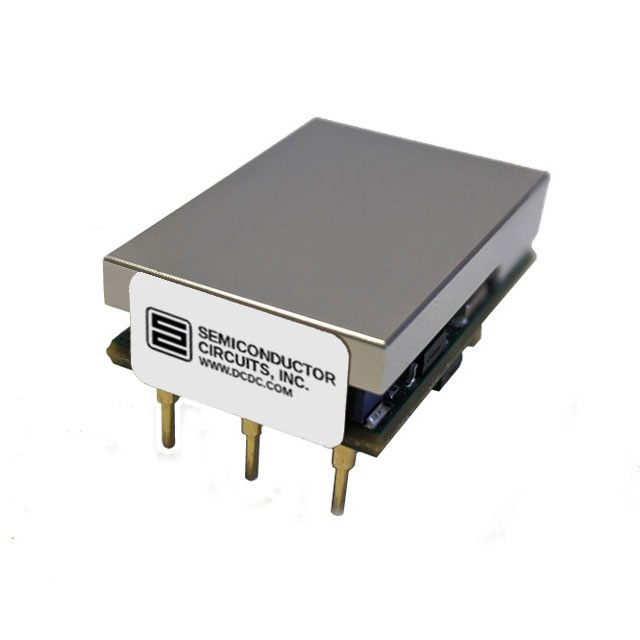

DC DC CONVERTER 12V 50W

Part	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power (Watts)	Current - Output (Max) [Max]	Mounting Type	Applications	Type	Supplier Device Package	Features	Voltage - Input (Max) [Max]	Approval Agency	Package / Case	Control Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
Semiconductor Circuits, Inc. CPT4B48N	1	36 V	12 V	-40 °C	85 °C	93 %	2250 VDC	22.9 mm	9.5 mm	0.37 in	0.9 in	1.3 in	33 mm	50 W	4.2 A	Through Hole	ITE (Commercial)	Isolated Module	Sixteenth Brick	Adjustable Output Remote On/Off Remote Sense	75 V	CSA TUV UL	Sixteenth Brick	Active Low Enable
Semiconductor Circuits, Inc. CPT4B48NB	1	36 V	12 V	-40 °C	85 °C	93 %	2250 VDC	22.9 mm					1.3 in	50 W	4.2 A	Through Hole	ITE (Commercial)	Isolated Module	Sixteenth Brick	Adjustable Output Baseplate Remote On/Off Remote Sense	75 V	CSA TUV UL	Sixteenth Brick	Active Low Enable	12.7 mm	22.86 mm	12.7 mm	33 mm
Semiconductor Circuits, Inc. CPT4B48P	1	36 V	12 V	-40 °C	85 °C	93 %	2250 VDC	22.9 mm	9.5 mm	0.37 in	0.9 in	1.3 in	33 mm	50 W	4.2 A	Through Hole	ITE (Commercial)	Isolated Module	Sixteenth Brick	Adjustable Output Remote On/Off Remote Sense	75 V	CSA TUV UL	Sixteenth Brick	Active High Enable
