UB25NBK Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON DPDT 5A 125V
| Part | Mechanical Life | Electrical Life | Voltage Rating - DC | Switch Function | Termination Style | Voltage Rating - AC | Circuit | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Type | Features | Actuator Marking | Color - Actuator/Cap | Mounting Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Type | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

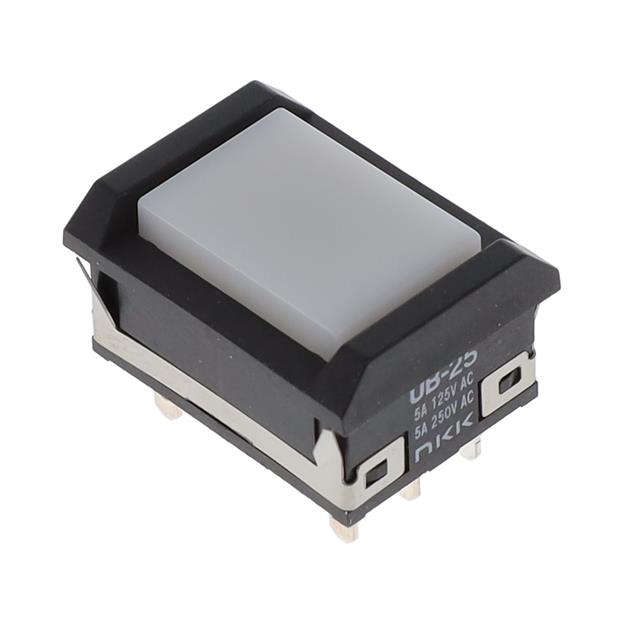

 NKK Switches | 1000000 Cycles | 10000 Cycles | 30 V | On-Mom | Solder Lug | 125 V | DPDT | 5 A | -20 ░C | 70 °C | Standard | With Barrier | No Marking | White | Panel Mount Snap-In | 16.2 mm | 22.4 mm | Button Rectangular | ||
 NKK Switches | 1000000 Cycles | 10000 Cycles | 30 V | On-Mom | Solder Lug | 125 V | DPDT | 5 A | -25 °C | 50 °C | Illuminated Standard | With Barrier | No Marking | Clear | Panel Mount Snap-In | 16.2 mm | 22.4 mm | Button Rectangular | 1.85 VDC | LED Red |
NKK Switches | 1000000 Cycles | 10000 Cycles | 30 V | On-Mom | Solder Lug | 125 V | DPDT | 5 A | -25 °C | 50 °C | Illuminated Standard | With Barrier | No Marking | Black | Panel Mount Snap-In | 16.2 mm | 22.4 mm | Button Rectangular | 2.1 VDC | Green LED |
NKK Switches | 1000000 Cycles | 200000 Cycles | 28 V | On-Mom | Solder Lug | 28 V | DPDT | 0.4 VA | -25 °C | 50 °C | Illuminated Standard | With Barrier | No Marking | Clear | Panel Mount Snap-In | 16.2 mm | 22.4 mm | Button Rectangular | 2.1 VDC | Green LED |
NKK Switches | 1000000 Cycles | 200000 Cycles | 28 V | On-Mom | Solder Lug | 28 V | DPDT | 0.4 VA | -20 ░C | 70 °C | Standard | With Barrier | No Marking | Clear | Panel Mount Snap-In | 16.2 mm | 22.4 mm | Button Rectangular | ||
NKK Switches | 1000000 Cycles | 10000 Cycles | 30 V | On-Mom | Solder Lug | 125 V | DPDT | 5 A | -25 °C | 50 °C | Illuminated Standard | With Barrier | No Marking | Clear | Panel Mount Snap-In | 16.2 mm | 22.4 mm | Button Rectangular | 2.1 VDC | Green LED |
 NKK Switches | 1000000 Cycles | 10000 Cycles | 30 V | On-Mom | Solder Lug | 125 V | DPDT | 5 A | -20 ░C | 70 °C | Standard | With Barrier | No Marking | Panel Mount Snap-In | 16.2 mm | 22.4 mm | Plunger for Cap | |||
NKK Switches | 1000000 Cycles | 10000 Cycles | 30 V | On-Mom | Solder Lug | 125 V | DPDT | 5 A | -25 °C | 50 °C | Illuminated Standard | With Barrier | No Marking | Clear | Panel Mount Snap-In | 16.2 mm | 22.4 mm | Button Rectangular | 2 VDC | Amber LED |

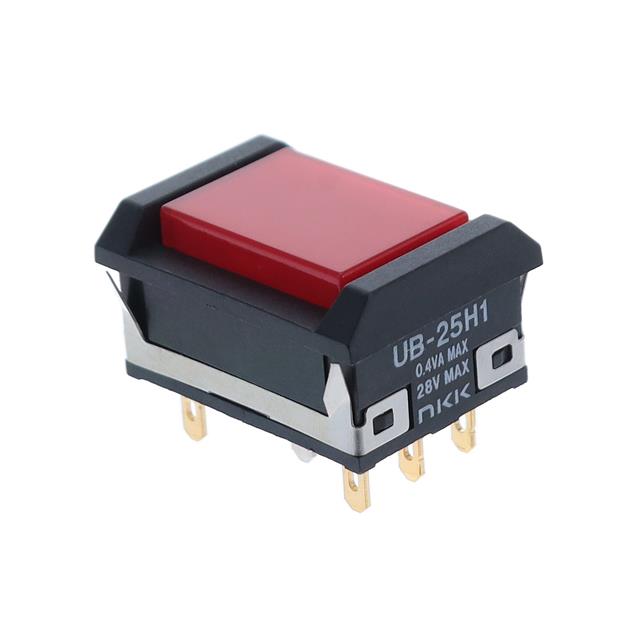

 NKK Switches | 1000000 Cycles | 200000 Cycles | 28 V | On-Mom | Solder Lug | 28 V | DPDT | 0.4 VA | -25 °C | 50 °C | Illuminated Standard | With Barrier | No Marking | Red | Panel Mount Snap-In | 16.2 mm | 22.4 mm | Button Rectangular | 1.85 VDC | LED Red |
NKK Switches | 1000000 Cycles | 200000 Cycles | 28 V | On-Mom | Solder Lug | 28 V | DPDT | 0.4 VA | -20 ░C | 70 °C | Standard | With Barrier | No Marking | Black | Panel Mount Snap-In | 16.2 mm | 22.4 mm | Button Rectangular |
