GBC09D Series

Catalog

CONN HEADER SMD 18POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Mounting Type	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Contact Finish - Mating	Number of Rows [custom]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Color	Current Rating (Amps)	Number of Positions Loaded	Contact Type	Contact Shape	Contact Finish - Post	Style	Material Flammability Rating	Number of Positions	Connector Type	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating	Fastening Type

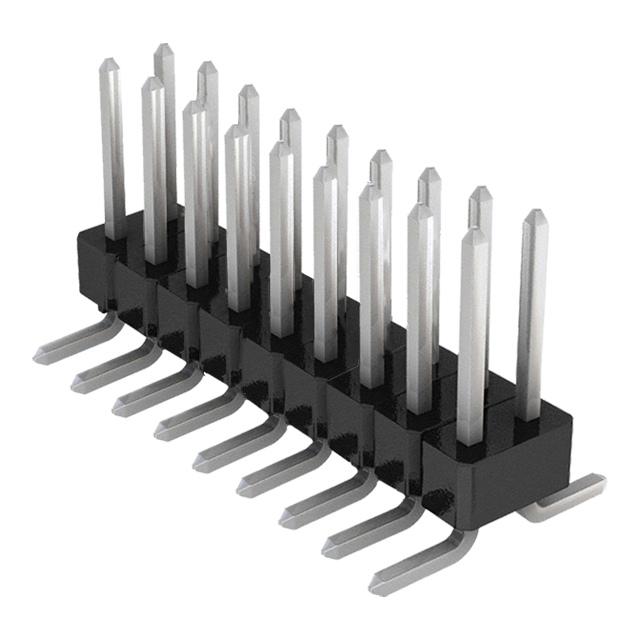

Sullins Connector Solutions GBC09DABN-M30	2.54 µm	100 µin	Nylon 9T Polyamide (PA9T)	Surface Mount	Unshrouded	0.1 in	2.54 mm	Phosphor Bronze	Gold	2	Solder	0.25 µm	10 µin	0.1 "	2.54 mm	Black	3 A	All	Male Pin	Square	Tin	Board to Board Cable	UL94 V-0	18	Header Breakaway	0.1 in	2.54 mm	150 °C	-65 ░C	0.23 in	5.84 mm	Push-Pull
